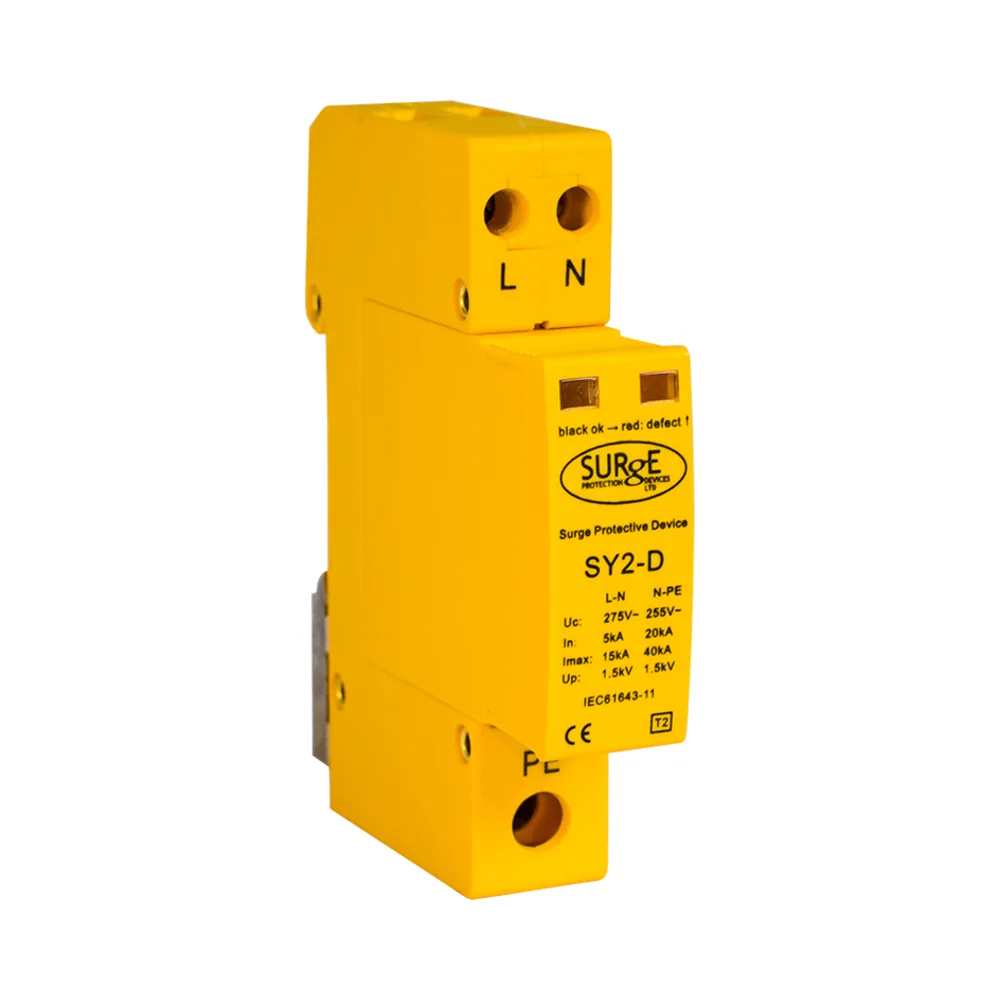

Surge Devices SY2-D Surge Devices Type 2+3 Single Module 2P SPD with Replaceable Modules and Window Indication
Products may differ in size, colour and appearance to those shown. If you require further information please contact us directly.

Surge Devices SY2-D Single Phase Type 2/3 SPD

SKU: SY2-D
Delivery usually within 1-3 working days*
Confirm Availability

Single phase Type 2/3 SPD with pluggable protection modules and window indication. DIN rail mountable, ideal for consumer panels, distribution boards, or integrated switchgear. Protects TN-S, TNC-S, and TT systems from lightning and surge events.

£39.00 + VAT

(incl. VAT £46.80)

Add to quote
Category: Tags: SPD for TN-S System, SPD for TNC-S System, SPD for TT System, Type 2 SPD Brand:

Description

SY2-D Single Phase Surge Protection Device – Type 2/3 SPD for DIN Rail Installation

Compact SPD for TN-S, TNC-S, and TT Systems – DIN Rail Lightning and Surge Arrester

The Surge Devices SY2-D Single Phase Type 2/3 SPD is a single phase Type 2/3 SPD module designed for integration into protected enclosures. Featuring window status indication and pluggable design, it offers fast surge response for residential and commercial TN and TT systems.

Key Features – SY2-D SPD Module

  • Single phase Type 2/3 SPD (L-N, N-PE)
  • DIN rail mountable design
  • Pluggable protection modules
  • Status indication via window (no LED)
  • Compatible with TN-S, TNC-S, and TT systems
  • BS EN 61643-11 compliant

Technical Overview – SY2-D

  • Model: SY2-D
  • Surge Capacity: 20kA (8/20µs)
  • Max Continuous Voltage (Uc): 275V AC
  • Temporary Overvoltage (TOV): 335V / 5s
  • System Type: Single phase (TNC-S, TN-S, TT)
  • Response Time: <25ns
  • Remote Contact: Optional terminal
  • Mounting: DIN rail

What’s Included

  • SY2-D SPD module
  • Status indicator (window)
  • Remote output terminal (optional)

Why Choose This SPD?

The SY2-D offers all the performance of an advanced SPD in a compact DIN module. It’s perfect for custom panels where enclosure is provided separately or integrated into switchgear.

Guarantee & Compliance

  • Made in Europe
  • Compliant with BS EN 61643-11
  • Designed for long operational life and low maintenance

Summary – Single Phase Type 2/3 SPD

The SY2-D delivers fast, pluggable surge protection for single phase installations. A flexible DIN rail SPD designed for control panels, switchboards, and internal installs.

SY2-D – Single Phase Type 2/3 SPD Module (No Enclosure)

The SY2-D is a DIN rail mountable Type 2/3 SPD module with pluggable surge cartridges and status window. Ideal for integration into internal panels or distribution boards without the need for external housing.

Need an enclosure? Choose SY2-D/ENC. For a complete breaker-protected solution, go to SY2-D/ENCM. See also the enhanced model: 381649S.

Downloads

View Product Data Sheet Surge Devices Brochure

Additional information

Brand

Surge Devices
Product

SPD – Surge Protection
Discharge Capacity

20kA / 40kA
Voltage

230V
Earthing System

TT, TN-S, TN-C-S
No of Poles

2P
Type of SPD

2 & 3
