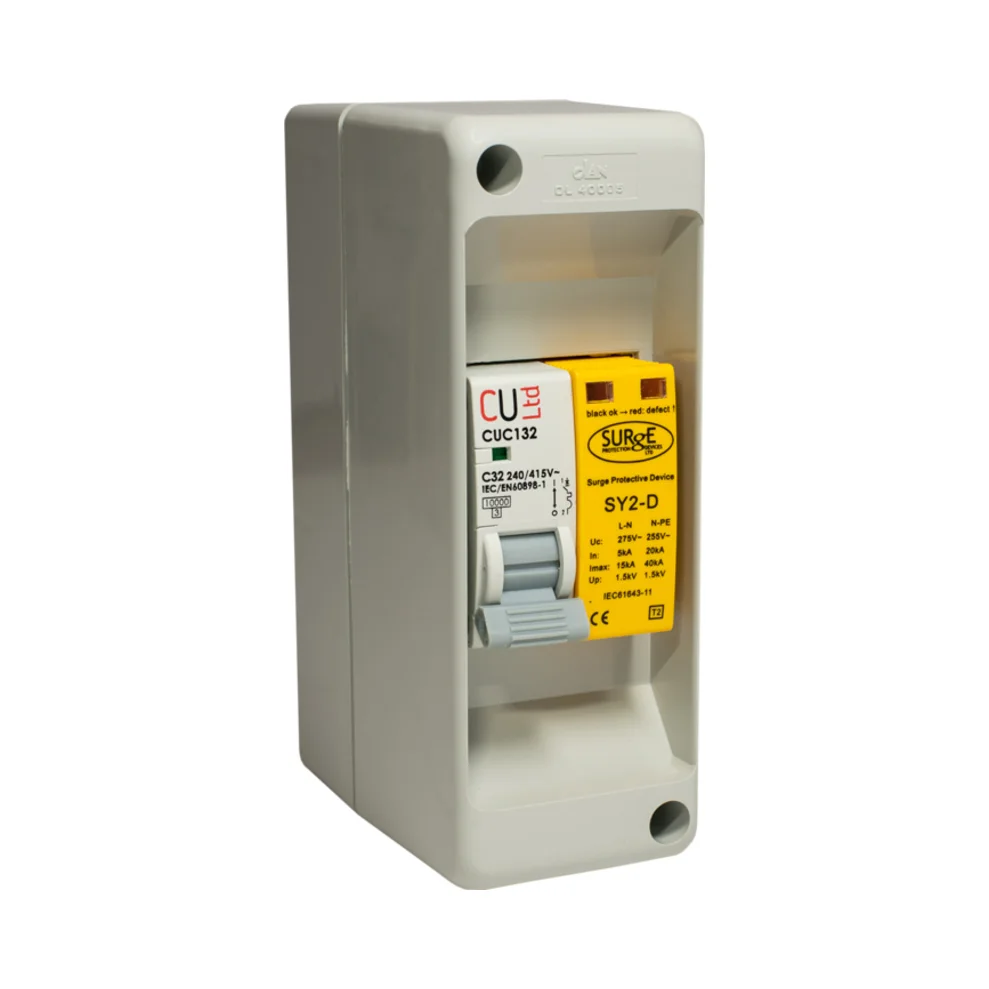

SY2-D/ENCM Single Phase SPD Kit – Type 2/3 Surge Protection with 32A MCB & Enclosure
Complete Enclosed SPD Solution – Type 2/3 Arrester with Breaker for TN & TT Systems
The SY2-D/ENCM is a comprehensive single phase surge protection kit combining a pluggable Type 2/3 SPD and a 32A MCB in a polycarbonate enclosure. Designed for TN-S, TNC-S, and TT installations, it’s ideal for fast and secure external mounting.
Key Features – SY2-D/ENCM SPD Kit
- Single phase Type 2/3 SPD with 32A circuit breaker
- Window indication for surge protection status
- Pluggable modules for quick and easy servicing
- DIN rail mounting with integrated breaker
- Protects TN-S, TNC-S, and TT systems
- Complies with BS EN 61643-11
Technical Overview – SY2-D/ENCM SPD Kit
- Model: SY2-D/ENCM
- Surge Capacity: 20kA (8/20µs)
- Max Continuous Operating Voltage (Uc): 275V AC
- Temporary Overvoltage (TOV): 335V / 5s
- Pre-fitted MCB: 32A
- Mounting: DIN rail inside enclosure
- System Compatibility: TN-S, TNC-S, TT
What’s Included – Surge Devices SY2-D/ENCM Single Phase SPD
- SY2-D SPD module (pluggable)
- 32A MCB
- Polycarbonate enclosure
- Status window indicator
Why Choose This SPD Kit?
This all-in-one SPD kit simplifies installation with a pre-fitted breaker and protective housing. Designed for outdoor boards, EV charging circuits, or panels requiring built-in circuit isolation with visual surge status indication.
Guarantee & Compliance
- Manufactured in Europe
- Conforms to BS EN 61643-11
- Engineered for long life and minimal maintenance
Summary – Surge Devices SY2-D/ENCM Single Phase SPD
The SY2-D/ENCM is a full surge protection solution for single phase systems. It combines SPD and breaker in one enclosure for rapid, code-compliant installs in any environment.
SY2-D/ENCM – SPD with 32A MCB in IP65 Enclosure
The SY2-D/ENCM is a complete SPD kit with 32A MCB and window indicator in a enclosure. Ideal for EV charging points, garages, and external boards needing both surge protection and circuit isolation.
Don’t need a breaker? Choose SY2-D/ENC. Installing internally? Go to SY2-D.
