Description

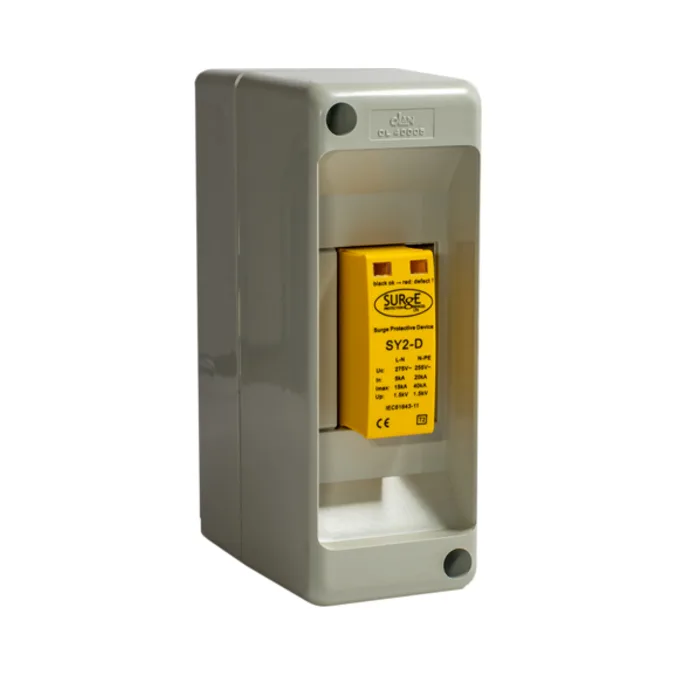

SY2-D/ENC Single Phase Surge Protection Device – Type 2/3 SPD in IP65 Enclosure
DIN Rail SPD for TN-S, TNC-S & TT Systems – Enclosed Surge Arrester with Window Indicator
The SY2-D/ENC is a ready-to-mount single phase SPD kit enclosed in a sealed IP-rated polycarbonate box. Featuring window indication and pluggable surge modules, it’s ideal for TN-S, TNC-S, and TT installations where external protection is required.
Key Features – SY2-D/ENC SPD Kit
- Single phase Type 2/3 SPD (L-N, N-PE)
- DIN rail mounting inside pre-wired IP enclosure
- Window status indicator for quick visual checks
- Pluggable protection modules for easy replacement
- Works with TN-S, TNC-S, and TT systems
- IP65-rated polycarbonate housing – dust and splash-proof
- BS EN 61643-11 compliant
Technical Overview – SY2-D/ENC SPD Kit
- Model: SY2-D/ENC
- Surge Capacity: 20kA (8/20µs)
- Uc (Max Voltage): 275V AC
- TOV (Temporary Overvoltage): 335V / 5s
- Response Time: <25ns
- Mounting: DIN rail inside pre-installed IP box
- System: TN-S, TNC-S, TT (Single Phase)
What’s Included – Type 2/3 SPD
- SY2-D SPD module
- IP65 polycarbonate enclosure (factory wired)
- Window status indicator
Why Choose This Product?
The SY2-D/ENC is a plug-and-play surge protection kit for single phase systems. Its robust enclosure is perfect for exposed locations like EV charge points or garages, with window status for effortless inspection.
Guarantee & Compliance
- Manufactured in Europe
- Complies with BS EN 61643-11
- High-reliability components for extended life
Summary – Single Phase Type 2/3 SPD in Enclosure
The SY2-D/ENC is a single phase Type 2/3 SPD in a sealed enclosure, offering reliable surge protection for TN-S, TNC-S, and TT installations. Ideal for fast-fit, weatherproof installs in residential, commercial, and industrial settings.
SY2-D/ENC – SPD in IP65 Enclosure
The SY2-D/ENC features the same surge protection device, pre-mounted in a tough IP65 polycarbonate enclosure. Designed for fast installation in external or exposed locations where housing is required.
Need a version with integrated breaker? See SY2-D/ENCM. Need a ASPD module only? Use SY2-D.
