Surge Devices SY2-C40XLED Surge Devices Type 2 20kA/40kA 3 Phase SPD with LED Indication
Products may differ in size, colour and appearance to those shown. If you require further information please contact us directly.

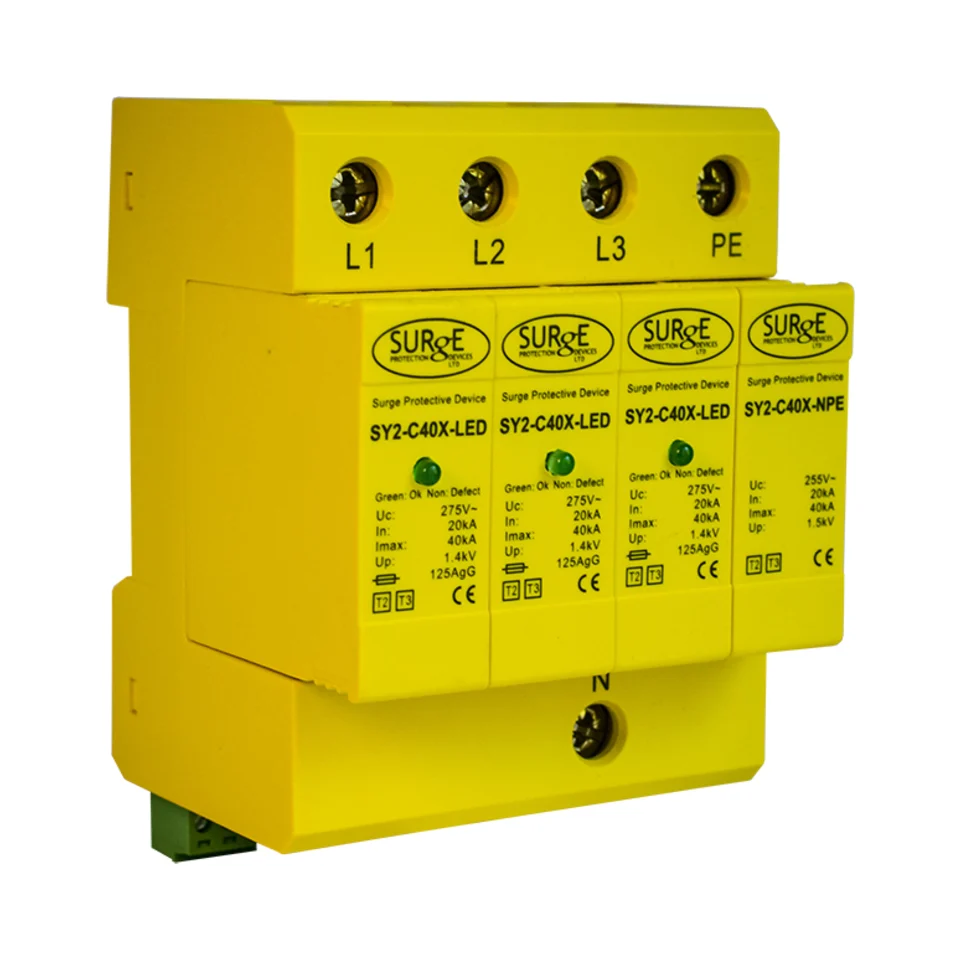

Surge Devices SY2-C40XLED Type 2+3 Three Phase SPD with LED Indication

SKU: SY2-C40XLED
Delivery usually within 1-3 working days*
Confirm Availability

Suitable for TNC-S and TN-S installations.

Fully compliant to BSEN62305, BS61643-11 & BS7671.

Pluggable replacement modules.

Visual indication of status (LED’S).

Connect in parallel, meaning no current limitations.

Type 2+3 SPD for three-phase panels. Includes pluggable modules, LED indication, and a remote alarm contact. DIN-rail mountable and ideal for integration inside control boards for TNC-S, TN-S, or TT systems. No enclosure included.

£141.00 + VAT

(incl. VAT £169.20)

Add to quote
Category: Tags: 3 Phase SPDs for Distribution Boards and Commercial Use, Commercial Distribution, Industrial Distribution, SPD for TN-S System, SPD for TNC-S System, SPD Surge Protection with LED Indicator Brand:

Description

SY2-C40XLED Type 2+3 Three Phase SPD with LED Indication

DIN-Rail Mounted SPD – Type 2+3 Protection with Pluggable Modules & Remote Contact

The SY2-C40XLED is a high-performance Type 2+3 SPD rated for three-phase TNC-S, TN-S, or TT installations. It includes pluggable replacement modules, LED status indication, and remote alarm contacts. Designed for DIN rail mounting inside control panels or consumer units.

Key Features – SY2-C40XLED

  • Type 2+3 SPD with pluggable protection modules
  • LED indication for easy condition checks
  • Remote changeover contact for alarms or BMS
  • 32A surge handling (recommended fuse/MCB)
  • Response time: <25ns
  • Voltage protection level: <1.3kV
  • DIN rail mountable
  • Complies with BS EN 61643-11

Technical Overview – SY2-C40XLED

  • Model: SY2-C40XLED
  • Configuration: SPD only, no enclosure
  • Backup protection: 32A MCB recommended
  • Remote signalling: Changeover contact
  • Minimum cable size: 6mm²

What’s Included

  • SY2-C40XLED SPD unit
  • LED indicator and remote contact terminal

Why Choose This Product?

Perfect for panel integration, the SY2-C40XLED gives you LED status, BMS remote output, and fast pluggable module replacement. A reliable SPD for applications where external enclosures are already in place.

Guarantee & Compliance – Type 2 3 Phase SPD with LED

  • Made in Europe
  • BS EN 61643-11 compliant
  • Designed for longevity

Summary – Type 2 3 Phase SPD

A compact Type 2+3 SPD module with LED indication and remote contact, ideal for single-phase installations in TT, TNC-S, or TN-S systems. Built for DIN-rail setups where integrated surge protection is needed.

Y2-C40XLED – SPD Module Only

The SY2-C40XLED is a compact, DIN rail-mounted Type 2+3 SPD with LED indication, pluggable modules, and a remote signal contact. Ideal for internal panels and boards where enclosure protection is already provided.

Need a weatherproof version? See SY2-C40XLED/ENC. Want circuit protection included? View SY2-C40XLED/ENCM.

Downloads

View Product Data Sheet Surge Devices Brochure

Additional information

Discharge Capacity

20kA / 40kA
