Surge Devices SY2-C40XLEDENCM Surge Devices Type 2 20kA/40kA 3 Phase SPD with LED Indication & 3P 32A MCB in IP65 Polycarbonate Enclosure
Products may differ in size, colour and appearance to those shown. If you require further information please contact us directly.

Surge Devices SY2-C40XLED/ENCM Type 2+3 Three Phase SPD in Enclosure with MCB

SKU: SY2-C40XLEDENCM
Delivery usually within 1-3 working days*
Confirm Availability

All-in-one SPD kit with LED status, remote alarm contact, and 32A MCB. Pre-wired in a weatherproof IP65 enclosure, it simplifies three-phase surge protection for TN-S, TT, or TNC-S systems in outdoor or industrial installations.

£183.00 + VAT

(incl. VAT £219.60)

Add to quote
Category: Tags: Commercial Distribution, Industrial Distribution, SPD for TN-S System, SPD for TNC-S System, SPD Surge Protection with LED Indicator Brand:

Description

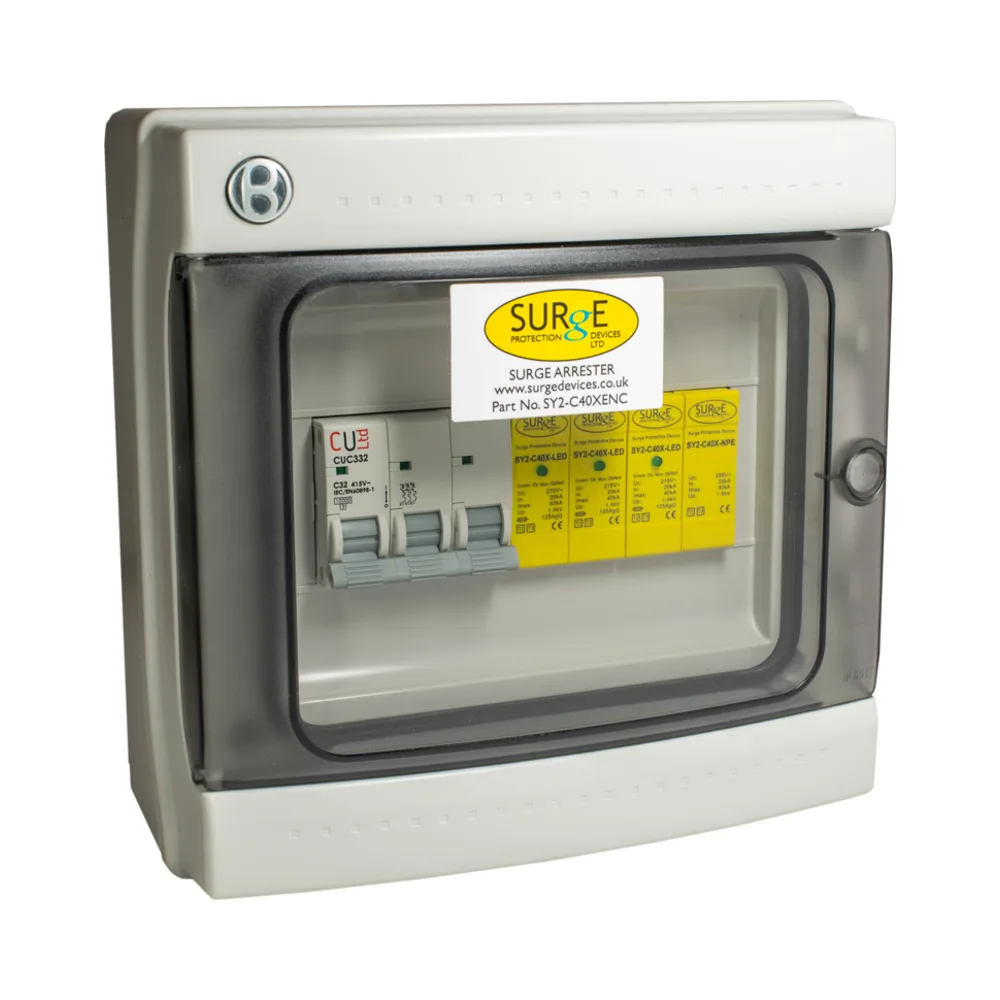

SY2-C40XLED/ENCM Type 2+3 Three Phase SPD with 32A MCB & IP65 Enclosure

Complete Type 2+3 Surge Protection Kit – Enclosed SPD with Breaker and Monitoring

The SY2-C40XLED/ENCM combines a high-performance Type 2+3 SPD and a factory-fitted 32A MCB, pre-installed in a robust IP65 polycarbonate enclosure. It offers pluggable surge modules, LED status indication, and a remote alarm contact, simplifying compliant installs in TN-S, TT, and TNC-S systems.

Key Features – SY2-C40XLED/ENCM SPD Kit

  • Type 2+3 SPD with pluggable surge modules
  • 32A MCB included and pre-wired
  • IP65 polycarbonate enclosure for indoor or outdoor use
  • LED visual status indicator
  • Remote alarm output contact
  • DIN rail mounted inside the enclosure
  • Fast response time: <25ns
  • Let-through voltage: <1.3kV
  • Supports TN-S, TNC-S, and TT systems
  • Complies with BS EN 61643-11

Technical Overview – SY2-C40XLED/ENCM

  • Model: SY2-C40XLED/ENCM
  • Surge Capacity: Type 2+3
  • Included Breaker: 32A MCB
  • Remote Contact: Changeover
  • Response Time: <25ns
  • Voltage Protection Level: <1.3kV
  • Max Operating Voltage: 275V AC
  • Enclosure: IP65-rated polycarbonate
  • Cable Size: ≥6mm²

What’s Included – Enclosed SPD with MCB

  • SY2-C40XLED SPD module
  • 32A MCB (pre-installed)
  • Pre-wired IP65 enclosure
  • LED status window
  • Remote alarm terminals

Why Choose This Product?

This all-in-one SPD kit speeds up compliant installations by including the 32A MCB and pre-wiring everything into a sealed IP65 housing. Ideal for electricians needing fast surge protection for EV points, switchboards, or outdoor circuits.

Guarantee & Compliance

  • Made in Europe
  • BS EN 61643-11 compliant
  • Supports over 100,000 hours of operation
  • Backed by Surge Devices’ technical support

Summary

The SY2-C40XLED/ENCM offers full-featured Type 2+3 surge protection with LED status, alarm contact, and a 32A breaker. Ready to mount in an IP65 enclosure, it’s designed for fast deployment in residential, industrial, or EV supply setups.

SY2-C40XLED/ENCM – SPD Kit with 32A MCB

The SY2-C40XLED/ENCM combines the SPD and a 32A MCB in a pre-wired IP65 enclosure. It’s a fast-install solution for TN-S, TNC-S, or TT systems where full protection and isolation are needed in a single unit.

Need the enclosed version without MCB? See SY2-C40XLED/ENC. For panel integration only, choose SY2-C40XLED.

Downloads

View Product Data Sheet Surge Devices Brochure

Additional information

Discharge Capacity

20kA / 40kA
Features

With Enclosure
