Surge Devices SY2-C40XLEDENC Surge Devices Type 2 20kA/40kA 3 Phase SPD with LED Indication in IP65 Polycarbonate Enclosure
Products may differ in size, colour and appearance to those shown. If you require further information please contact us directly.

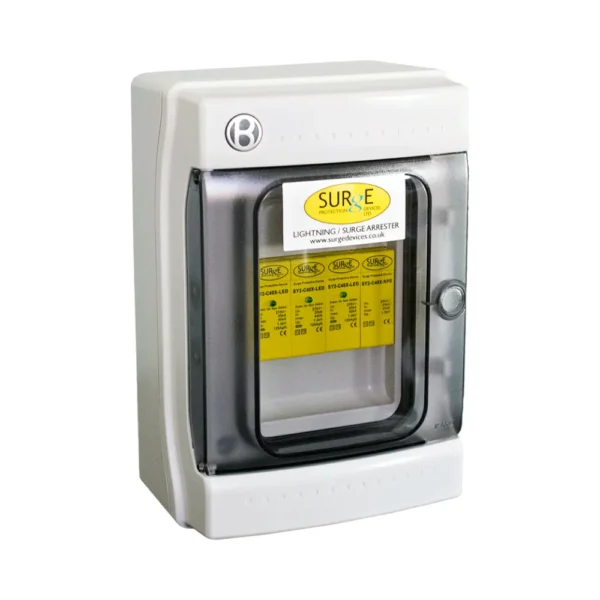

Surge Devices SY2-C40XLED/ENC Type 2+3 Three Phase SPD in IP65 Polycarbonate Enclosure

SKU: SY2-C40XLEDENC
Delivery usually within 1-3 working days*
Confirm Availability

Type 2+3 Three Phase SPD with LED status and remote alarm contact, pre-installed in an IP65 polycarbonate enclosure. Features pluggable modules and fast DIN mounting. Ideal for TN-S, TNC-S, or TT installations in outdoor or industrial settings.

£162.00 + VAT

(incl. VAT £194.40)

Add to quote
Category: Tags: 3 Phase SPDs for Distribution Boards and Commercial Use, Commercial Distribution, Industrial Distribution, SPD for TN-S System, SPD for TNC-S System, SPD Surge Protection with LED Indicator Brand:

Description

SY2-C40XLED/ENC Type 2+3 Three Phase SPD in IP65 Polycarbonate Enclosure

Enclosed Type 2+3 SPD – Pluggable Module with LED Status and Remote Alarm Contact

The 3 Phase SPD with LED in Enclosure is a Type 2+3 SPD pre-mounted in a tough IP65 polycarbonate enclosure. It provides LED indication, pluggable surge modules, and remote signal contacts for alarms or BMS. Ideal for external or harsh indoor locations using TN-S, TNC-S, or TT systems.

Key Features – SY2-C40XLED/ENC

  • Type 2+3 SPD with LED status and remote signal output
  • Pre-installed in IP65 polycarbonate weatherproof enclosure
  • Pluggable surge protection modules
  • DIN rail mounted internally
  • Fast response time: <25ns
  • Let-through voltage: <1.3kV
  • Supports TN-S, TNC-S, and TT single phase systems
  • Remote changeover contact for alarm or BMS
  • Compliant with BS EN 61643-11

Technical Overview – SY2-C40XLED/ENC

  • Model: SY2-C40XLED/ENC
  • SPD Rating: 32A backup recommended
  • Surge capacity per path: ~20kA nominal
  • Enclosure: IP65 polycarbonate
  • Remote output: Changeover contact
  • Mounting: DIN rail
  • Cable size: ≥6mm²

What’s Included – SPD in Enclosure

  • SY2-C40XLED SPD module
  • IP65-rated enclosure (pre-wired)
  • LED status window and remote terminal

Why Choose This Product?

This enclosed SPD offers fast deployment in weather-exposed or dusty environments. LED indication and remote contact simplify ongoing monitoring, while the compact DIN layout allows easy installation across electrical boards, outbuildings, or EV supply equipment.

Guarantee & Compliance

  • Made in Europe
  • BS EN 61643-11 compliant
  • Built for long life and easy servicing

Summary – 3 Phase SPD with LED in Enclosure

The SY2-C40XLED/ENC is a Type 2+3 surge protector with LED and remote monitoring, housed in a sealed IP65 enclosure. It’s plug-and-play ready for residential or commercial TN-S, TT, or TNC-S systems.

SY2-C40XLED/ENC – SPD in IP65 Enclosure

The SY2-C40XLED/ENC features the same SPD module, pre-installed in a sealed IP65-rated polycarbonate enclosure. Built for outdoor and industrial locations, it includes LED status and remote alarm outputs for real-time monitoring.

Need integrated circuit isolation? Choose SY2-C40XLED/ENCM. Want just the SPD unit? Go to SY2-C40XLED.

Downloads

View Product Data Sheet Surge Devices Brochure

Additional information

Discharge Capacity

20kA / 40kA
Features

With Enclosure
