Description

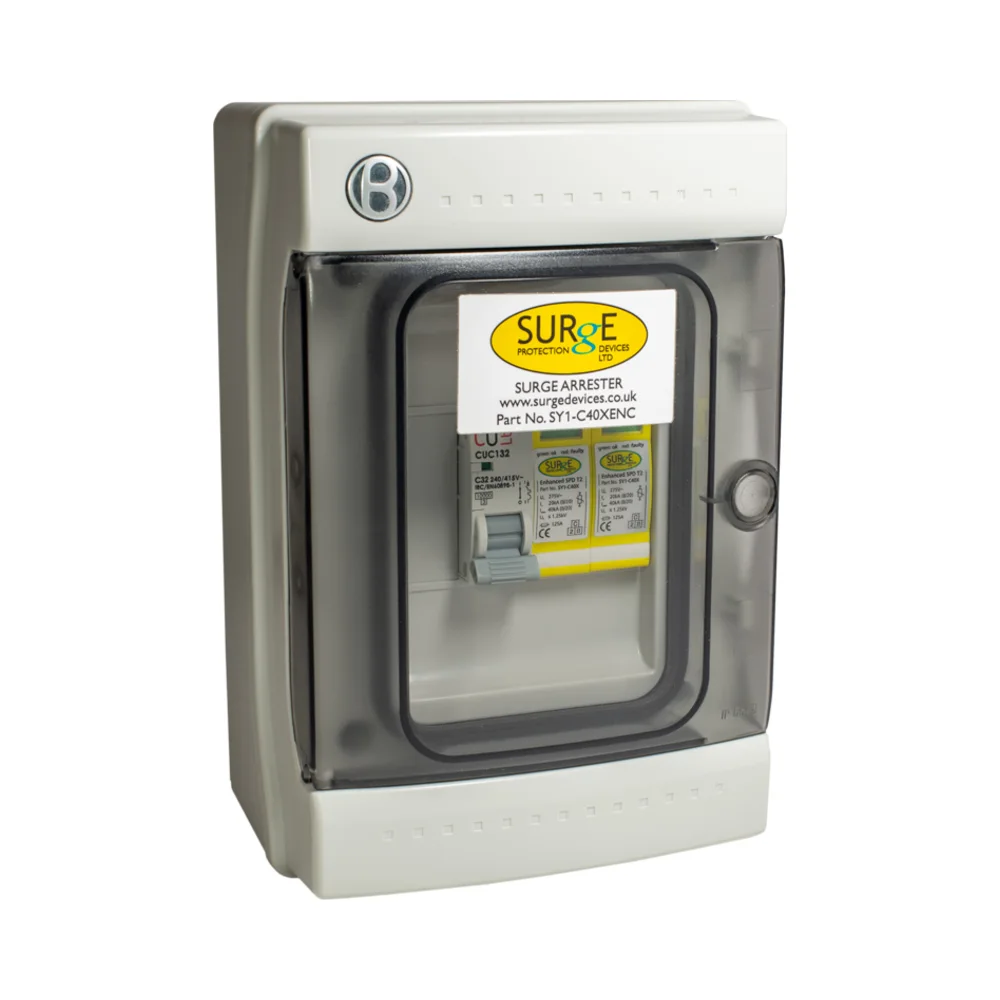

SY1-C40X/ENCM Single Phase Surge Protection Kit – Type 2+3 SPD with 32A MCB & IP65 Enclosure
Complete SPD Kit for TN-S and TNC-S Installations – Surge Arrester with Breaker, Status Window & Remote Contact
The SY1-C40X/ENCM Single Phase Type 2+3 SPD in Enclosure with MCB is a ready-to-install surge protection solution for single phase electrical systems. It combines a Type 2+3 SPD, pre-wired 32A MCB, and remote signal terminal inside a weather-sealed IP65 polycarbonate enclosure with status window display.
Key Features – SY1-C40X/ENCM SPD Kit
- Type 2+3 all-mode surge protection for single phase systems
- Pluggable SPD modules for fast servicing
- Window indication for at-a-glance device status
- Remote output contact for BMS or alarm integration
- Pre-installed 32A MCB for circuit protection
- IP65 polycarbonate enclosure – pre-wired for fast install
- Response time: <25ns
- Let-through voltage: <1.3kV
- Conforms to BS EN 61643-11
Technical Overview – SY1-C40X/ENCM SPD Kit
- Model: SY1-C40X/ENCM
- System Type: Single Phase (TN-S, TNC-S)
- Surge Rating: 20kA (8/20µs waveform)
- Max Operating Voltage (Uc): 275V AC
- Temporary Overvoltage (TOV): 335V / 5s
- MCB Rating: 32A (pre-fitted)
- Remote Contact: Changeover output terminal
- Cable Size: ≥6mm²
- Mounting: DIN rail (pre-mounted)
- Enclosure: IP65 polycarbonate (sealed)
What’s Included – Single Phase SPD Kit with Breaker
- SY1-C40X SPD (pluggable)
- 32A MCB pre-installed
- IP65-rated enclosure (factory wired)
- Remote output terminal
- Status window display (no LED)
Why Choose This SPD Kit?
This all-in-one SPD kit includes everything for surge and overcurrent protection in a single enclosure. It saves time during installation and offers visual and remote system status support — ideal for EV supplies, boards, or external panels.
Guarantee & Compliance
- Manufactured in Europe
- Conforms to BS EN 61643-11
- Modular, replaceable surge components with long life
Summary – Single Phase Type 2+3 SPD in Enclosure with MCB
The SY1-C40X/ENCM is a complete single phase Type 2+3 surge protection kit with a 32A breaker, sealed IP65 enclosure, window status display, and remote signal terminal. Ideal for TNC-S or TN-S installs where full protection is required.
SY1-C40X/ENCM – SPD Kit with 32A MCB & IP65 Enclosure
The SY1-C40X/ENCM is a complete single phase Type 2+3 surge protection kit. It includes a pluggable SPD, pre-fitted 32A MCB, remote contact, and window status — all inside an IP65 enclosure for fast, compliant installations.
Don’t need a breaker? Choose SY1-C40X/ENC. For internal SPD installs only, select SY1-C40X.
