Surge Devices SY1-C40X/ENC Single Phase Type 2+3 SPD in IP65 Enclosure

Description

SY1-C40X/ENC Single Phase Surge Protection Device – Type 2+3 SPD in IP65 Enclosure

Enclosed SPD for TN-S and TNC-S Systems – Type 2+3 Lightning Arrester with Window Status and Remote Alarm

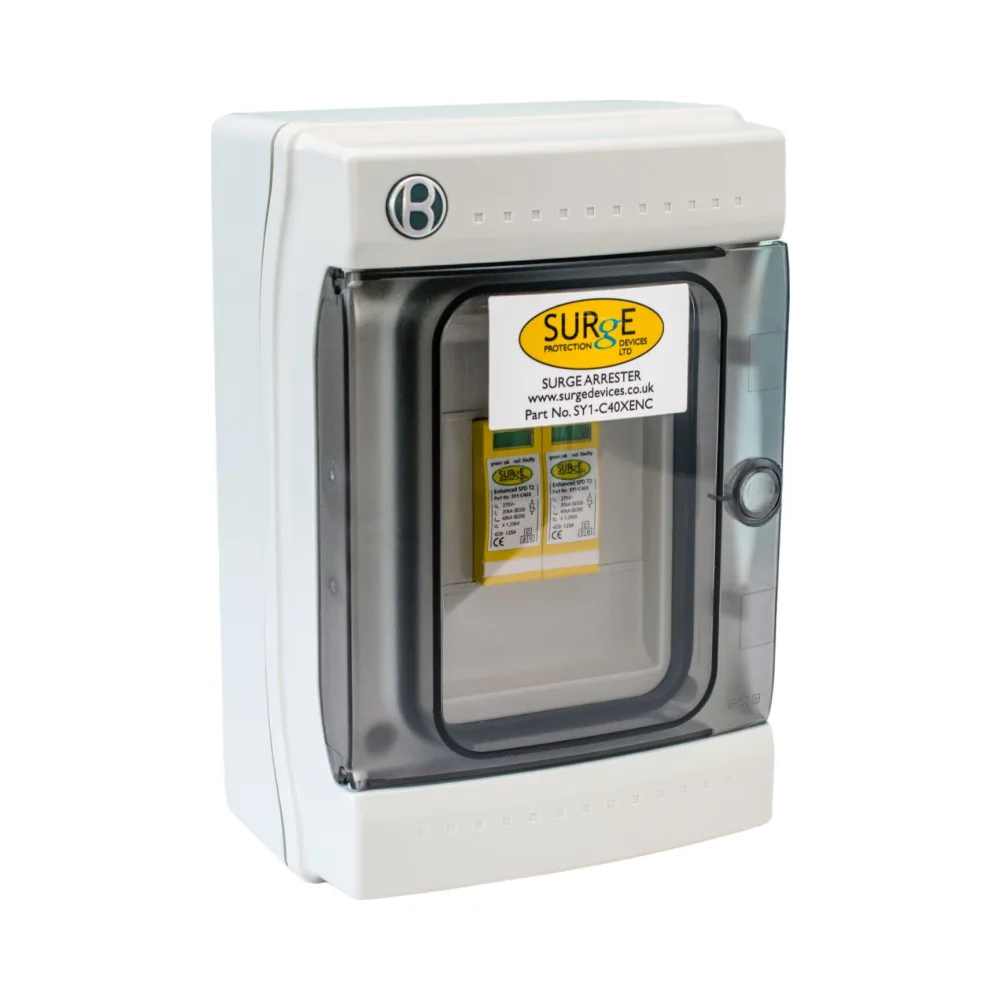

The SY1-C40X/ENC Surge Devices Type 2 Single Phase SPD is a fully enclosed surge protection kit for single phase systems. It includes the SY1-C40X SPD with window status display and a remote signal contact, housed in an IP65-rated polycarbonate enclosure for fast and weatherproof installations.

Key Features – SY1-C40X/ENC SPD Kit

• Single phase Type 2+3 SPD (L-N, N-PE)
• Pluggable protection modules with window status indication
• Remote output contact for monitoring or alarms
• Pre-installed in IP65 polycarbonate enclosure
• DIN rail mountable inside the housing
• Fast response time: <25ns
• Let-through voltage: <1.3kV
• Ideal for EV installations, outbuildings, and switchgear
• Complies with BS EN 61643-11

Technical Overview – SY1-C40X/ENC SPD Kit

• Model: SY1-C40X/ENC
• System: Single Phase – TN-S, TNC-S
• Nominal Discharge: 20kA (8/20µs)
• Max Continuous Operating Voltage: 275V AC
• Temporary Overvoltage (TOV): 335V / 5s
• Response Time: <25ns
• Remote Signalling: Changeover contact
• Recommended MCB: 32A
• Cable Size: ≥6mm²
• Enclosure: IP65-rated polycarbonate

What’s Included – Enclosed SPD Kit

• SY1-C40X SPD module (pluggable)
• IP65 polycarbonate enclosure (pre-wired)
• Remote signal output terminal
• Window status indicator (no LED)

Why Choose This Product?

This kit is perfect for installers needing a ready-made SPD solution. The enclosure simplifies deployment in external or damp locations, while the remote output and window indicator help monitor device status quickly and efficiently.

Guarantee & Compliance – Type 2 Single Phase SPD

• Made in Europe
• Fully compliant with BS EN 61643-11
• Long-life, serviceable surge protection design

Summary – Surge Devices Type 2 Single Phase SPD

The SY1-C40X/ENC is a Type 2+3 single phase SPD with window status and remote signal, housed in a sealed IP65 enclosure. Ideal for fast, durable installs in TN-S and TNC-S electrical systems.

SY1-C40X/ENC – SPD in IP65 Enclosure

The SY1-C40X/ENC includes the same surge protection module pre-mounted in an IP65 polycarbonate enclosure. Ideal for exposed or damp locations such as EV supplies, external boards, and garages.

Want it with a pre-fitted breaker? See SY1-C40X/ENCM. For internal-only installs, go back to SY1-C40X.
