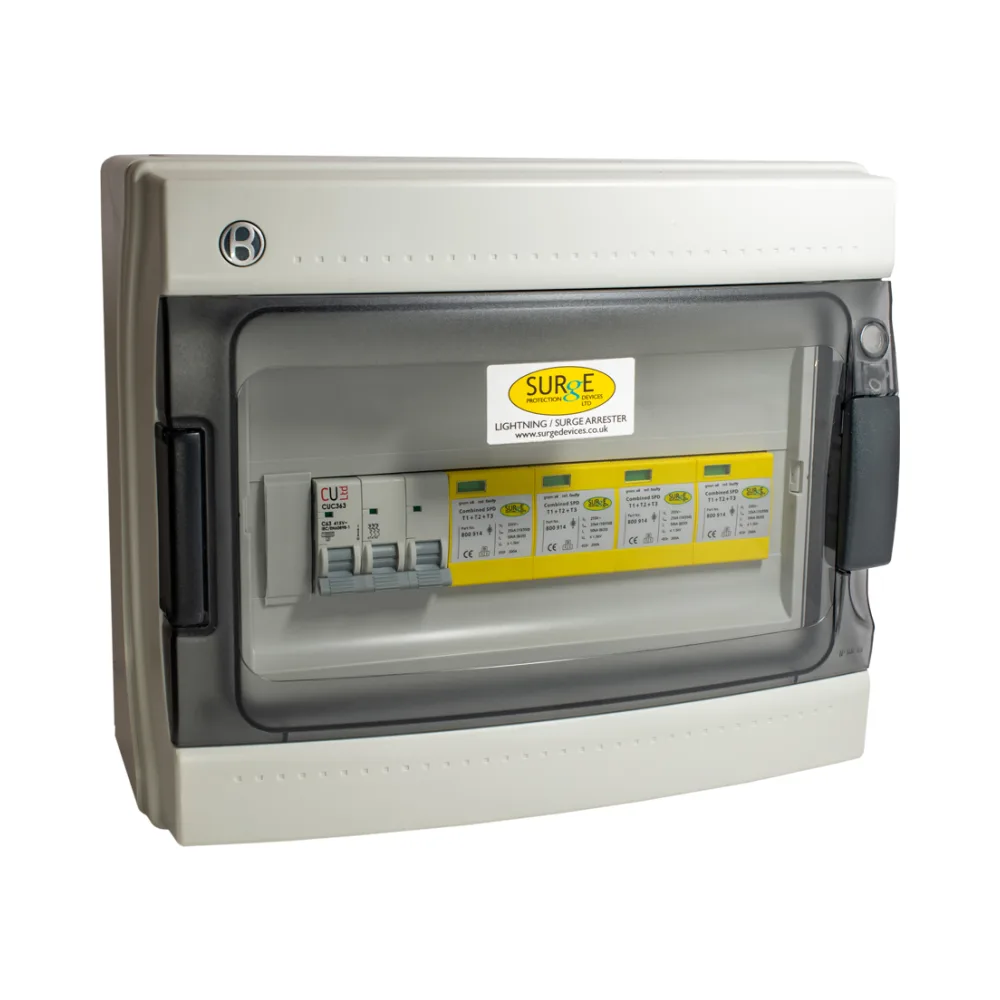

Surge Devices 800914ENCM Type 1+2+3 SPD – 3-Phase Lightning Arrester in IP65 Enclosure with 63A MCB

Description

⚡ 100kA Type 1+2+3 SPD with Window Indicator, Pluggable Modules & MCB for TN-S / TNC-S Systems

Surge Devices 800914ENCM

The Surge Devices 800914ENCM 100kA Type 1+2+3 SPD with Window Indicator  is a 3-phase SPD offering Type 1+2+3 protection for TN-S and TNC-S installations. Designed to handle direct lightning strikes with a 100kA discharge rating, it includes pluggable modules, visual window indication, remote monitoring, and a 63A MCB, all housed in an IP65 polycarbonate enclosure.

It complies with BS EN 62305, BS EN 61643-11, and BS 7671, making it perfect for commercial and industrial surge protection.

🔧 Key Features – 3-Phase SPD for TN-S / TNC-S with Enclosure and Breaker

• Type Classification: Type 1+2+3 SPD
• Earthing Systems: TN-S / TNC-S
• Discharge Capacity:
  • Iimp / In: 25kA / 50kA (10/350μs and 8/20μs)
  • Total Iimp: 100kA (combined across all conductors)
• Voltage Protection Level (Up): ≤1.5kV
• TOV Withstand: 355V / 5 seconds
• Visual Status Window: Easy operational check
• Pluggable Modules: Tool-free maintenance & replacement
• Remote Signalling:
  • Volt-free changeover contacts
  • AC: 250V / 0.5A | DC: 250V/0.1A, 125V/0.2A, 75V/0.5A
• MCB Included: 3P 63A pre-installed
• Enclosure: IP65-rated polycarbonate
• Cable Size: 25–35mm² solid copper
• DIN Rail Mountable: 35mm DIN rail
• Standards:
  • BS EN 62305 (LPL Class I)
  • BS EN 61643-11 (SPD)
  • BS 7671 (Wiring Regs)
  • CE (EMC + LVD)
• Temperature Range: -40°C to +80°C
• Dimensions: 8-module width
• Origin: Manufactured in Europe

🏠 Ideal Applications – 100kA Type 1+2+3 SPD with Window Indicator

• EV-ready homes & solar installs – Protect critical components from high-energy surges
• Industrial TN-S / TNC-S panels – Ideal for factories, switchboards, and plant rooms
• Commercial buildings – For compliant installs with full-mode SPD and MCB integration
• Weather-prone areas – Use IP65 enclosure in outdoor cabinets or wet zones
• Remote-monitored safety systems – BMS, alarms, and indicator light integration

📝 Summary – 100kA Type 1+2+3 SPD with Window Indicator

The Surge Devices 800914ENCM is a high-capacity Type 1+2+3 SPD with window indication, remote signalling, and replaceable modules. It includes a 3P 63A MCB and is housed in a tough IP65 polycarbonate case, ensuring long-lasting surge and lightning protection for 3-phase TN-S / TNC-S electrical systems.

Prefer the same unit without the MCB?

• 👉 800914ENC – SPD in IP65 Enclosure Only
  If you already have a circuit breaker installed, this version offers the same protection and housing—just without the MCB.
• 👉 800914 – Base SPD Module Only
  Or, for custom panel installs, opt for the standalone SPD module version.
