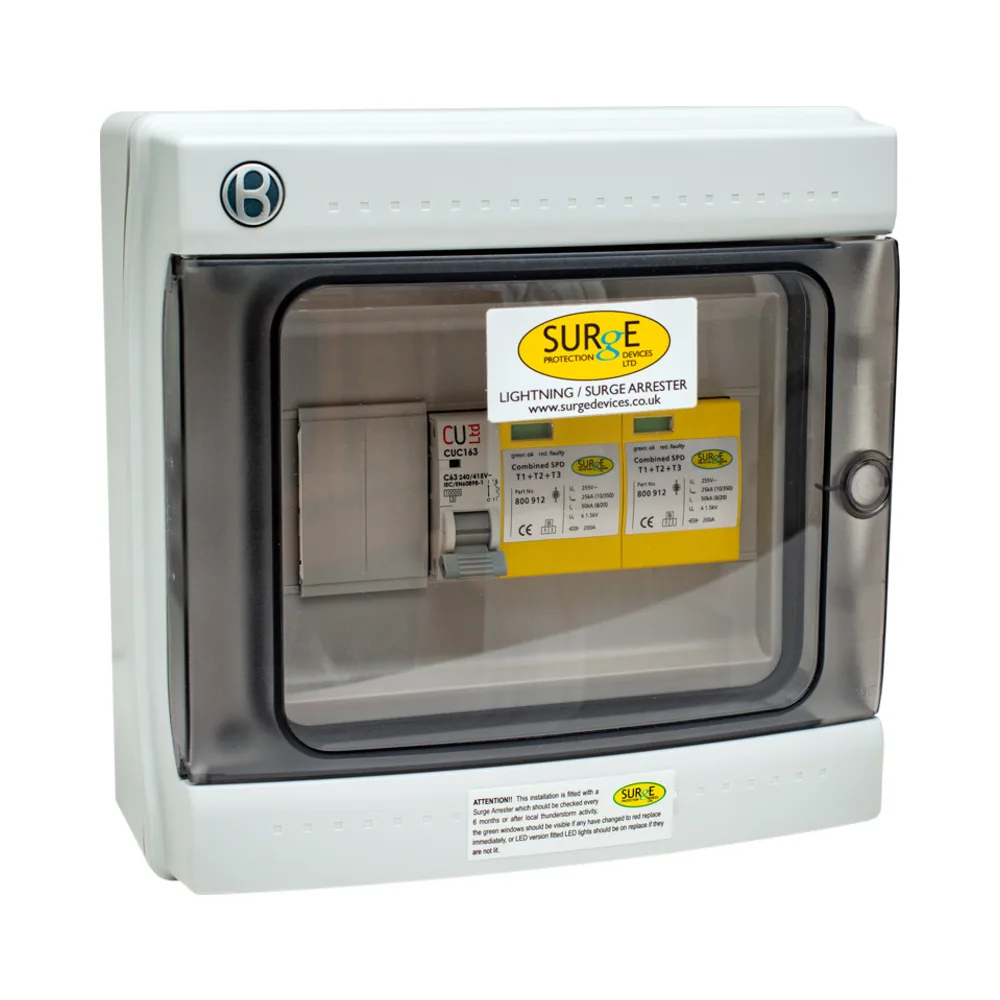

800912/ENCM 50kA Type 1+2+3 Single Phase SPD with 63A MCB & IP65 Enclosure
Complete SPD Kit – Type 1+2+3 Surge Protection with Breaker and Remote Monitoring
The 800912/ENCM is a fully assembled surge protection kit featuring the 800912 SPD and a 63A MCB inside a tough IP65 polycarbonate enclosure. This Type 1+2+3 Single Phase SPD in IP65 Enclosure with MCB – all-in-one solution delivers 50kA protection for TN-S and TN-C-S systems, with remote contacts, status window, and pluggable design for fast servicing and installation.
Key Features – 800912/ENCM SPD Kit
- Type 1+2+3 all-mode surge arrester – L-N, L-PE, N-PE
- 50kA discharge capacity (10/350µs waveform)
- 63A MCB
- Window indication for visual monitoring
- Remote contact output for alarms or BMS integration
- Fast response time: <25ns
- Let-through voltage: <700V
- Pluggable SPD modules for easy replacement
- Pre-wired inside IP65 polycarbonate enclosure
- Compliant with BS EN 61643-11
Technical Overview – Type 1+2+3 SPD
- Model: 800912/ENCM
- Surge Capacity: 50kA (10/350µs)
- Nominal Discharge: 20kA (8/20µs)
- Voltage Protection Level (Up): <700V
- Max Operating Voltage (Uc): 275V AC
- Temporary Overvoltage (TOV): 335V / 5s
- Response Time: <25ns
- Remote Signalling: Changeover contact
- Backup Protection: 63A MCB (included)
- Mounting: DIN rail inside IP65 enclosure
- Recommended Cable Size: ≥16mm²
What’s Included – SPD with Enclosure & MCB
- 800912 SPD module (pluggable)
- 63A MCB
- IP65 polycarbonate enclosure
- Status window for visual checks
- Remote output terminals
Why Choose This Product?
The 800912/ENCM simplifies surge protection installation by combining the SPD, breaker, and enclosure in a kit. It saves time on site, supports remote alarm output, and offers long-life protection in demanding environments such as EV chargers and commercial switchgear.
Guarantee & Compliance
- Made in Europe
- Complies with BS EN 61643-11
- Designed for extended operational life
- Fully supported by Surge Devices’ technical team
Summary -Type 1+2+3 Single Phase SPD in IP65 Enclosure with MCB
The 800912/ENCM delivers powerful all-mode surge protection with a 63A breaker, remote monitoring, and pluggable SPD module. Preassembled in a weatherproof IP65 enclosure, it’s ideal for TN-S and TN-C-S installations needing a compact, compliant, and ready-to-install solution.
800912/ENCM – SPD Kit with 63A MCB
The 800912/ENCM combines the SPD with a 63A MCB in a IP65 enclosure. This all-in-one solution is built for fast deployment in TN-S and TN-C-S systems where both surge protection and circuit isolation are needed.
Want the same SPD without the MCB? Go to 800912/ENC. Need just the SPD module? Choose 800912.
