Description

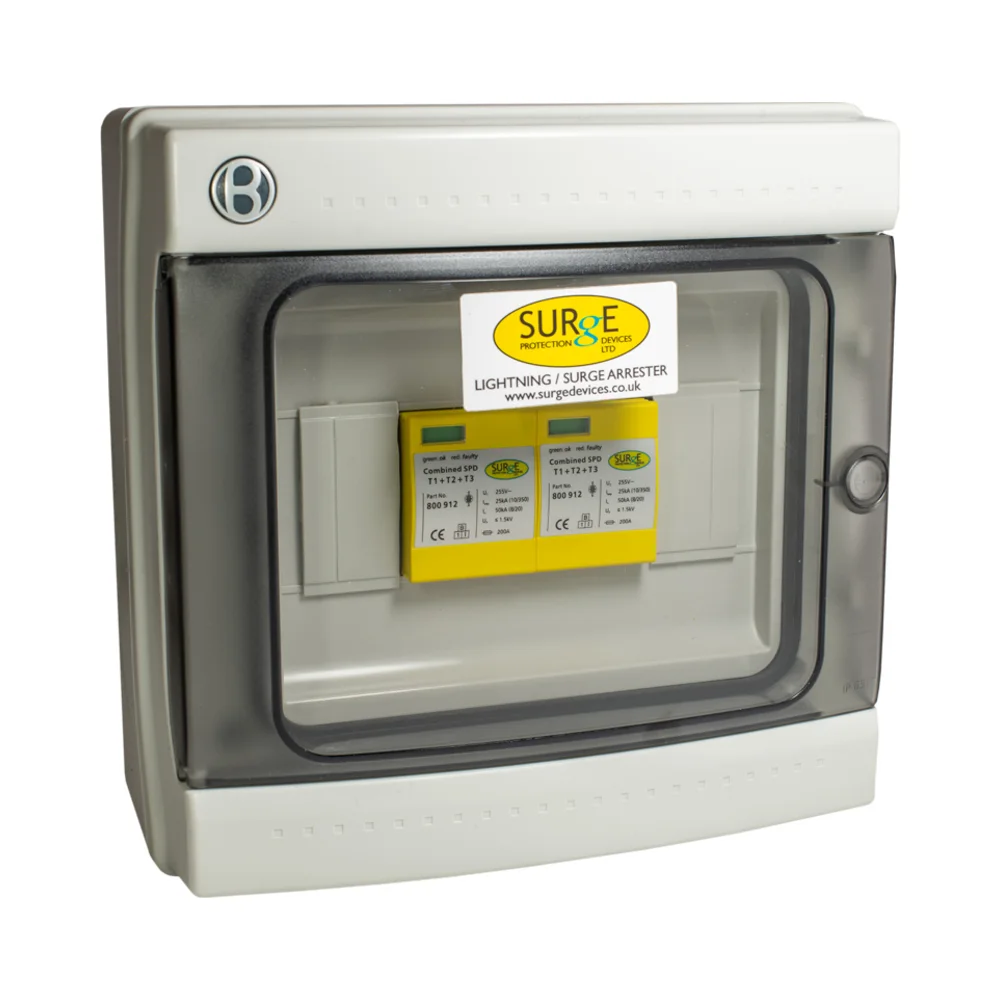

800912/ENC 50kA Type 1+2+3 Single Phase SPD in IP65 Enclosure
Enclosed Single Phase SPD – Type 1+2+3 with Window Indication and Remote Contact
The 800912/ENC Type 1+2+3 50kA Single Phase SPD is the 800912 SPD pre-installed in a durable IP65 polycarbonate enclosure. It provides 50kA all-mode protection for TN-S and TN-C-S systems, with pluggable modules, remote signal output, and visual window status indication. Ideal for fast, weather-resistant installations.
Key Features – 800912/ENC SPD Kit
- Type 1+2+3 SPD – full mode protection (L-N, L-PE, N-PE)
- 50kA surge discharge capacity (10/350µs)
- Window status display for clear condition checks
- Remote signal contact for alarms or BMS systems
- Pre-installed inside IP65 polycarbonate enclosure
- DIN rail mounted – pluggable SPD modules
- Response time: <25ns
- Let-through voltage: <700V
- Suitable for TN-S and TN-C-S installations
- Compliant with BS EN 61643-11
Technical Overview – 800912/ENC SPD
- Model: 800912/ENC
- Surge Capacity: 50kA (10/350µs)
- Nominal Discharge: 20kA (8/20µs)
- Voltage Protection Level (Up): <700V
- Max Operating Voltage (Uc): 275V AC
- Temporary Overvoltage (TOV): 335V / 5s
- Response Time: <25ns
- Remote Signalling: Changeover contact
- Mounting: DIN rail inside IP65 polycarbonate enclosure
- Recommended Cable Size: ≥16mm²
What’s Included – SPD in Enclosure
- 800912 SPD module (pluggable)
- IP65 polycarbonate enclosure
- Window indication panel
- Remote output terminal
Why Choose This Product?
This model offers the same trusted performance as the 800912 SPD but pre-installed in an IP65 enclosure for fast deployment. Ideal for use in outdoor, dusty, or damp environments like EV charge points, workshops, or remote control panels.
Guarantee & Compliance
- Made in Europe
- Complies with BS EN 61643-11
- Designed for long service life
- Backed by Surge Devices technical team
Summary – Type 1+2+3 50kA Single Phase SPD
The 800912/ENC is a ready-to-install SPD kit with 50kA protection, window status, and remote contact, all housed in a weatherproof IP65 enclosure. It’s designed for safe, fast surge protection across TN-S and TN-C-S single phase installations.
800912/ENC – SPD in IP65 Enclosure
The 800912/ENC is the same high-performance SPD as model 800912, factory-fitted inside a weatherproof IP65 polycarbonate enclosure. Perfect for outdoor installs or dusty environments where enclosure protection is essential.
If you also need integrated circuit protection, check out 800912/ENCM. Or for a panel-mounted version, return to 800912.
