Description

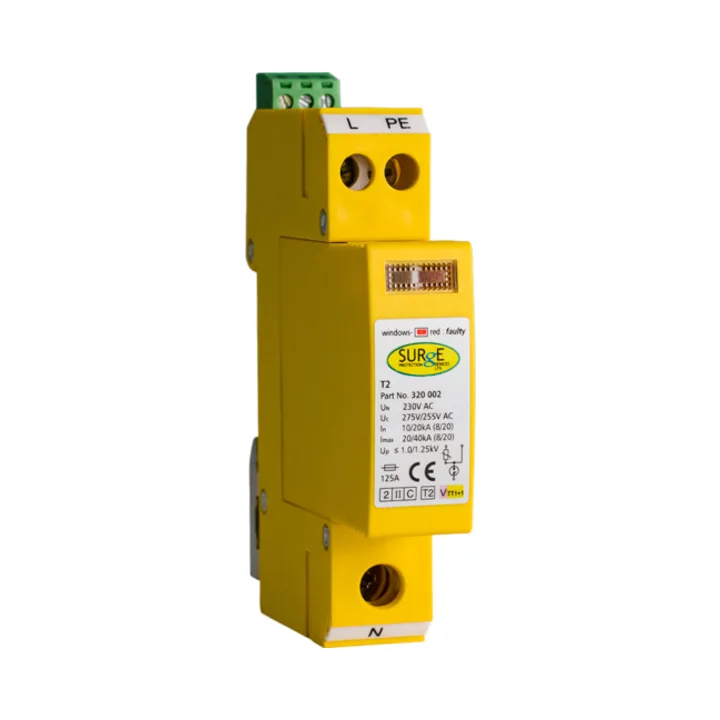

320002 Single Phase Surge Protection Device – Type 2/3 SPD for DIN Rail Mounting
DIN Rail Type 2/3 SPD – Compact Surge Arrester with Window Status & Remote Contact
The 320002 is a pluggable single phase Type 2/3 surge protection device for use inside consumer units and distribution panels. It features a visual status window, remote changeover contact, and fast DIN rail installation. Ideal for TN-S and TNC-S systems.
Key Features – 320002 SPD
- Single phase Type 2/3 SPD – L-N, N-PE protection
- Visual status window for quick checks
- Remote signal terminal for alarms or BMS
- DIN rail mountable with pluggable protection modules
- Response time: <25ns
- Let-through voltage: <1.3kV
- Conforms to BS EN 61643-11
Technical Overview – 320002 SPD
- Model: 320002
- System: Single Phase (TNC-S, TN-S)
- Surge Capacity: 20kA (8/20µs)
- Max Voltage (Uc): 275V AC
- TOV: 335V / 5s
- Response Time: <25ns
- Remote Output: Changeover contact
- Mounting: DIN rail
What’s Included
- 320002 SPD module (pluggable)
- Remote alarm terminal
- Status indication window (no LED)
Why Choose This Device?
The 320002 is designed for fast integration into single phase panels. With its replaceable modules, visual status, and remote monitoring, it’s ideal for surge protection in residential and commercial control boards.
Guarantee & Compliance
- Made in Europe
- Compliant with BS EN 61643-11
- High durability and long operating life
Summary – Single Phase Type 2/3 SPD with Remote Contact
The 320002 offers compact, high-quality surge protection for single phase installations. Perfect for control panels where enclosure isn’t required.
320002 – Single Phase SPD Module (No Enclosure)
The 320002 is a Type 2/3 single phase surge protection device with pluggable modules, window status indicator, and remote signal contact. It’s ideal for protected installations like internal switchboards or consumer panels.
Need it in a weatherproof housing? Check 320002/ENC.
