Description

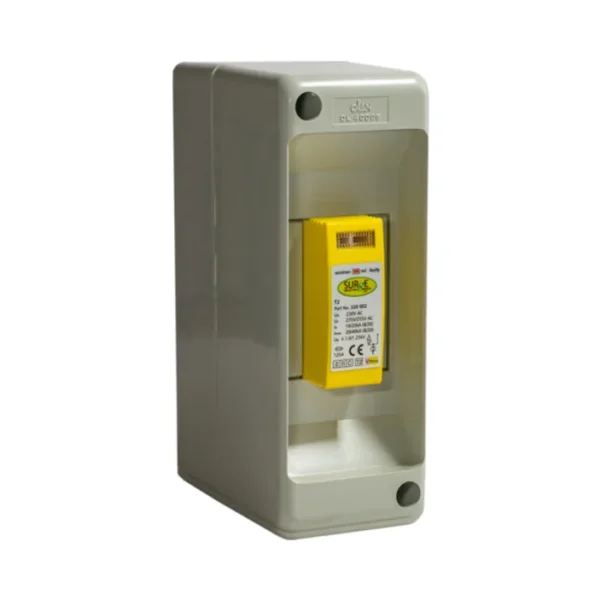

320002/ENC Single Phase Surge Protection Device – Type 2/3 SPD in an Enclosure
Enclosed SPD with Remote Contact – Type 2/3 Surge Arrester for TN-S & TNC-S
The Surge Devices 320002/ENC Type 2/3 SPD in Enclosure is the same SPD unit as the 320002, factory-installed in a sealed polycarbonate enclosure. With pluggable modules, remote contact, and status window, it provides fast, protection for single phase installations.
Key Features – 320002/ENC SPD Kit
- Single phase Type 2/3 surge protection device
- Pluggable module with window indicator
- Remote contact output for alarms or BMS
- Factory-installed in a polycarbonate enclosure
- Response time: <25ns
- Let-through voltage: <1.3kV
- DIN rail inside enclosure
- Compliant with BS EN 61643-11
Technical Overview – 320002/ENC SPD Kit
- Model: 320002/ENC
- System Type: TN-S, TNC-S (single phase)
- Surge Capacity: 20kA (8/20µs)
- Max Voltage (Uc): 275V AC
- TOV: 335V / 5s
- Remote Output: Changeover contact
- Mounting: DIN rail (pre-installed)
- Enclosure: IP65 polycarbonate
What’s Included
- 320002 SPD module
- Remote contact terminal
- enclosure with wiring and status window
Why Choose This SPD Kit?
The 320002/ENC is a pre-assembled solution ideal for external installs. It reduces installation time and offers monitored, pluggable surge protection with no need for separate housing.
Guarantee & Compliance
- Made in Europe
- BS EN 61643-11 compliant
- Designed for high uptime and field servicing
Summary – Surge Devices 320002/ENC Type 2/3 SPD in IP65 Enclosure
Complete single phase SPD kit with enclosure and remote output. Built for fast installs in EV chargers, garages, and distribution boards requiring IP-rated protection.
320002/ENC – Single Phase SPD in IP65 Enclosure
The 320002/ENC is the same SPD pre-mounted in a tough IP65 polycarbonate enclosure for fast, weather-resistant installation. Includes pluggable module, status window, and remote output terminal.
Installing it inside an existing protected board? Use the base module: 320002.
