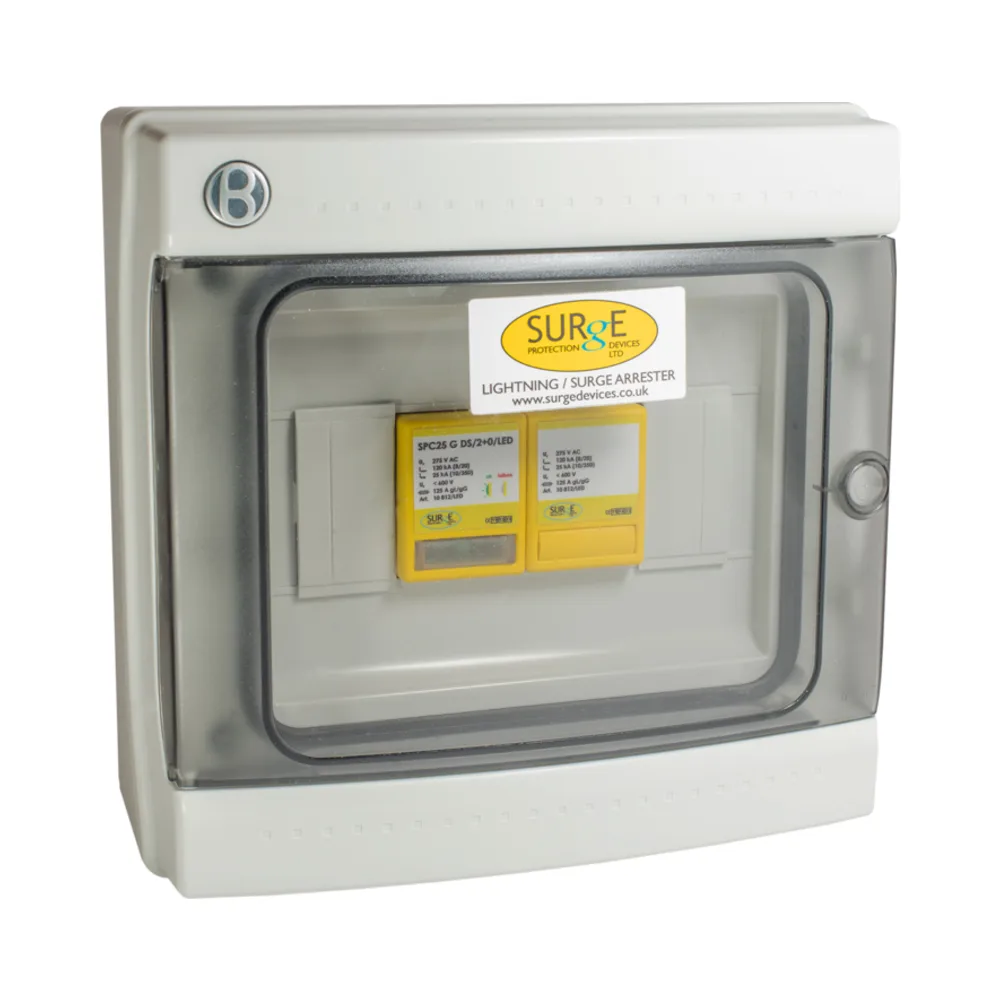

10812/LED/ENC 50kA Type 1+2+3 Single Phase SPD with LED Indication
Enclosed Single Phase Surge Protection Device – Type 1+2+3 SPD for AC Installations with Visual and Remote Monitoring
The 10812/LED/ENC is a Single Phase Type 1+2+3 SPD in IP65 Enclosure from Surge Devices. It offers complete surge and lightning protection for TN-S and TN-C-S systems. Featuring LED indication, remote signal contacts, and high discharge capacity, it is pre-wired in a tough IP65 polycarbonate enclosure for quick installation and reliable outdoor or indoor use.
Key Features – 10812/LED/ENC SPD Kit
- Type 1+2+3 all-mode surge arrester – L-N, L-PE, N-PE protection
- High discharge capacity – 50kA (10/350µs waveform)
- LED visual status display for clear monitoring
- Remote changeover contact for alarms or BMS systems
- Ultra-fast response: <25ns
- Low let-through voltage: <700V
- Compatible with TN-S and TN-C-S single phase systems
- Pre-wired and DIN rail mounted inside IP65 polycarbonate enclosure
- Ideal for consumer units, EV chargers, and control panels
- Fully compliant with BS EN 61643-11
Technical Overview – 10812/LED/ENC SPD
- Model: 10812/LED/ENC (with IP65 enclosure)
- Surge Capacity: 50kA (10/350µs)
- Nominal Discharge: 20kA (8/20µs)
- Voltage Protection Level (Up): <700V
- Max Continuous Operating Voltage (Uc): 275V AC
- Temporary Overvoltage (TOV): 335V / 5s
- Response Time: <25ns
- Remote Signalling: Changeover contact
- Recommended Backup MCB/Fuse: 63A
- Cable Size: Min. 16mm²
- Mounting: DIN rail inside IP65 enclosure
What’s Included – Single Phase Type 1+2+3 SPD in IP65 Enclosure
- 10812/LED SPD module
- Pre-wired IP65 polycarbonate enclosure
- LED status window
- Remote output terminals
Why Choose This Product?
This preassembled SPD kit speeds up installation and reduces panel complexity. It includes everything needed for immediate deployment. With LED status, remote contact, and a durable IP65 polycarbonate enclosure, it’s the perfect drop-in solution for surge protection in compact or harsh environments.
Guarantee & Compliance
- Made in Europe
- Conforms to BS EN 61643-11
- Long-life design for consistent protection
- Fully supported by Surge Devices technical team
Summary
The 10812/LED/ENC combines high-performance surge protection with a factory-fitted IP65 polycarbonate enclosure. Rated at 50kA, with LED and remote output, it installs quickly into TN-S and TN-C-S systems, providing reliable all-mode protection in residential, commercial, or industrial environments.
800912ENC – SPD Pre-Fitted in IP65 Enclosure
The 800912ENC includes the same SPD as model 800912, pre-installed in a tough IP65 polycarbonate enclosure for fast, weather-resistant installation.
If you also need integrated circuit protection, choose the version with breaker: 800912/LEDENCM. Or for module-only use, go back to 800912/LED.
