Description
3-Phase Type 1+2+3 SPD with LED Indication & Full Mode Protection

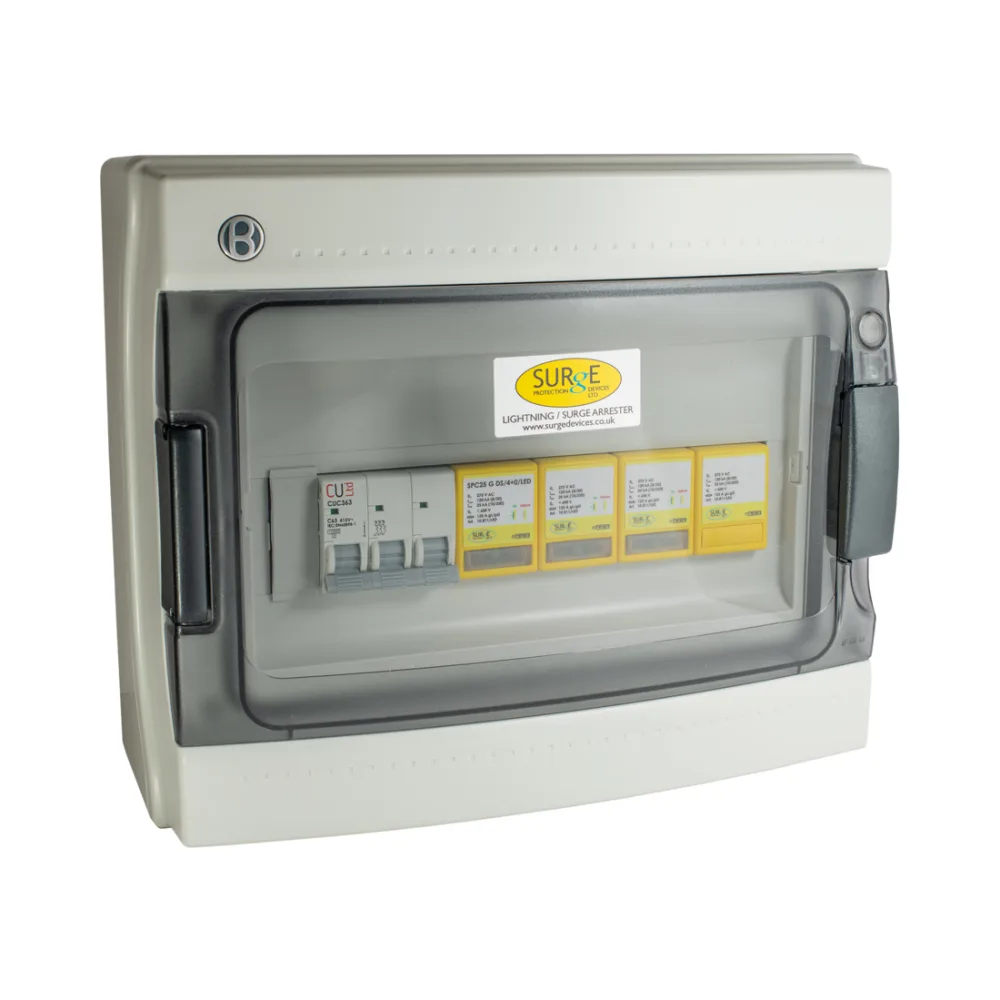

Surge Devices 10811/LEDENCM – TN-S / TNC-S Earthing
The Surge Devices 10811/LEDENCM IP65 Type 1 SPD is a powerful surge protector made for 3-phase TN-S and TNC-S systems. It protects against lightning strikes, power surges, and sudden voltage spikes. This unit includes LED status lights, remote alarm output, and a 63A MCB, all inside a strong IP65 polycarbonate box. It meets key safety standards like BS EN 62305.
Key Features – For TN-S / TNC-S Systems, 3-Phase, IP65
- Type 1+2+3 SPD – Offers full lightning and surge protection
- 3 Pole 63A MCB
- Earthing – Works with TN-S and TNC-S 3-phase systems
- Discharge Strength – 25kA / 80kA
- Full Protection – Phase-to-earth, phase-to-neutral, and all combinations
- Low Voltage Let-Through – Less than 600V for better equipment safety
- LED Indicators – Show surge status for each connection
- Remote Output – Connect to buzzers, lights, or BMS alarms
- Safe Design – Has a thermal switch and stops follow current
- Install Friendly – DIN rail mount and includes a 63A MCB
- Wire Size – Use 25mm² copper cables
- Standards – Meets BS EN 62305, EN 61643-11, and BS 7671
Where to Use It – IP65 Type 1 SPD
- Homes with TN-S earthing – Protect smart gear, EV chargers, and panels
- Factories with TNC-S – Shield motors, control panels, and machines
- Commercial Sites – Use in schools, hotels, or offices with high demand
- Outdoor or Harsh Sites – IP65 case suits wet, dusty, or hot areas
- Regulated Installs – Meets LPL Class I surge risk rules
Summary – IP65 Type 1 SPD
The Surge Devices 10811/LEDENCM gives full surge and lightning protection for 3-phase TN-S or TNC-S systems. It includes LED lights, remote alarm output, and a 63A MCB. The IP65 box keeps it safe in harsh areas,
