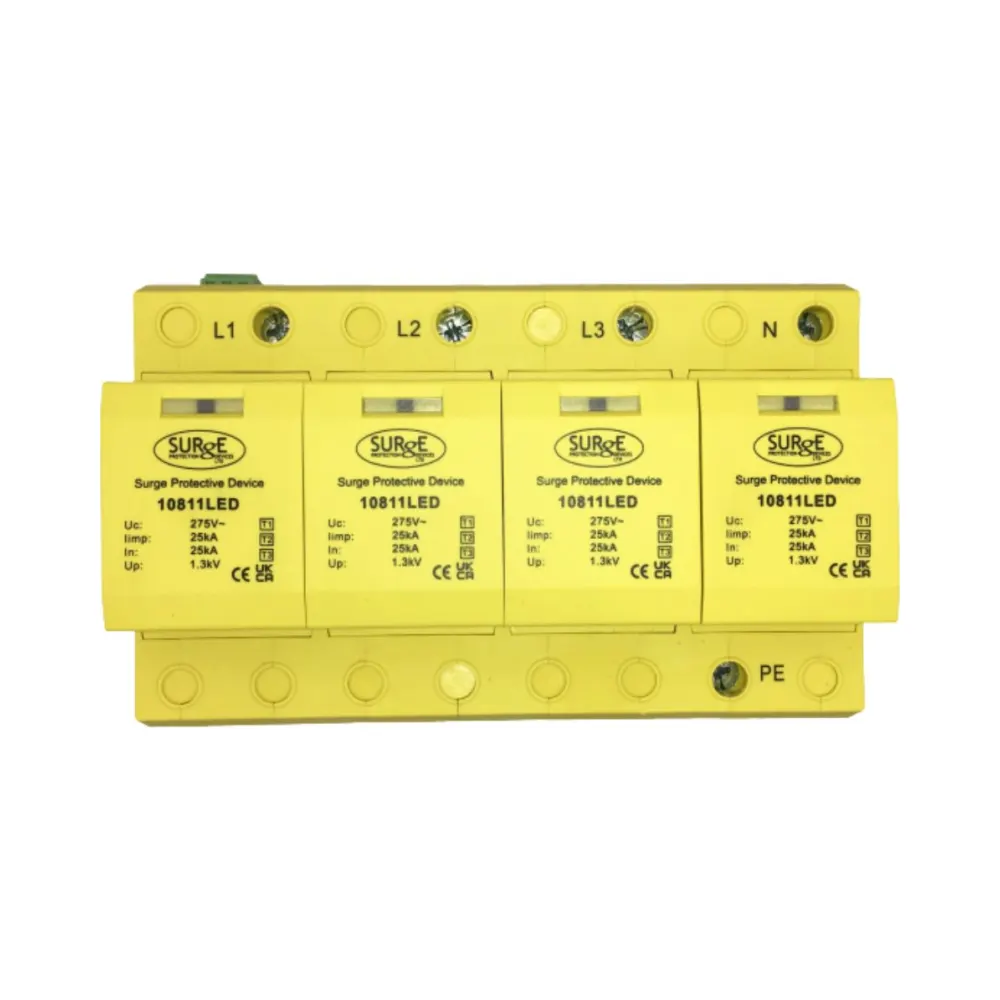

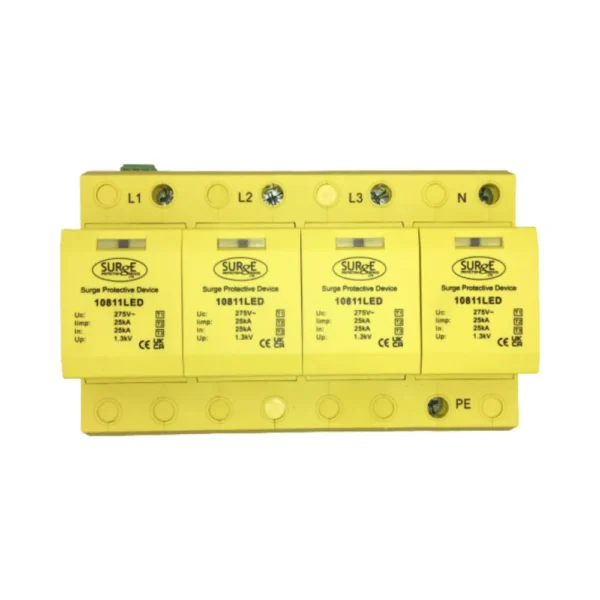

Surge Devices 10811/LED Type 1+2+3 SPD – 3-Phase Lightning Arrester for TN-S & TNC-S Systems

Description

Type 1+2+3 SPD for 3-Phase TN-S and TNC-S Earthing

Surge Devices 10811/LED – Full Lightning & Surge Protection

The Surge Devices 10811/LED Type 1+2+3 SPD for TN-S and TNC-S systems is engineered for 3-phase electrical installations with TN-S and TNC-S earthing systems. It delivers high-performance protection against direct lightning strikes, switching surges, and transient overvoltages, making it ideal for industrial, commercial, and high-end residential setups. Designed for DIN rail mounting, this SPD supports BS EN 62305 and 18th Edition BS 7671 compliance.

🔧 Key Features – 3-Phase Type 1+2+3 SPD for TN-S / TNC-S Systems

• SPD Classification: Type 1+2+3 (BS EN 61643-11), Class I+II+III
• Earthing Systems: Suitable for TN-S and TNC-S configurations
• Phase Design: Compatible with 3-phase networks (L1, L2, L3, N, PE)
• Discharge Ratings:
  • Lightning Current (10/350μs): 25kA per mode
  • Nominal Discharge (8/20μs): 25kA
  • Maximum Discharge (8/20μs): 80kA
• Let-Through Voltage: <600V
• Response Time: <25 nanoseconds
• Status Indicators: Green LED for visual check
• Remote Contact: Volt-free changeover for BMS/alarm integration (0.5A/250V)
• Mounting: DIN rail, 4-module format
• Wiring: Up to 25mm² solid core, 4Nm terminal torque
• Standards Compliance:
  • BS EN 62305 (Lightning Protection)
  • BS EN 61643-11 (SPD Standard)
  • BS 7671 (18th Edition Wiring Regs)

🏠 Ideal Applications

• TN-S Surge Protection for Smart Homes – Secure power panels, appliances, and home automation
• TNC-S Industrial SPD – Ideal for switchgear, motors, and control panels
• Commercial 3-Phase Surge Suppression – Protect office systems, HVAC, and IT networks
• LPL Class I SPD for BS EN 62305 Compliance – Trusted for critical and regulated electrical infrastructure

📝 Summary

The Surge Devices 10811/LED provides full-spectrum surge protection for 3-phase systems with TN-S and TNC-S earthing. Built to meet BS EN 62305 standards, it’s ideal for critical installs requiring lightning-class defense and remote monitoring support.
