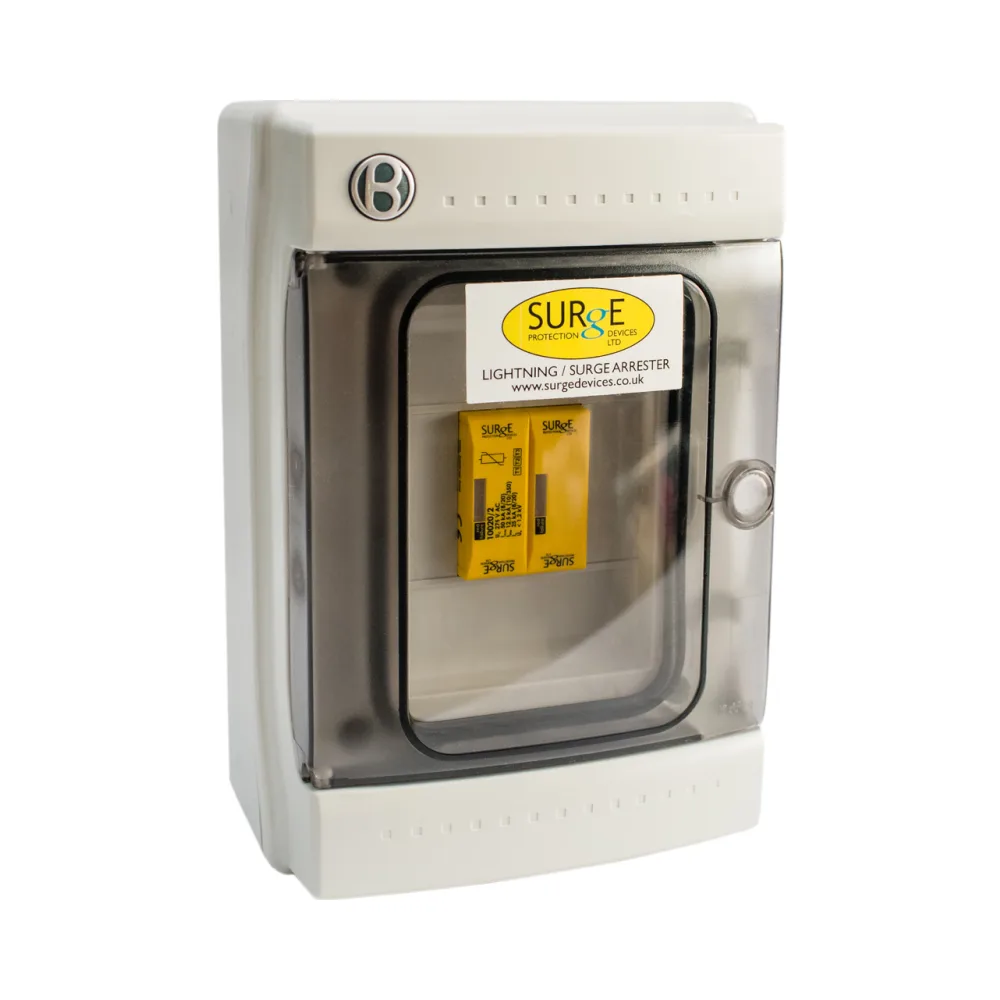

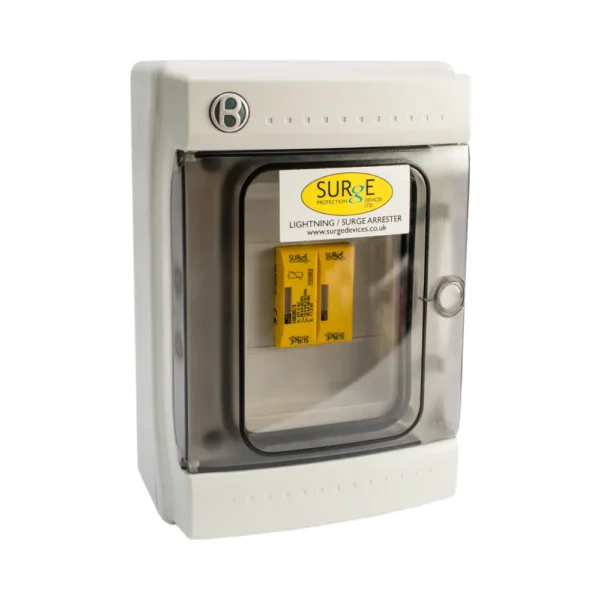

Surge Devices 10020/2ENC Type 1+2+3 SPD – 25kA Single Phase Lightning Arrester in IP65 Enclosure

Description

⚡ Single-Phase Lightning & Surge Arrester with Visual Indication

⚡ Surge Devices 10020/2ENC Type 1+2+3 SPD – IP65 Housing for TN-S and TNC-S

The Surge Devices 10020/2ENC Single Phase Lightning Arrester in IP65 Enclosure is a Type 1+2+3 single-phase SPD designed for lightning and surge protection in TNC-S and TN-S systems. Rated at 25kA per mode (50kA total), it comes pre-installed in a durable IP65 polycarbonate enclosure, ideal for residential and solar PV installations needing clear visual status and reliable remote monitoring.

🔧 Key Features – Type 1+2+3 SPD for TN-S / TNC-S Systems

• SPD Class: Type 1+2+3 combined arrester
• Earthing Compatibility: TNC-S and TN-S installations
• Discharge Performance:
  • Iimp: 25kA per mode (10/350µs)
  • Itotal: 50kA (combined L/N–PE)
  • In: 20kA (8/20µs)
• Voltage Performance:
  • Uc: 275V AC
  • Up: <1.2kV
  • TOV: 335V / 5 sec
• Response Time: <25ns
• Indication: Visual window for SPD condition monitoring
• Remote Contact: Changeover terminal for BMS, buzzer, or light
• Safety Function: Extinguishes follow currents after tripping
• Mounting: 35mm DIN rail
• Backup Protection:
  • Fuse/MCB: 63–100A
  • Short Circuit Withstand: 60kA
• Housing: Pre-fitted IP65-rated polycarbonate enclosure
• Service Life: Over 100,000 hours
• Manufactured in Europe

🏠 Ideal Applications – Single Phase Lightning Arrester in IP65 Enclosure

• Residential electrical panels – Essential for protecting sensitive home systems
• Solar inverter protection – Adds surge safety for rooftop PV setups
• Electric vehicle charge points – Prevents surge damage to EV supply equipment
• SPD with visual status & BMS support – Enables on-site or remote monitoring
• Weatherproof surge protection – Safe use in garages, outbuildings, and external walls

📝 Summary – Single Phase Lightning Arrester in IP65 Enclosure

The Surge Devices 10020/2ENC is a Type 1+2+3 SPD rated for 25kA per path, supplied in an IP65 polycarbonate enclosure. Suitable for TNC-S and TN-S installs, it offers fast surge response, low let-through voltage, and remote contact capability—ideal for homes, solar, and EV setups.

Want a faster install with built-in circuit protection?

• 👉 10020/2ENCM – Includes 63A MCB in IP65 Enclosure
  This model includes the SPD and enclosure plus a pre-fitted 63A MCB, saving time on-site.
• 👉 10020/2 – SPD Module Only
  Alternatively, if you already have an enclosure or board space, go with the compact DIN-mount version.
