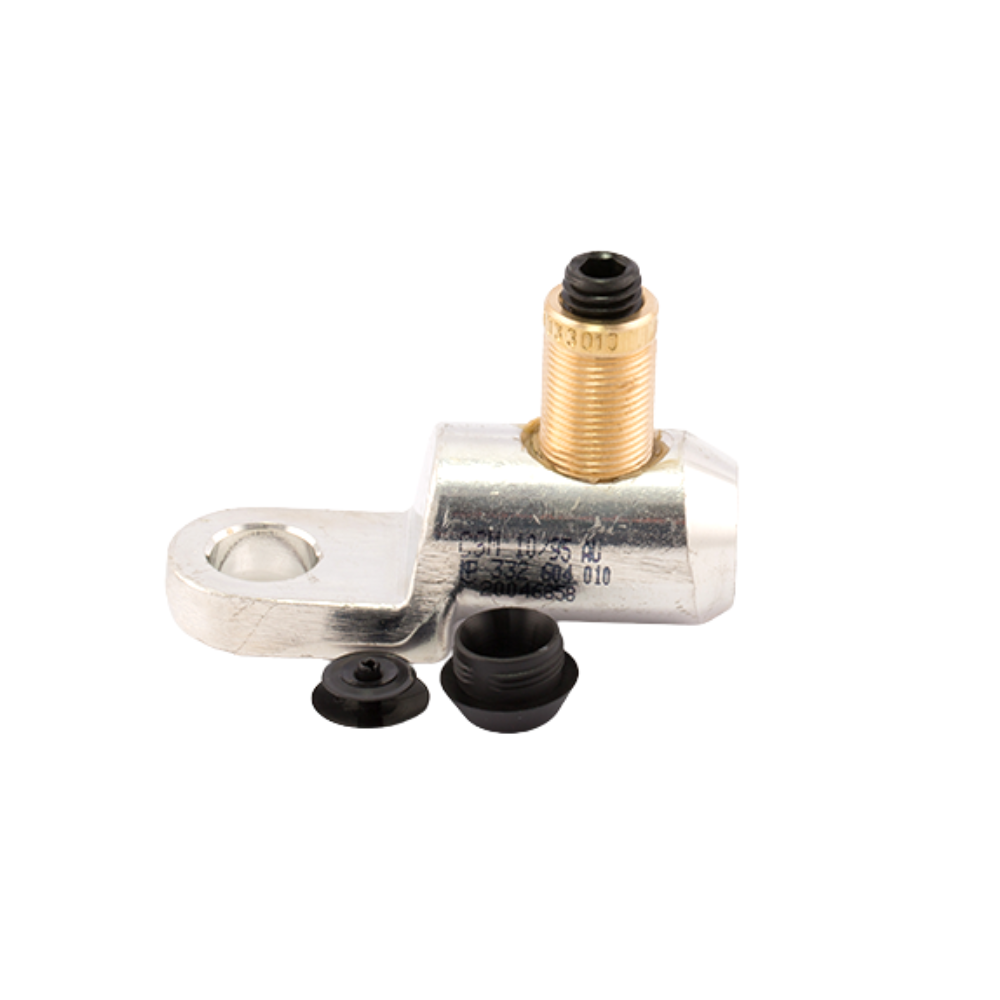

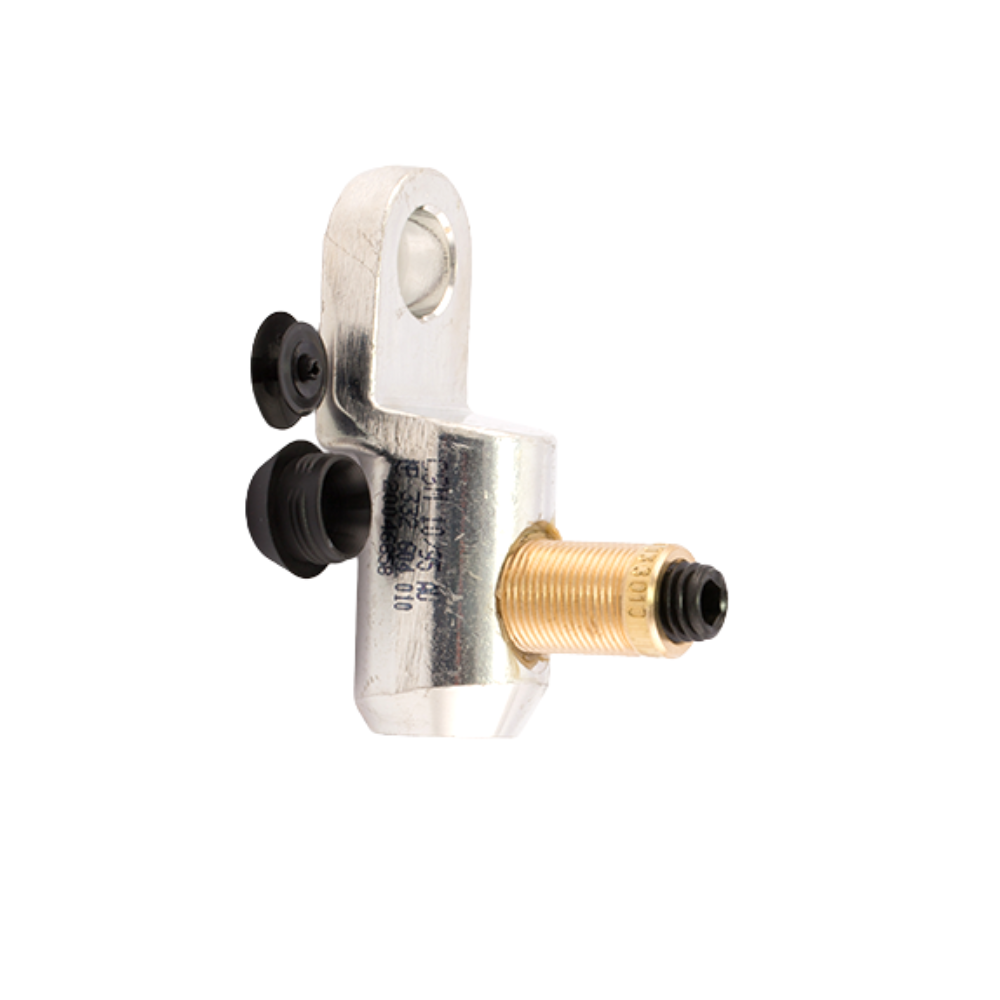

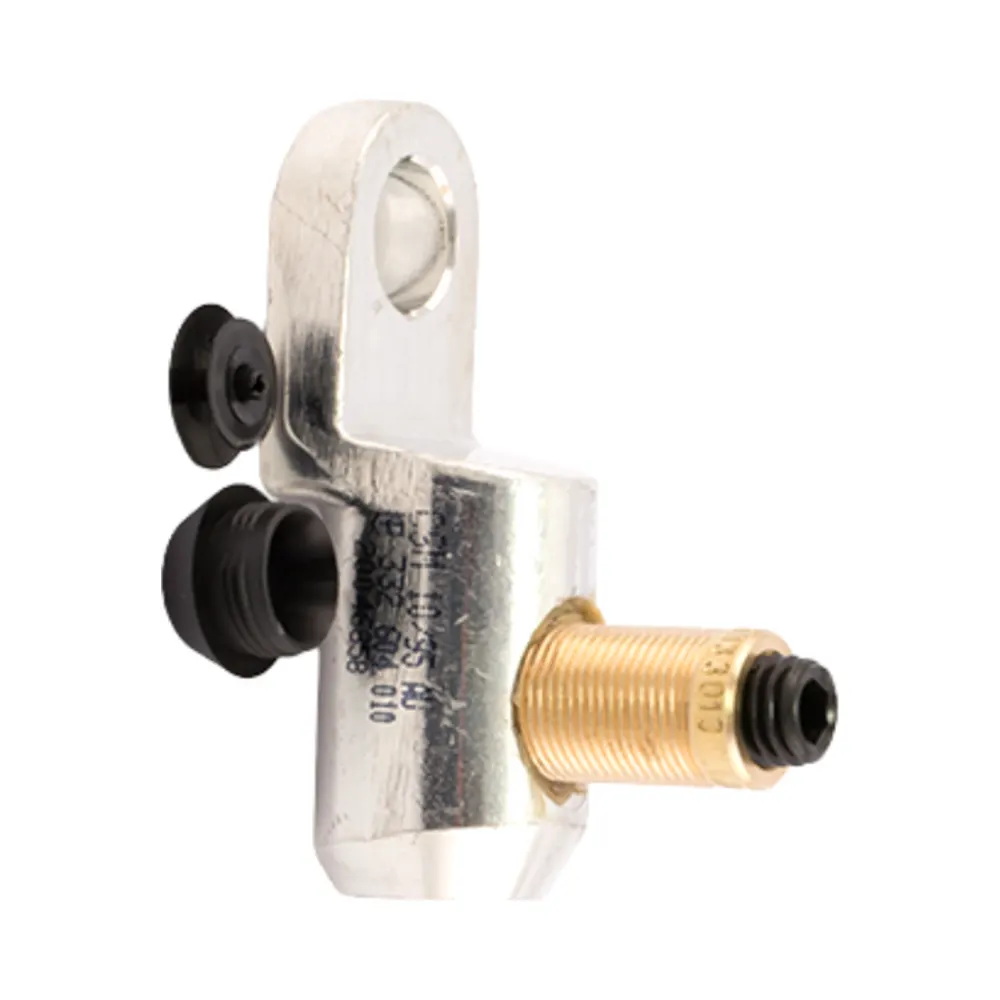

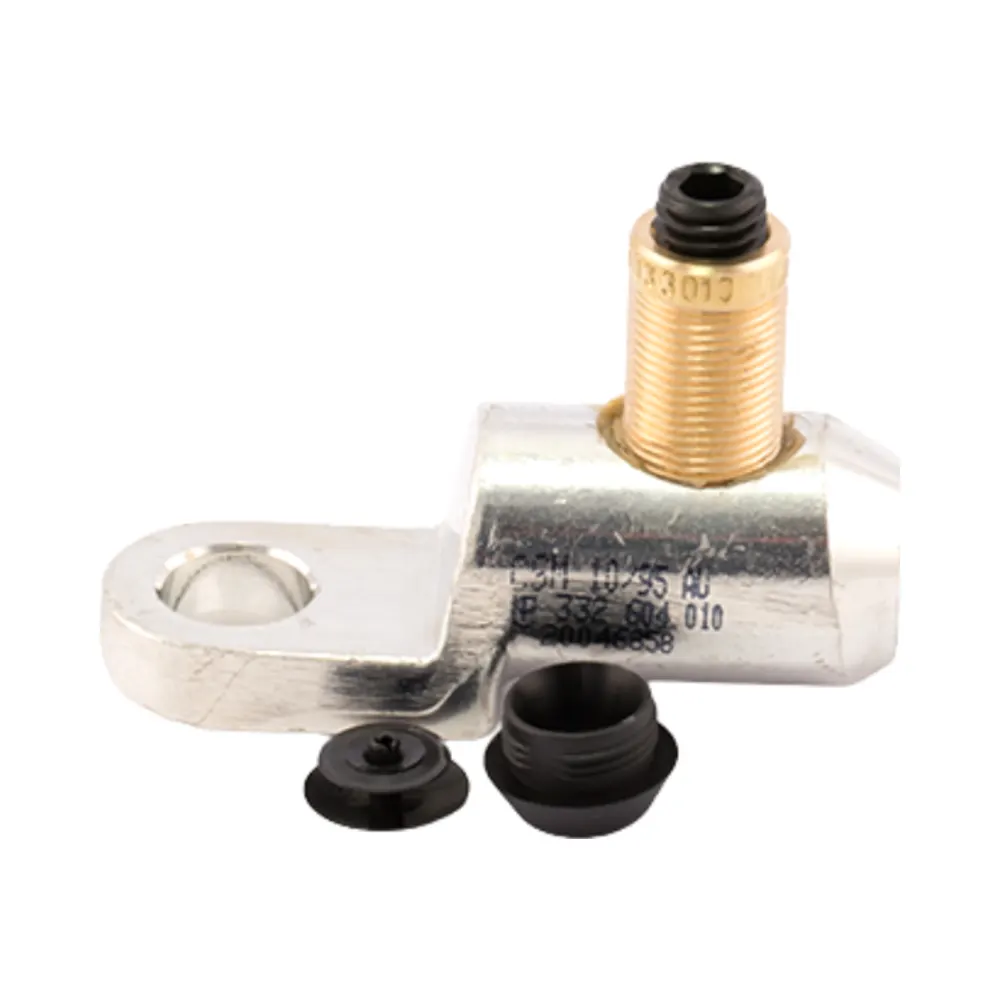

Shear Bolt Connector 10 – 95mm² – Pack of 1
SWA SBC10-95
The SBC10-95 Shear Bolt Connector 10 – 95mm² is a high-performance bolted connector designed for low and medium voltage (up to 36kV) electrical connections. Featuring stepless shear bolts, this connector provides a precise and maintenance-free termination for both copper and aluminium conductors, whether stranded or solid.
Its innovative slip-disc base design ensures that conductors remain undamaged, while the 98 separate breaking points guarantee an optimal electrical and mechanical connection. With a large clamping range (10mm² to 95mm²) and a crimp-free installation process, it significantly reduces installation time—requiring only an impact driver with an Allen key.
Key Features of the SBC10-95 Shear Bolt Connector 10 – 95mm²
- Greatly Reduces Installation Time – No crimp tools required, just an impact driver with an Allen key.
- Optimised for Up to 36kV Applications – Reliable performance for low and medium voltage systems.
- Compatible with Copper and Aluminium Conductors – Works with both stranded and solid conductors.
- Innovative Slip-Disc Base Design – Prevents conductor damage during installation.
- 98 Separate Breaking Points – Ensures bolts shear-off below the barrel of the terminal for a perfect fit.
- Guaranteed Electrical & Mechanical Connection – Delivers a secure, high-integrity joint.
- Manufactured from High-Quality Aluminium Alloy – Provides excellent conductivity and corrosion resistance.
Technical Features
- Large Clamping Range: 10 – 95mm²
- Centric Cable Guide with Sleeves – Ensures precise conductor positioning.
- Oxidation Protection – Transverse-grooved conductor channels prevent oxidation.
- Blind Hole with Pressure-Resistant Oil Barrier – Designed for impregnated cables.
- Compact, Slide-Sleeve Compatible Design – Rounded edges and smooth transitions for heat shrink applications.
- Type-Tested to IEC 61238-1 – Proven contact technology ensures reliability.
- Verified in Joint Tests to HD 629 – Endurance tested for 18 months under extreme conditions.
Why Choose This Product?
The SWA SBC10-95 Shear Bolt Connector is the ideal solution for professionals seeking fast, secure, and crimp-free cable terminations. Whether used in power distribution, industrial applications, or infrastructure projects, this connector ensures a consistent, high-integrity connection without the risk of over- or under-crimping. The stepless shear bolts, innovative slip-disc base, and corrosion-resistant aluminium alloy construction make it an industry-leading choice for reliable, long-term electrical performance.
About the Brand
SWA is a renowned manufacturer of electrical connection solutions, known for its high-quality, innovative, and time-saving products. The SICON Bolted Connector range features advanced stepless shear bolt technology, eliminating the need for expensive crimping tools while ensuring optimal electrical conductivity and mechanical durability.
