Description
LED Bollard PIR
Saxby 119100

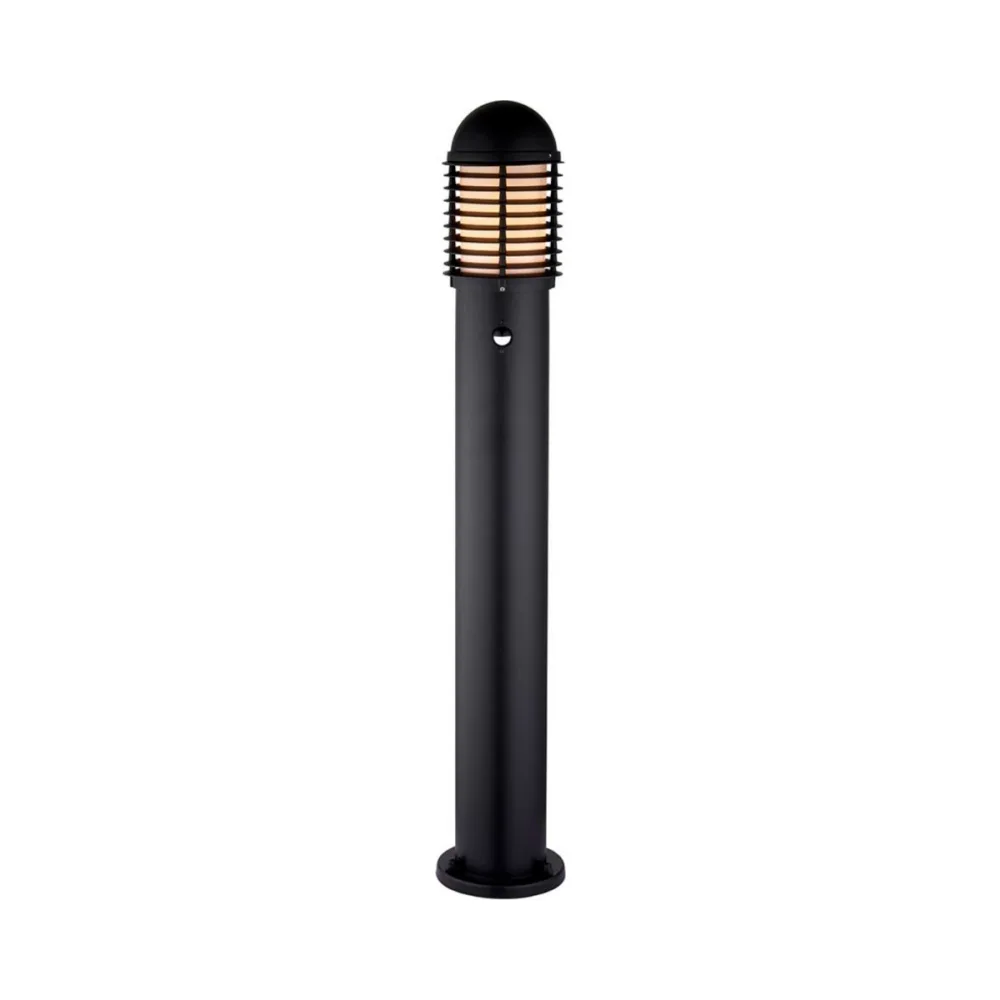

The Saxby 119100 Louvre LED Bollard PIR is a surface-mounted outdoor bollard designed for use with E27 LED lamps up to a maximum of 15W, offering flexibility in lamp choice to suit different lighting requirements. Finished in textured black and constructed from die cast aluminium alloy with a glass diffuser, the bollard provides a durable and robust solution for external pathway and perimeter lighting. Its louvred design helps control light output while maintaining visual comfort, making it suitable for both residential and commercial exterior environments. An integrated PIR sensor enables automatic operation, featuring a wide 110° detection angle, adjustable ambient light sensitivity from 10 to 2000 lux, and a selectable time delay ranging from 10 seconds to 5 minutes for tailored lighting control.
The Saxby 119100 Louvre LED Bollard PIR operates on a 220–240V AC supply at 50/60Hz and is non-dimmable, with any dimming functionality dependent on the installed E27 LED lamp. It is rated IP44 for protection against ingress in outdoor locations and IK08 for impact resistance, making it suitable for areas exposed to occasional contact. Designed for reliable year-round performance, it operates in ambient temperatures from -20°C to +40°C and is classified as Class I. A 3-way terminal block is provided for straightforward installation, with optional accessories including a Louvre root mounting kit and inline IP68 connectors for enhanced installation flexibility.
Key Features – Saxby 119100 Louvre LED Bollard PIR
- Outdoor LED bollard with integrated PIR sensor
- Compatible with E27 LED lamps up to 15W
- Textured black finish with louvred diffuser design
- Die cast aluminium alloy and glass construction
- PIR detection angle of 110°
- Adjustable light sensitivity from 10–2000 lux
- Adjustable time delay from 10 seconds to 5 minutes
- IP44 rated for outdoor use
- IK08 impact resistance
- Suitable for residential and commercial exterior lighting
Technical Specifications – Saxby 119100 Louvre LED Bollard PIR
- Lamp Type: E27 LED (required)
- Maximum Lamp Wattage: 15W
- Dimmable: No (lamp dependent)
- Input Voltage: 220–240V AC
- Frequency: 50/60Hz
- IP Rating: IP44
- IK Rating: IK08
- PIR Detection Angle: 110°
- Detection Range: Up to 4 metres
- Operating Temperature: -20°C to +40°C
- Terminal Block: 3-way
- Product Weight: 2.75 kg
- Electrical Class: Class I
- Warranty: 2 Years
