RayTech Magic Gel 420 – 420ml

RayTech Magic Gel 420 – 420 ml

Bicomponent gel with very high dielectric and thermal characteristics, ideal for connection systems (joint shells or enclosures) for power cables.

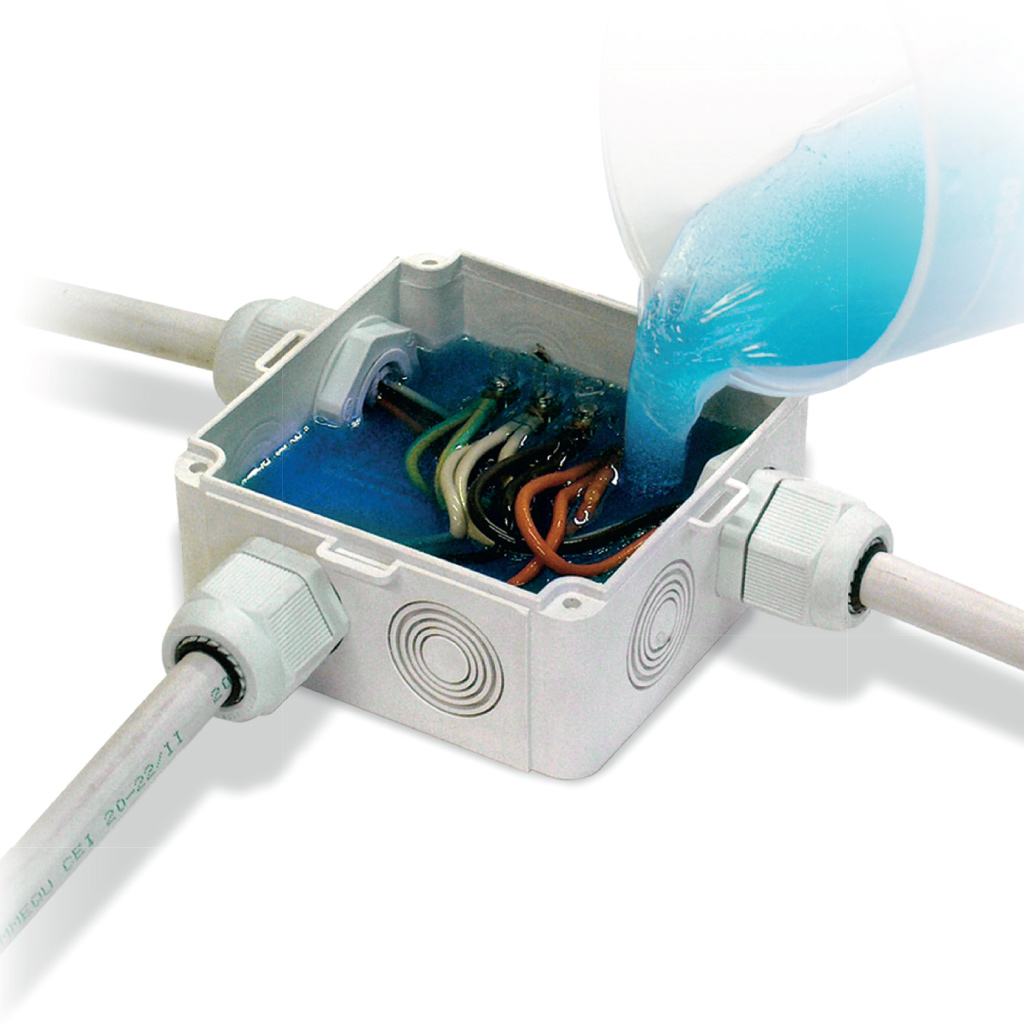

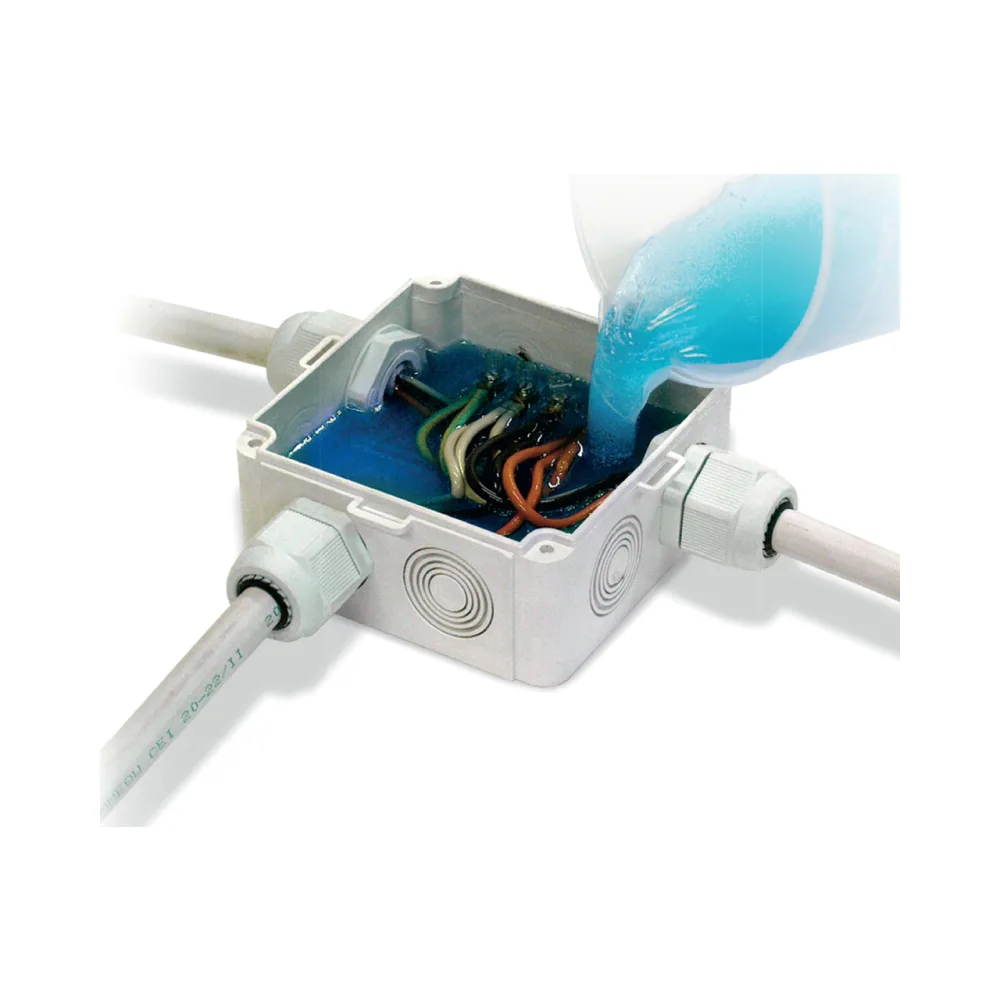

The insulating and sealing gel, when cast in suitable casings, ensures an IP68 degree of protection and it can replace all types of resins. This is a self-polymer insulation in a practical bottle, with cold cross-linking. Once poured, the insulation, characterised by very low viscosity, surrounds and envelopes any type of material, cross-linking in less than 10 minutes. Completely non-toxic, cross-linking with a very slow isothermal peak that does not thermally stress the materials it contacts.

• For high-temperature applications
• Quick cross-linking (only 10 minutes)
• Re-enterable also after long working periods
• Non-toxic and safe with no shelf life
• Low viscosity
• Gel UL 94-HB
• Dielectric strength >23 kV/mm
• Cross-linking time: Fast (about 10 min. at 23°C)
• Volume resistivity >2 x 10¹⁵ Ω cm
• Working temperature: -60°C / +200°C
• Overload temperature for short periods: Up to 250°C
• Stabilised for: Mould – UV
• Degree of protection: IP68 (in proper casings)

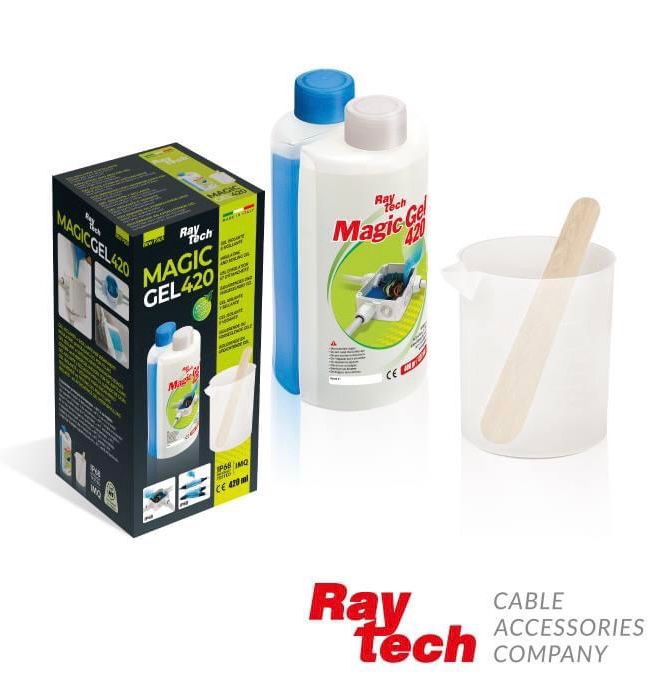

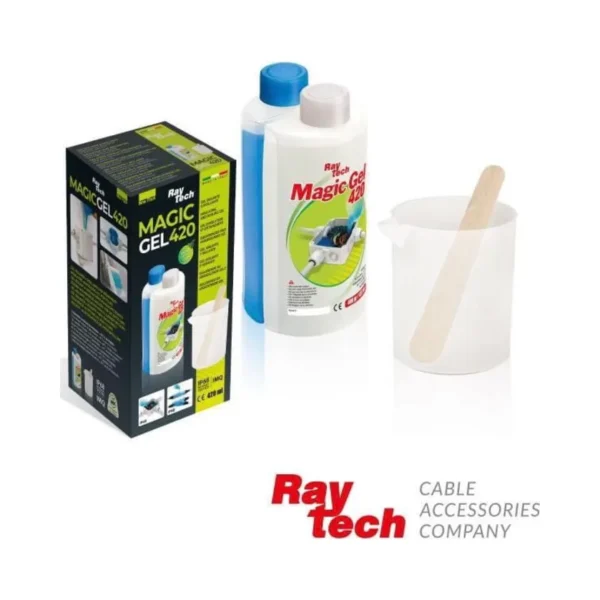

Package type:

• 1 single, bi-component bottle
• 1 small basin
• 1 mixing spoon
