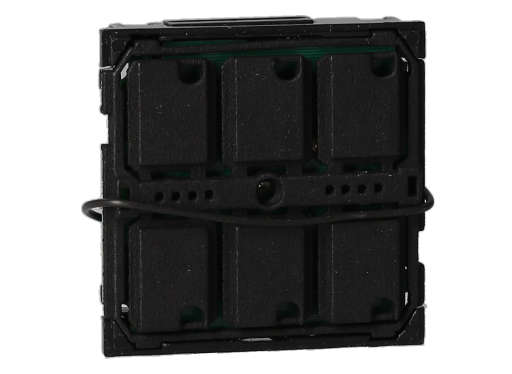

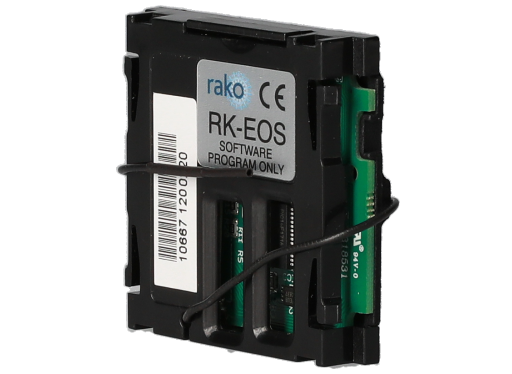

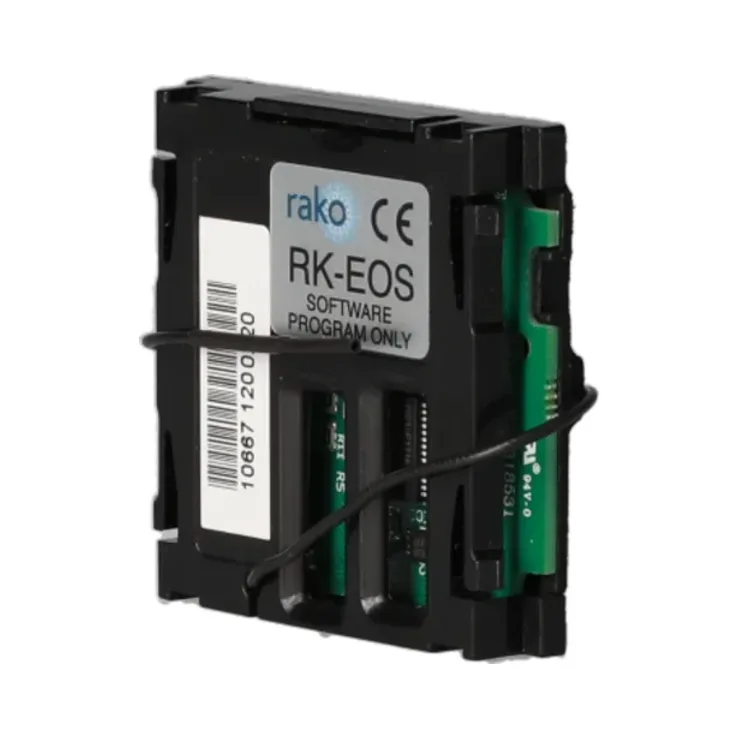

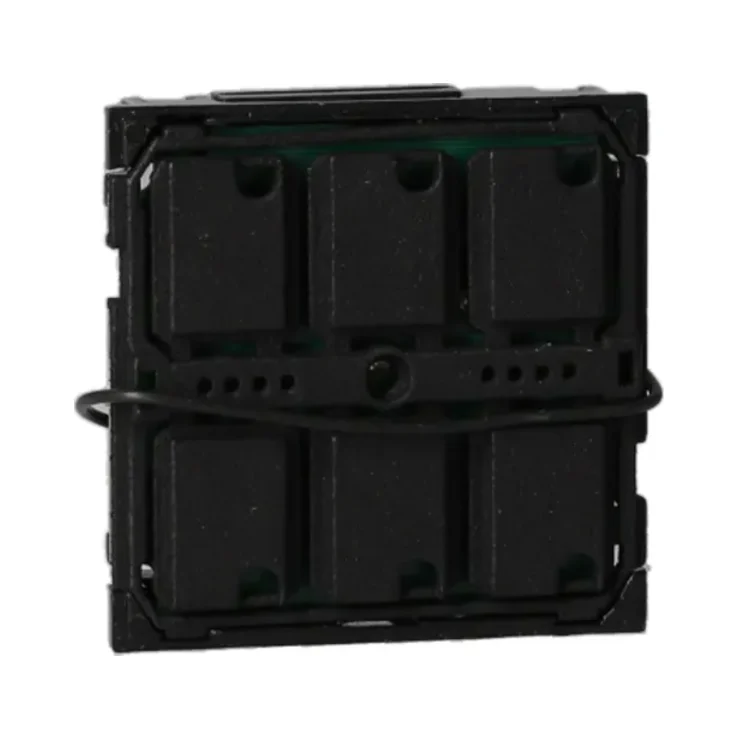

Rako Wireless Control Panel Module – RK-EOS-6
Wireless EOS 6 button control module, complete with 2x CR2016 lithium batteries. Requires a separate RP-EOS-xx-xx cover plate kit. (Can be used for both 3 and 6 button cover plate kits).
Rako’s all new EOS push button control modules are available as wired or wireless NFC. Built around an all metal screwless flush fascia design, this elegant range offers specifiers and end clients a clean uncluttered look for their projects.
6-Button wireless EOS wall plate controller comes preconfigured with 3 scenes, off and master raise and lower buttons.
The wireless EOS control module is programmable via Rako’s patented NFC (Near Field Communication) technology, allowing each button to trigger a single or multiple commands. Each input is fully customisable, can be addressed to separate Rako Rooms or Channels and activate on press or release, giving a ‘Press and Hold’ function. Additionally each input can trigger an internal macro function.
This product can be programmed with a laptop using Rako’s Rasoft Pro software and the Rako RAMPI programming interface.
The wireless EOS control modules are designed to be flush mounted to standard UK single gang back boxes and are Lithium battery powered, which means they can be mounted anywhere without having to run cabling.
Technical data
| Dimensions | PCB: 50x50x12mm – flush mount only |
|---|---|
| Input supply | 12-18V DC supply from Rakom CAT5 wired network. |
| Fixing | Flush mounting into standard UK single gang back box, minimum 12mm deep. |
| Weight | 100g |
| Battery life | Greater than 3 years |
| Climate range | Temperature +2C to +40C Humidity +5% to 95% non condensing. |
| Standards | Emissions – EN61000-6-3 : 2007 Immunity – EN61000-6-1 : 2007 |
| Communication | Rakom coded fm radio, 433.9MHz |
| Memory | Flash memory (non volatile) |
