Description

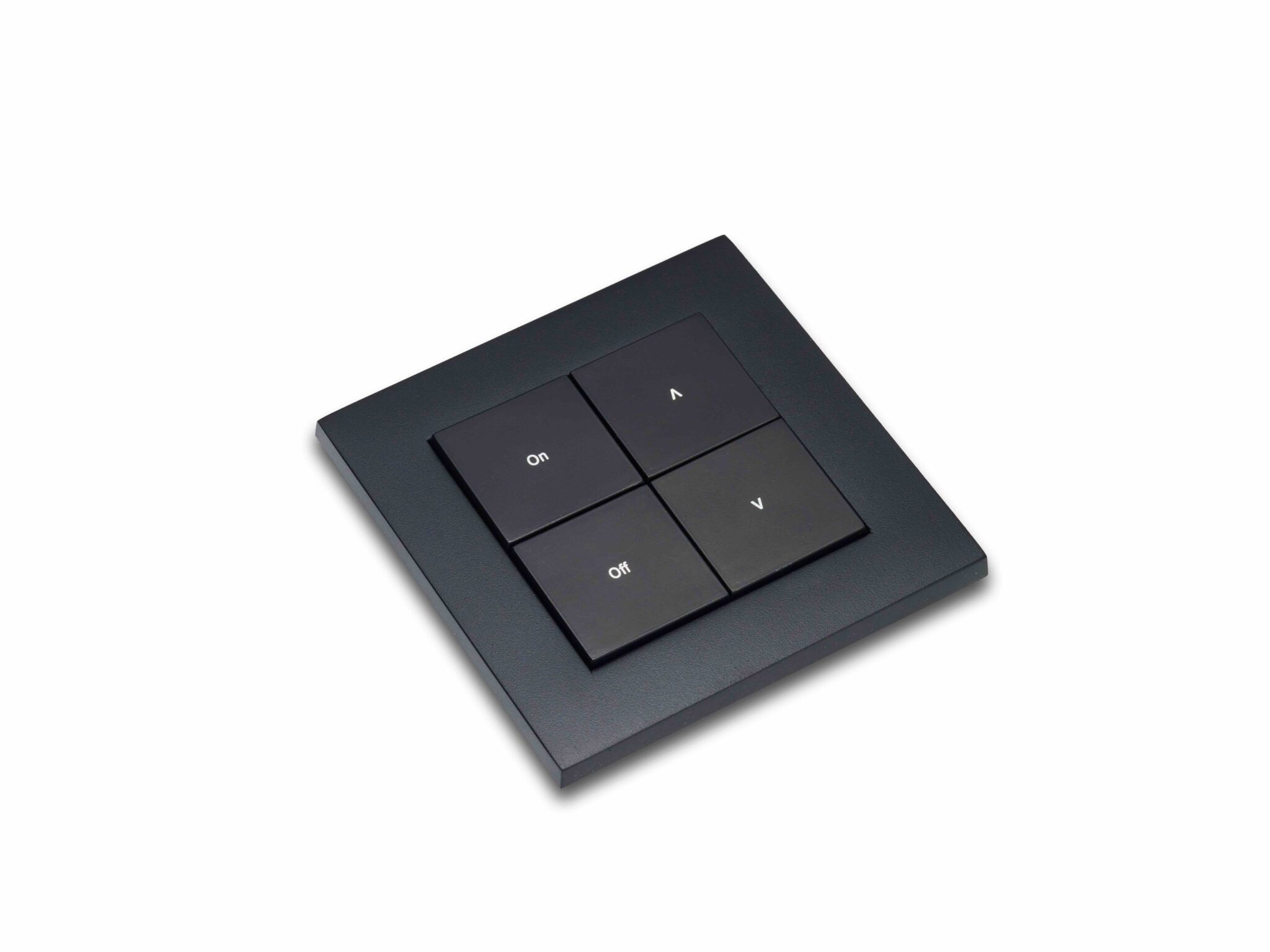

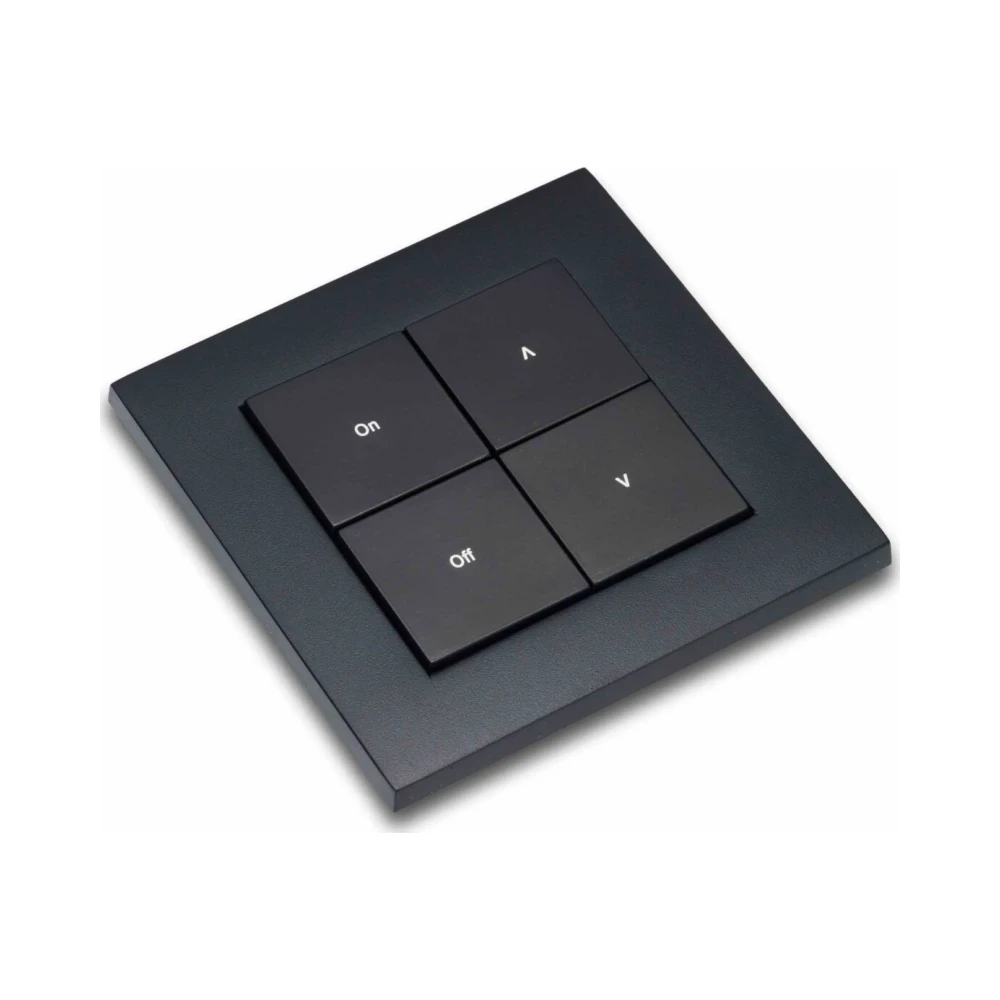

Rako Wired Modular Control Module – WK-MOD-041-W – White Buttons
The Rako WK-MOD-041-W Wired Modular Control Module offers a cutting-edge solution for seamless lighting and device control. Designed with versatility in mind, this module features white buttons and a modular, flush fascia design that suits contemporary interiors. It’s perfect for both specifiers and end clients, and it works well for controlling lighting, curtains, blinds, and audio systems.
Key Features
- Modular Design: The WK-MOD-041-W offers flexibility with three different button sizes across various keypad layouts. This design adapts to diverse control needs, from single room setups to complex multi-room configurations.
- Customizable Backlit Buttons: Each laser-etched button includes fully programmable blue LEDs for both functionality and style. Customize the buttons to meet specific requirements, providing intuitive control at a glance.
- Wired Connectivity: The control module connects directly to the RAKOM wired CAT5 network, ensuring reliable and responsive communication across your system.
- Rasoft Pro Programmable: You can fully program the module using Rako’s Rasoft Pro software. Customize each input to control different Rooms or Channels, activate functions on press or release, and even trigger internal macros.
- Versatile Control Options: Program the module to manage a wide range of functions, including scene selection, scene toggle, level toggle, and macro control. This versatility makes it an essential tool for comprehensive home automation.
- Easy Installation: Install the WK-MOD-041-W easily into standard UK single gang back boxes with a minimum depth of 35mm. It connects using UTP CAT5e or CAT6 cables and features an 8-way Krone punch down terminal.
Specifications
- Dimensions: Control Panel: 86x86x35mm, Surround: 88x88x6mm
- Input Supply: 15V DC from the Rako wired system
- Fixing: Flush mount into standard UK single gang back box
- Weight: 115g
- Climate Range: Operates between +2°C and +40°C, with humidity levels from 5% to 95% (non-condensing)
- Cable Type: UTP CAT5e or CAT6
- Terminal Type: 8-way Krone punch down (screw terminal available by special arrangement)
- Standards Compliance: Meets EN61000-6-3:2007 for emissions and EN61000-6-1:2007 for immunity
- Communication: Uses a wired network with CAN protocol
- Memory: Includes flash memory for non-volatile data storage, with firmware upgrades available via RASOFT Pro
Additional Information
To complete setup and configuration, use a WK-HUB and Rasoft Pro programming software. This setup allows detailed customization to meet your project’s specific needs. Additionally, you can order hand-finished metal surrounds separately in various finishes to match your interior design.
