Description

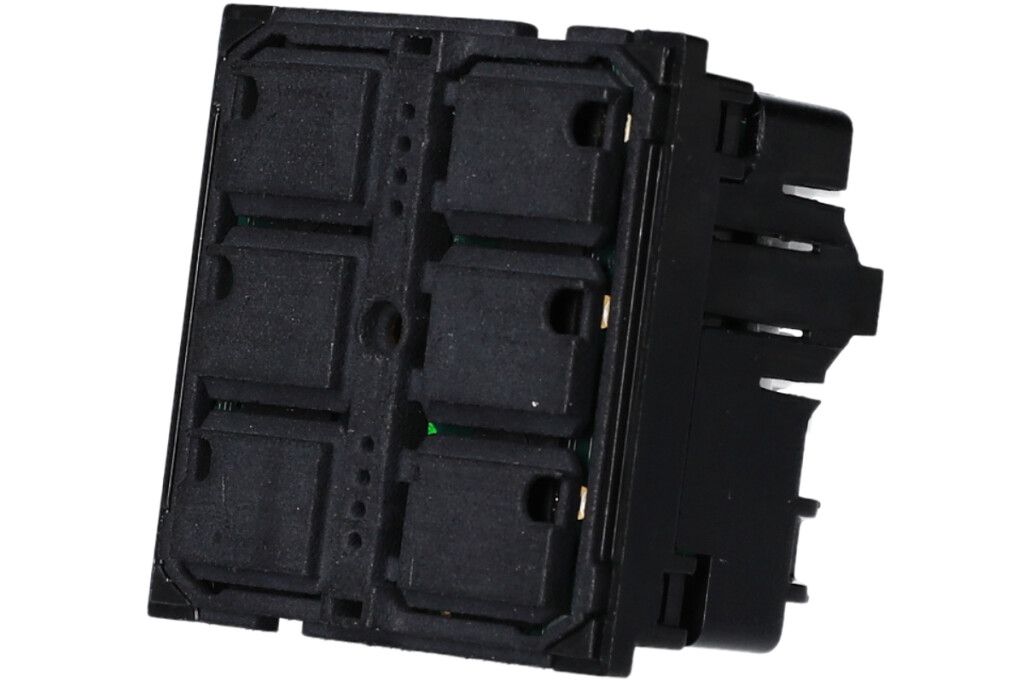

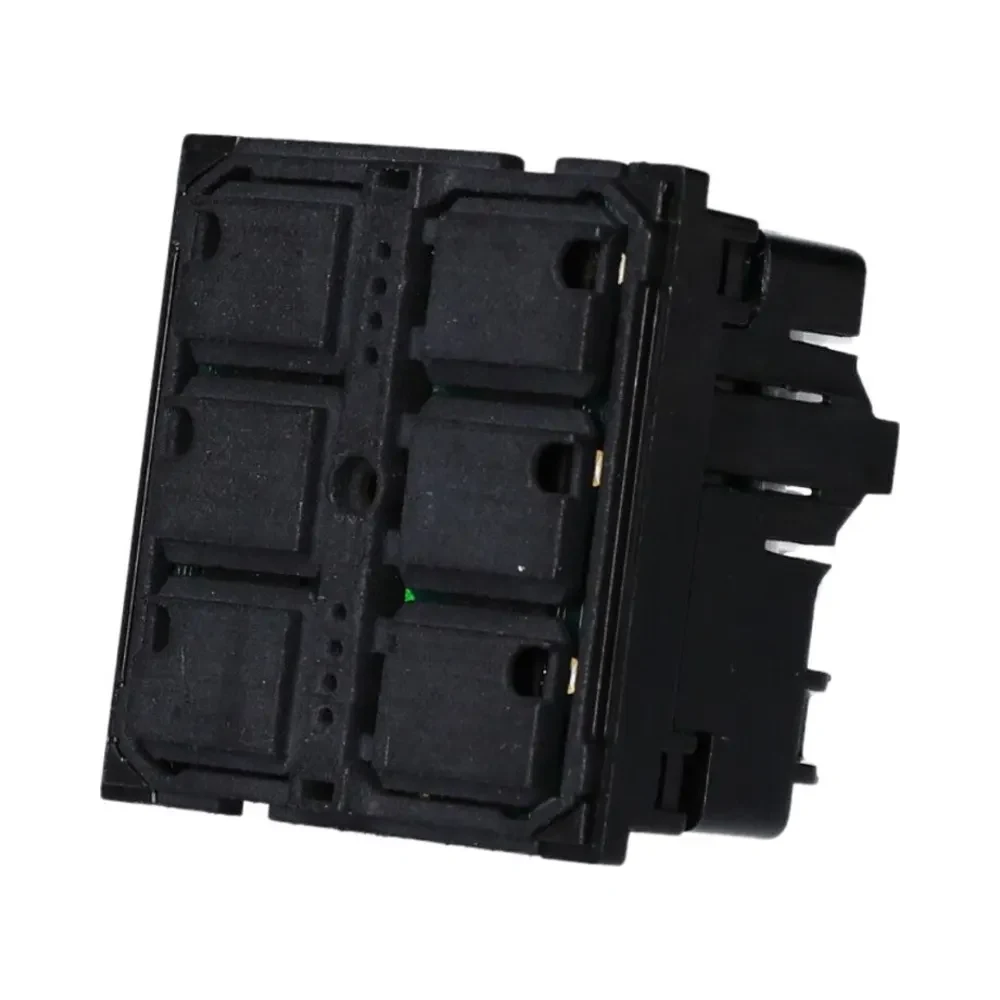

Rako Wired Control Panel Module – WK-EOS-6

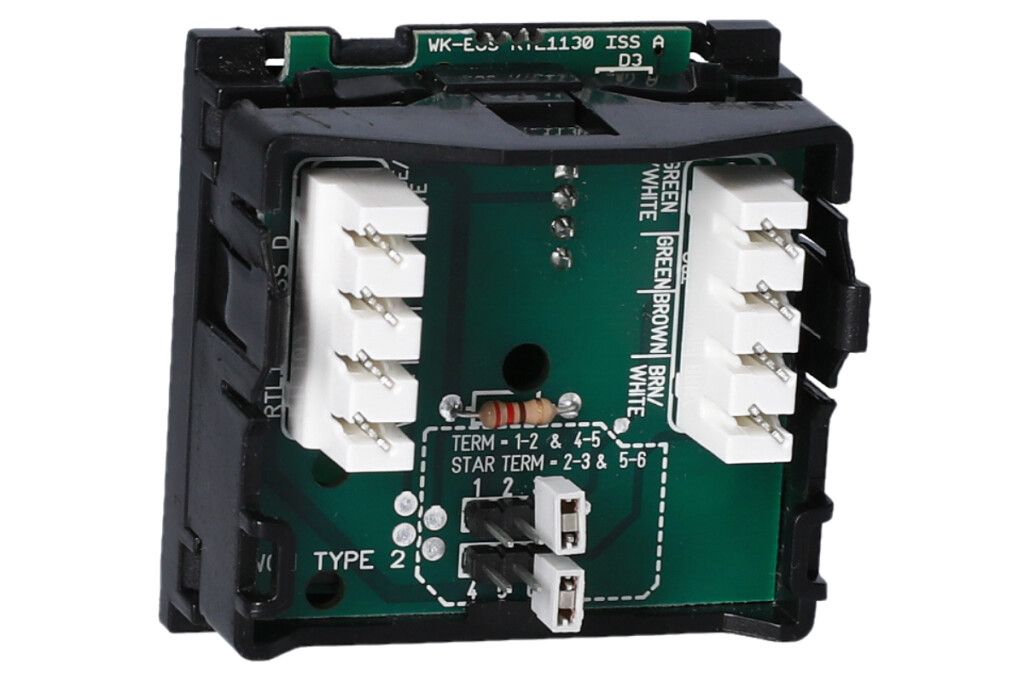

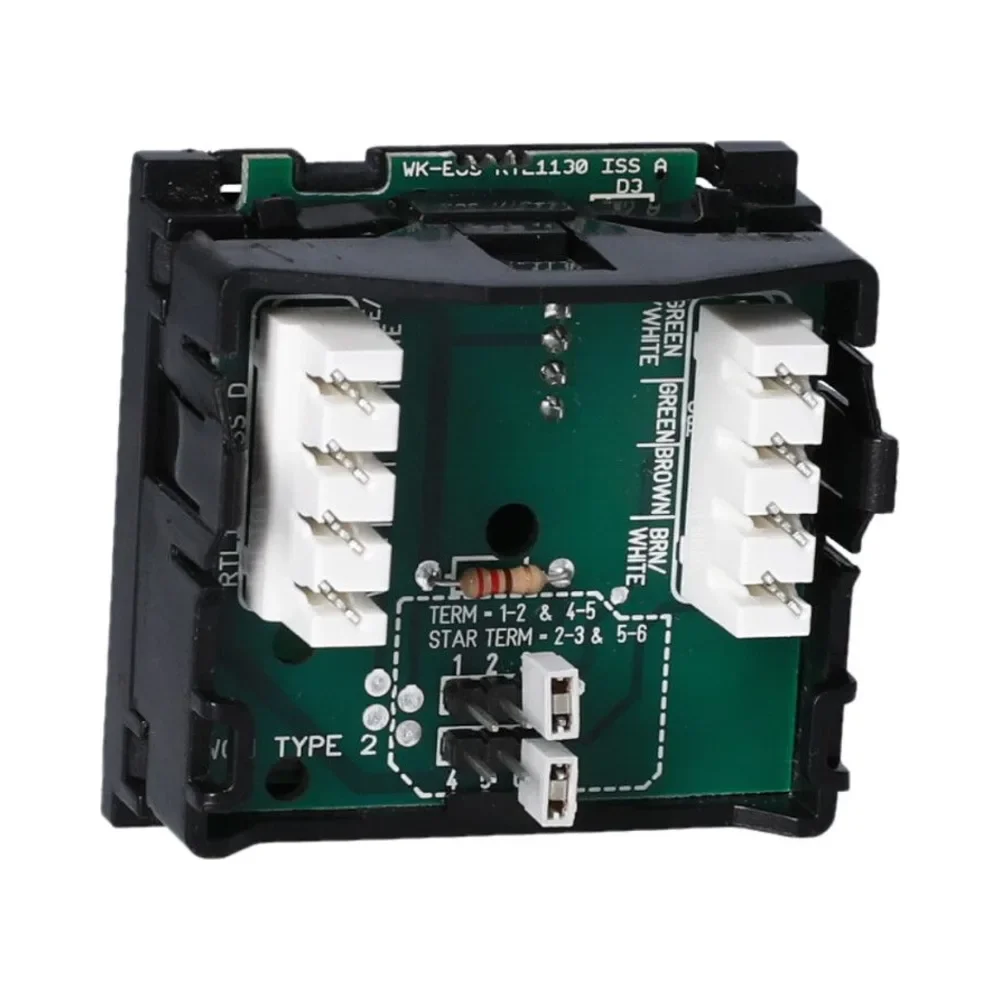

Wired EOS 6 button control module, complete with removable CAT5e/6 cable punch down board. Each LED back-lit button is configurable using the Rasoft Pro programming software. Requires a separate WP-EOS-xx-xx cover plate kit. (Can be used for both 3 and 6 button cover plate kits).
Rako’s all new EOS push button control modules are available as wired or wireless NFC. Built around an all metal screwless flush fascia design, this elegant range offers specifiers and end clients a clean uncluttered look for their projects.
6-Button wired EOS wall plate controller connects to the RAKOM wired CAT5 network and is preconfigured with 3 scenes, off and master raise and lower buttons.
The wired EOS control module is programmable via Rako’s Rasoft Pro software. Each input is fully customisable and can be addressed to separate Rako Rooms or Channels and activate on press or release, giving a ‘Press and Hold’ function. Additionally each input can trigger an internal macro function. Each button is complete with a blue LED indicator.
WK-EOS control modules are designed to be flush mounted to standard UK single gang back boxes.
Technical data
| Dimensions | PCB: 50x50x12mm – flush mount only |
|---|---|
| Input supply | 12-18V DC supply from Rakom CAT5 wired network. |
| Fixing | Flush mounting into standard UK single gang back box, minimum 35mm deep. |
| Weight | 120g |
| Climate range | Temperature +2C to +40C Humidity +5% to 95% non condensing. |
| Cable type | UTP CAT5e or CAT6 |
| Terminal type | 8 way Krone punch down (screw terminal option available) |
| Standards | Emissions – EN61000-6-3 : 2007 Immunity – EN61000-6-1 : 2007 |
| Communication | Rakom wired network |
| Memory | Flash memory (non volatile) Firmware upgrades via RASOFT programming software |
