Description

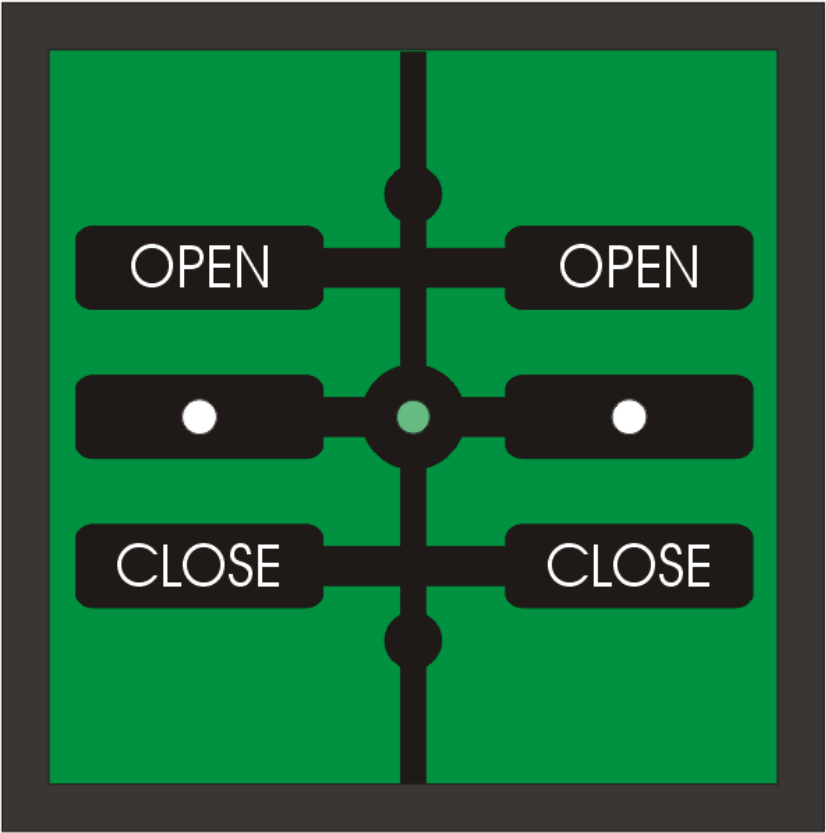

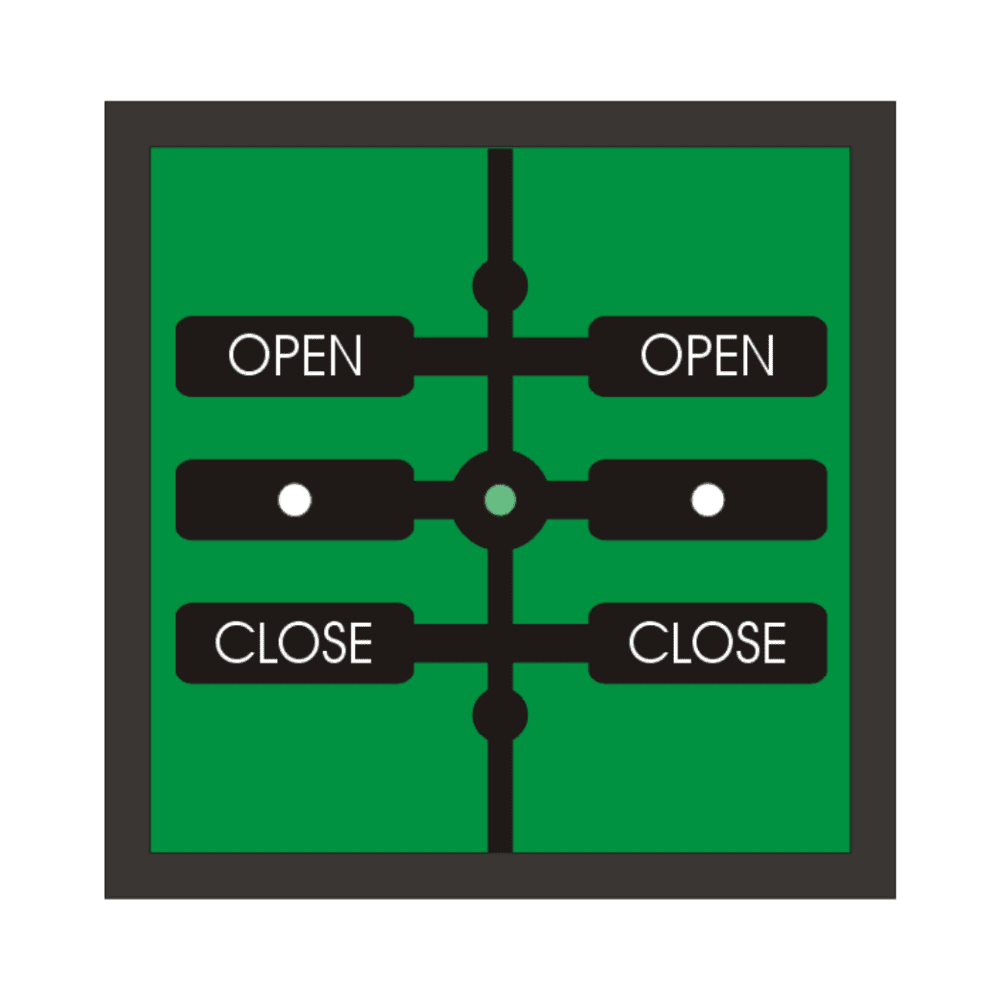

Rako Classic Plate 6-Button Wireless Push Button Module
6-Button wireless modular controller with dual open, stop and close buttons.
A wireless 6 button, push button control module that has several fixing options. Based on the 50 x 50mm Euro module, RCM units are modules only and always require a front plate kit. Panels can either be surface mounted using the pattress, which gives a depth of 14mm, or flush mounted into a standard single gang UK back-box.
Lithium battery powered so can be mounted anywhere without having to run cabling. Battery life calculated as being 3 years, based on pressing a button 30 times a day.
The RCM-060 wireless push button control module gives dual open, stop and close control for curtains, blinds & projector screens and is used with the Rako RACUB module or RAK4-R.
The wall plate controllers are designed to be mounted anywhere, be it flush mounting to UK back-boxes or simply surface mounted to any flat surface using the pattress provided. It is also suitable for all switch accessory plates that use a 50x50mm grid and cover plate arrangement.
Rakom coded radio transmission eliminates the need for any data or power cabling ensuring that the system can be installed with minimum fuss and disruption.
The unit provides full scene programming.
Technical data
| Dimensions | 50x50x12mm – flush mount 92x92x14mm – surface mount |
|---|---|
| Input supply | 6V DC – 2x 3V Lithium coin cell CR2016 |
| Fixing | Flush mounting into standard UK single gang back box, minimum 12mm deep. Surface mounting on standard single gang UK or European back box or direct to flat surface. |
| Weight | 100g |
| Battery life | Greater than 3 years |
| Climate range | Temperature +2C to +40C Humidity +5% to 90% non condensing |
| Standards | Emissions – EN61000-6-3 : 2001 Immunity – EN61000-6-1 : 2001 |
| Communication | Rakom coded fm radio, 433.9MHz |
| Memory | Flash memory (non volatile) |
