Description

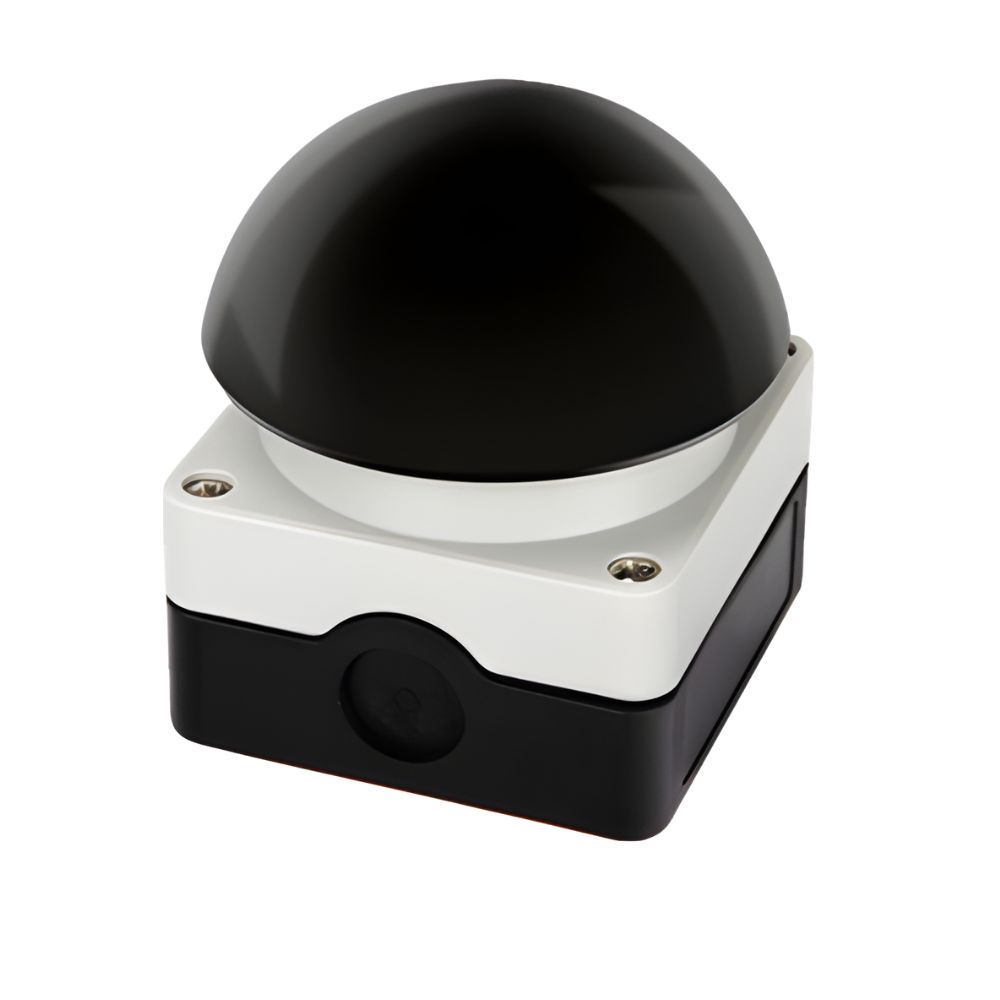

PSR/B IP65 Auto Reset Push Button Switch Black
Momentary Push Button with 1NO 1NC Contacts
The PSR/B IP65 auto reset push button switch black is a robust and reliable control device designed for industrial and commercial applications. Featuring a momentary (auto reset) function, it returns to its original position after actuation, making it ideal for control circuits and signalling systems.
With an IP65 rating, this push button switch is protected against dust and water ingress, ensuring dependable operation in harsh environments. The unit can also be cleaned using high pressure systems up to 100 Pa, making it suitable for demanding installations.
The switch is configured with 1 normally open (NO) and 1 normally closed (NC) contact, providing flexible integration into a wide range of control systems.
Built for durability, it offers low contact resistance (≤100mΩ) and high insulation resistance (≥100MΩ at 500VDC), ensuring long-term electrical performance.
Key Features
- IP65 auto reset (momentary) push button switch
- Black head for clear identification
- 1NO + 1NC contact configuration
- Dust and water resistant construction
- Suitable for industrial and commercial control systems
- Washable with high pressure cleaning (up to 100 Pa)
- Low contact resistance ≤100mΩ
- High insulation resistance ≥100MΩ (500VDC)
- Durable and reliable operation
Technical Specifications
- Model: PSR/B
- Type: Auto Reset Push Button Switch
- Operation: Momentary (spring return)
- Colour: Black
- Contacts: 1NO + 1NC
- IP Rating: IP65
- Contact Resistance: ≤100mΩ
- Insulation Resistance: ≥100MΩ (500VDC)
