Prysmian EV Cable 3 Core 6mm + CAT5e – Length Cut per Meter

SKU: EV CABLE 3C+4PR DATA 6.00MM/1M
73 In stock
This item cannot be back-ordered
Confirm Availability

This single cable combines power and data, streamlining installations and reducing complexity.

It minimizes fixings, drilling, and waste, which speeds up the installation process.

The hard-wired connection avoids Wi-Fi risks and boosts EV smart charger performance.

Prysmian’s F/UTP data cable prepares you for future technological upgrades.

Use the data cable for connectivity or signal transmission, such as current monitoring via a Current Transformer.

The Prysmian EV Cable 3x6mm XLPE CAT5e combines power and data in one durable cable. Ideal for EV charge points, it offers reliable performance. It is available in both armoured and non-armoured versions for flexible installation.

£7.00 + VAT

(incl. VAT £8.40)

Description

EV Cable 3 Core 6mm + CAT5e – Length Cut per Meter

Prysmian 3×6.0 CU XLPE PVC CAT 5e PE PRY EV BLK

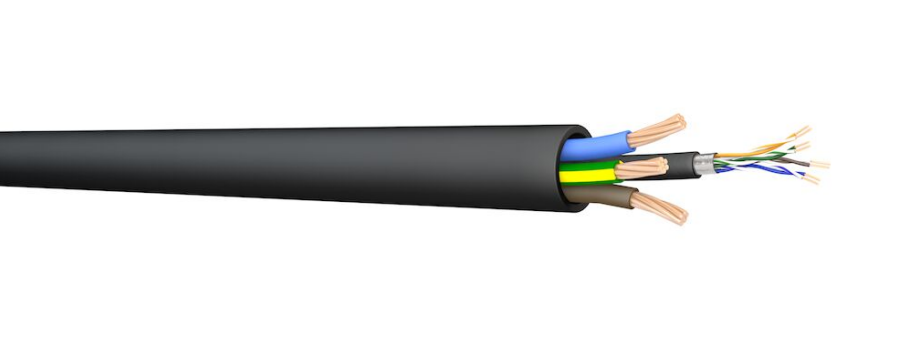

The Prysmian EV Cable 3C+4PR Data 6.00mm simplifies the connection of fixed electric vehicle (EV) charge points to distribution boards or domestic consumer units. The Prysmian EV Cable 3x6mm XLPE CAT5e combines three copper power cores with a four-pair screened data cable, all within a durable outer sheath.

Key Applications:

  • This cable efficiently integrates power and data connections, ideal for EV charge points.
  • The data cores, rated at the same voltage as the power cores, ensure reliable transmission.
  • Additionally, the four-pair data cable in the Prysmian EV Cable 3x6mm XLPE CAT5e features twisted, screened, and sheathed cores for added protection.

Features and Benefits:

  • Power and Data Integration: This single cable combines power and data, streamlining installations and reducing complexity.
  • Enhanced Efficiency: It minimises fixings, drilling, and waste, which speeds up the installation process.
  • Reliable Connection: The hard-wired connection avoids Wi-Fi risks and boosts EV smart charger performance.
  • Future-Ready Technology: Prysmian’s F/UTP data cable prepares you for future technological upgrades.
  • Versatile Data Usage: Use the data cable for connectivity or signal transmission, such as current monitoring via a Current Transformer.
  • Type of cores: Brown, Blue, Green/Yellow & Colour Coded Cores Twisted in Pairs
  • Amount of strands: 7 Strands Per Core

Downloads

View Product Data Sheet

Additional information

Brand

Prysmian

Product

EV Cable

Size

6mm

Number of Cores

3 Core

Range

PRY EV XLPE PVC + CAT 5e

Length

Cut Length per 1 Meter
