Description
Double Pole Cut-Out for Single Phase Lighting Systems

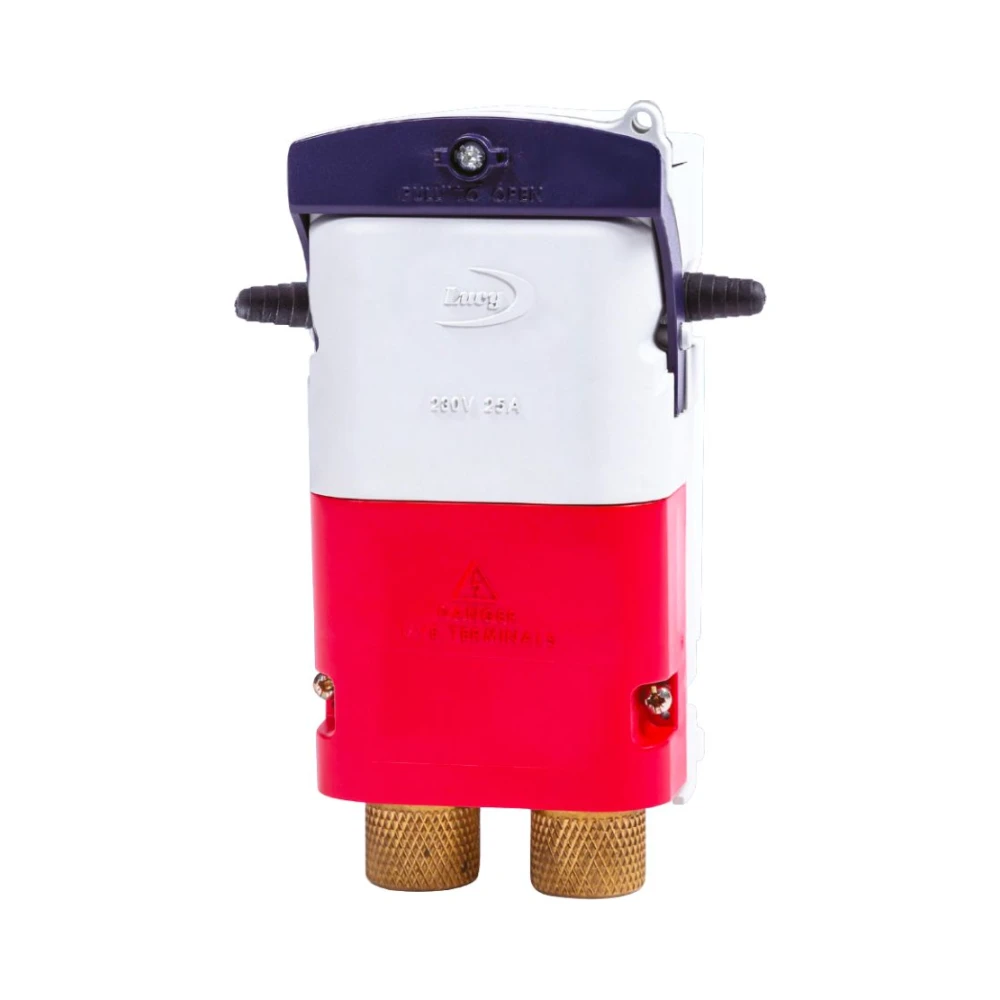

Niglon T060G12 Titan Type Cut-Out
The Niglon T060G12 Titan Type Cut-Out is a double pole, single fuse service cut-out engineered for single phase street and external lighting systems operating at 230V. Rated up to 25A and manufactured from high-performance thermoplastics, it features an integrated earth block, brass gland plate with twin 20mm entries, and IP43 ingress protection. Designed for professional lighting infrastructure, it provides reliable isolation, secure termination, and long-term durability in demanding outdoor environments.
✨ Key Features – Niglon T060G12 Titan Type Cut-Out
- Double pole configuration for single phase supplies
- Single fuse design accepting IEC 269-1 and BS88 Part 1 AC16 tag fuses
- Integrated earth block for safe termination
- Brass gland plate with 2 × 20mm cable entry points
- IP43 ingress protection for external lighting installations
📐 Technical Overview – Niglon T060G12 Titan Type Cut-Out
- Fuse type: Single
- Maximum current: 25A
- Voltage: 230V
- Ingress protection: IP43
- Dimensions: 150 × 81 × 65mm (H × W × D)
