40kA Type 2 Surge Protection Device

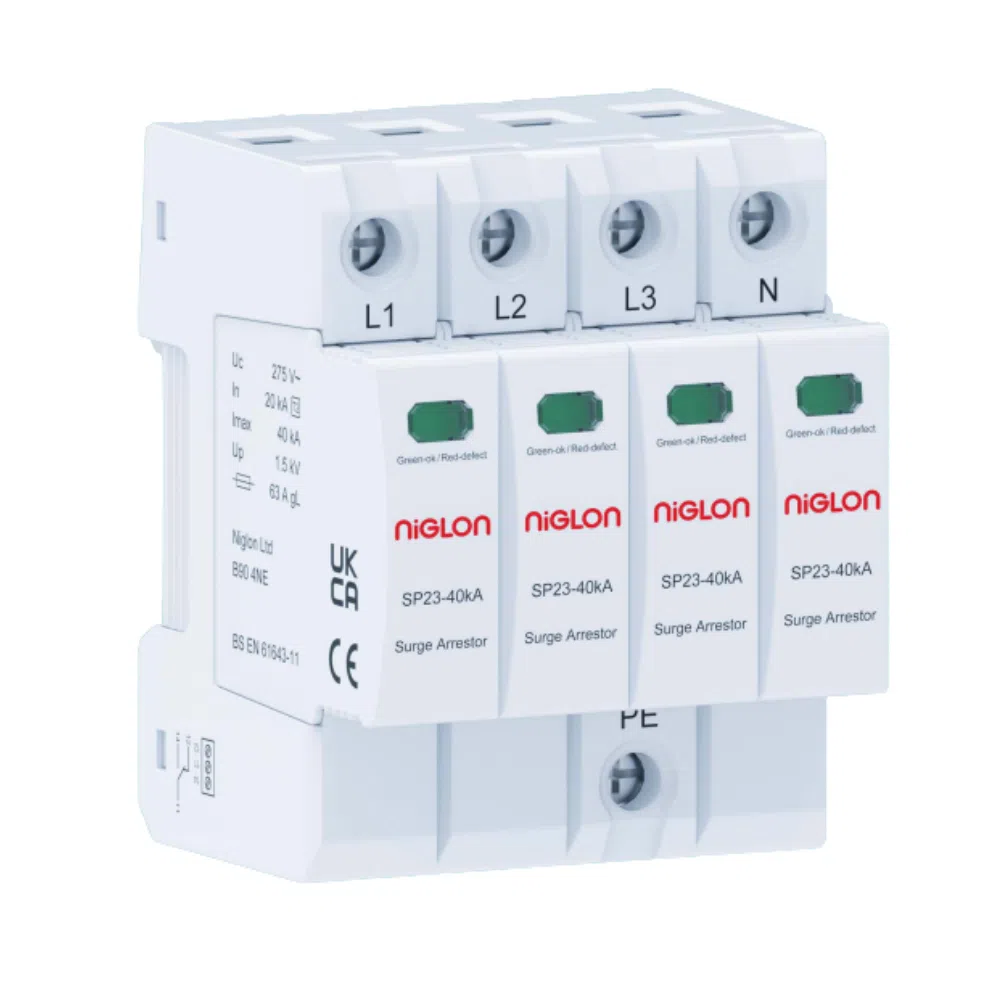

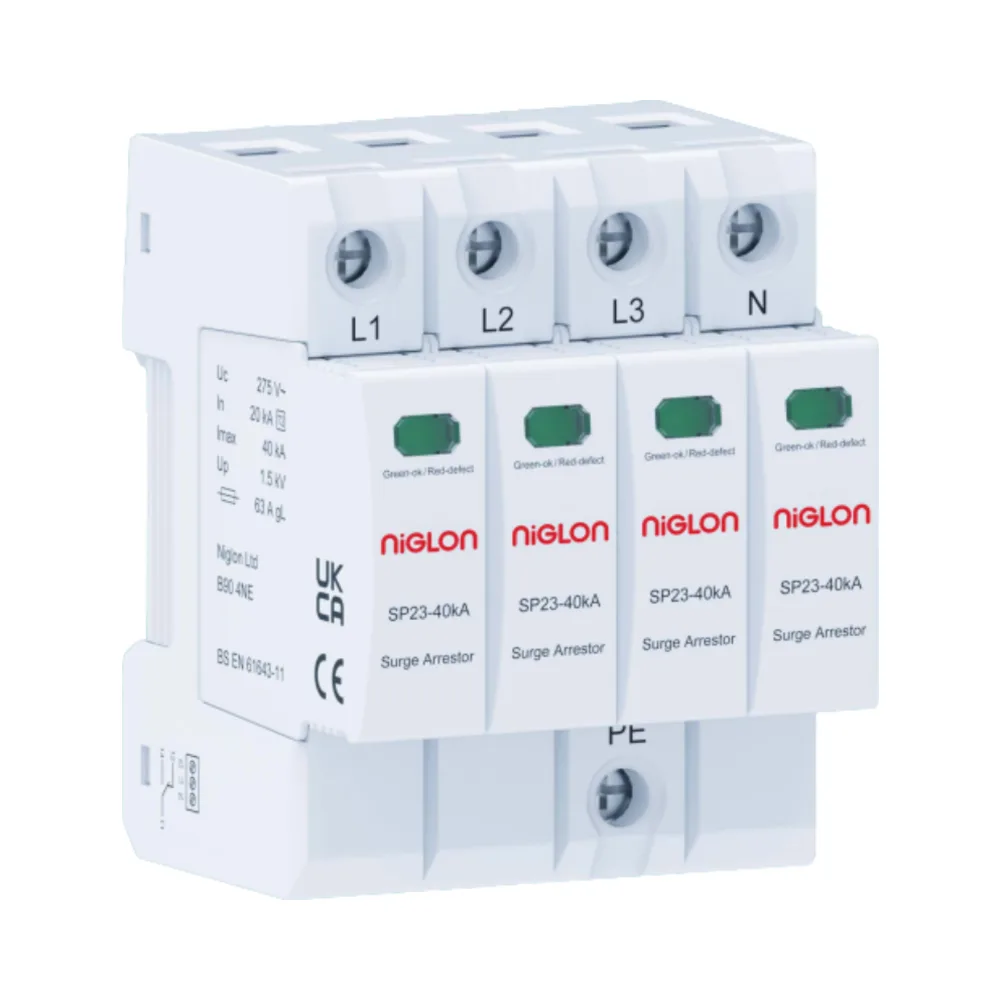

Niglon SP23S-3PN/40KA – 3 Pole + Neutral Lightning & Surge Arrestor with Remote Contact
The Niglon SP23S-3PN/40KA 40kA Type 2 Surge Protection Device (SPD) is a four-module combined lightning and surge arrestor, designed to protect electrical installations from transient overvoltages. Ideal for distribution panels, this SPD is particularly suited for areas with low exposure to lightning strikes, ensuring reliable protection for sensitive equipment in commercial and industrial environments.
Built with a high-energy MOV protective element, this SPD provides efficient surge suppression. It features a remote signal contact for external monitoring, allowing for quick fault detection, while its green/red fault indicator ensures easy visual status checks.
Key Features
- Type 2 SPD – Protects against transient overvoltages caused by switching operations and indirect lightning strikes
- 3 Pole + Neutral (3PN) Configuration – Designed for TN-S network systems
- 40kA Maximum Discharge Current (Imax 8/20µs) – Handles high-energy surges
- 20kA Nominal Discharge Current (In 8/20µs) – Provides continuous protection
- 275V Max Continuous Operating Voltage (Uc) – Suitable for standard electrical networks
- 1.5kV Voltage Protection Level (Up) – Reduces overvoltage impact on equipment
- Remote Signaller Contact – Enables external system monitoring
- Thermal Protection with Fault Indicator – Green (OK) / Red (Replace)
- Four-Module DIN Rail Mounting – Fits standard distribution boards
- UL94 V-0 Thermoplastic Housing – Ensures high fire resistance
- Certified to IEC 61643-11:2011 & IEC 61643-11:2012 – Compliant with international surge protection standards
Technical Specifications of the Niglon SP23S-3PN/40KA 40kA Type 2 Surge Protection Device
- Product Code: SP23S-3PN/40KA
- Type: Type 2 SPD
- Network System: TN-S
- Mode of Protection: L-PE, N-PE
- Protective Element: High Energy MOV
- Mounting: DIN Rail (4 Modules)
- Max Cable Size: 35mm²
- Terminal Screw Torque: 3.0Nm
- Remote Signaller: Yes (Max Cable 1.5mm²)
- Max Continuous Operating Voltage (Uc): 275V
- Nominal Discharge Current (In 8/20µs): 20kA
- Max Discharge Current (Imax 8/20µs): 40kA
- Voltage Protection Level (Up): 1.5kV
- Housing Material: Thermoplastic UL 94 V-0
- Thermal Protection: Yes
- Compliance: IEC 61643-11:2011, IEC 61643-11:2012
- Backup Protection: Niglon ref. MCB10C3-63 (if required, see technical drawing)
Why Choose This Product?
The Niglon SP23S-3PN/40KA SPD is a high-quality surge protection device, providing reliable overvoltage suppression for three-phase electrical systems. With remote monitoring capability, high surge discharge capacity, and compliance with international standards, it is a trusted solution for safeguarding electrical installations in commercial and industrial applications.
