40kA Type 2 Surge Protection Device

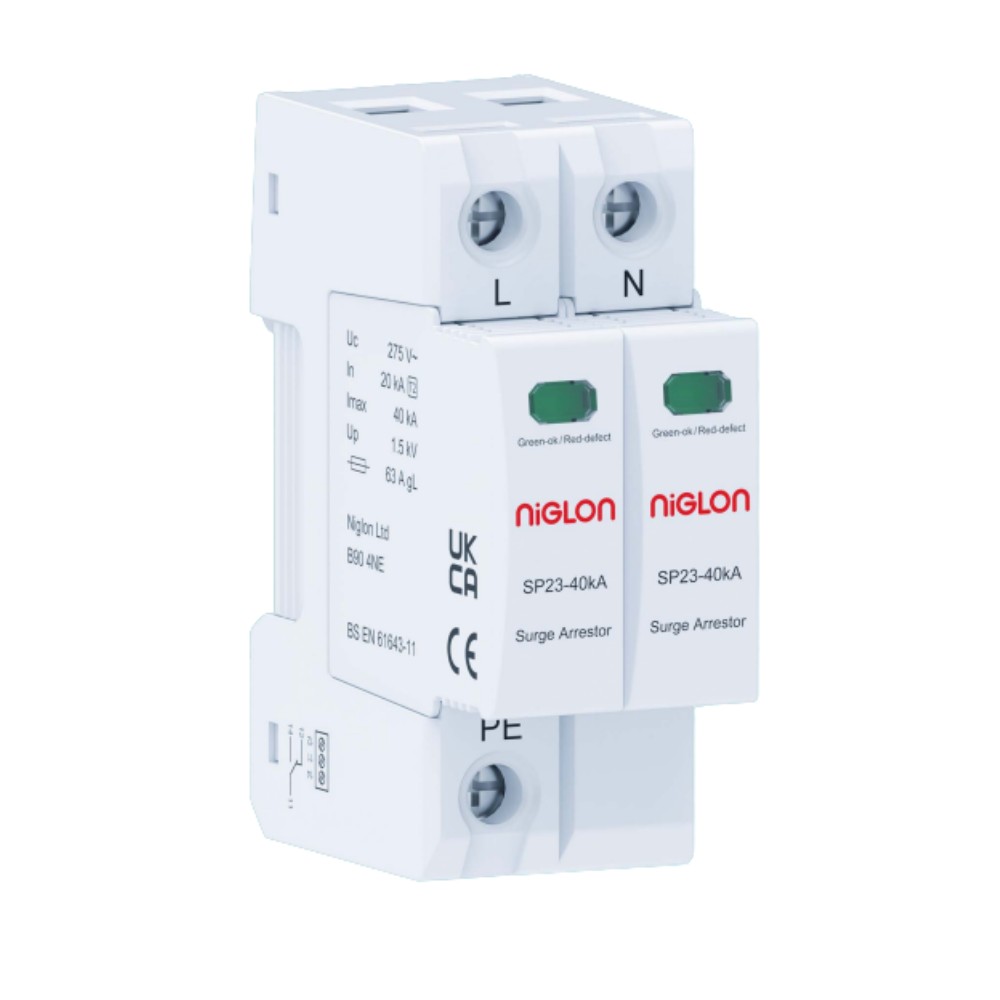

Niglon SP23S-1PN – Single Pole + Neutral Lightning & Surge Arrestor
The Niglon SP23S-1PN 40kA Type 2 Surge Protection Device (SPD) is a high-performance surge arrestor, designed to protect electrical installations from transient overvoltages caused by lightning strikes and power fluctuations. This 2-module SPD is suitable for use in distribution panels, offering effective suppression of high-energy surges in commercial and industrial environments.
Equipped with a remote signal contact, the SP23S-1PN allows for external monitoring, ensuring quick detection of system faults. The green/red fault indicator provides a clear visual status, while its compact DIN rail-mounted design ensures easy integration into existing electrical systems.
Key Features
- Type 2 SPD – Designed for protection against transient overvoltages
- Single Pole + Neutral (1PN) Configuration – Suitable for TN-S earthing systems
- 40kA Maximum Discharge Current (Imax 8/20µs) – Handles high-energy surges
- 20kA Nominal Discharge Current (In 8/20µs) – Ensures continuous protection
- 275V Max Continuous Operating Voltage (Uc) – Ideal for standard electrical networks
- 1.5kV Voltage Protection Level (Up) – Provides effective surge suppression
- Remote Signaller Contact – Enables external monitoring for system fault detection
- Thermal Protection with Fault Indicator – Green (OK) / Red (Replace)
- Compact 2-Module DIN Rail Mounting – Fits standard distribution boards
- UL94 V-0 Thermoplastic Housing – Ensures fire resistance for enhanced safety
- Certified to IEC 61643-11:2011 & IEC 61643-11:2012 – Meets international surge protection standards
Technical Specifications
- Product Code: SP23S-1PN/40KA
- Type: Type 2 SPD
- Network System: TN-S
- Mode of Protection: L-PE, N-PE
- Protective Element: High Energy MOV
- Mounting: DIN Rail (2 Modules)
- Max Cable Size: 35mm²
- Terminal Screw Torque: 3.0Nm
- Remote Signaller: Yes (Max Cable 1.5mm²)
- Max Continuous Operating Voltage (Uc): 275V
- Nominal Discharge Current (In 8/20µs): 20kA
- Max Discharge Current (Imax 8/20µs): 40kA
- Voltage Protection Level (Up): 1.5kV
- Housing Material: Thermoplastic UL 94 V-0
- Thermal Protection: Yes
- Compliance: IEC 61643-11:2011, IEC 61643-11:2012
- Backup Protection: MCB6B1-63 (if required, see technical drawing)
Why Choose This Product?
The Niglon SP23S-1PN 40kA SPD is a trusted surge protection solution, providing high-energy suppression, remote monitoring capability, and compact installation. Designed for distribution panels in commercial and industrial environments, this SPD safeguards electrical systems against power disturbances.
Compact SPD Alternatives – SP23S-1PN
Consider the SP23S-1PN/C40KA SPD if you need a higher discharge rating.
The SP12S-1PN SPD offers an effective combination of Type 1 and Type 2 protection.
