Description

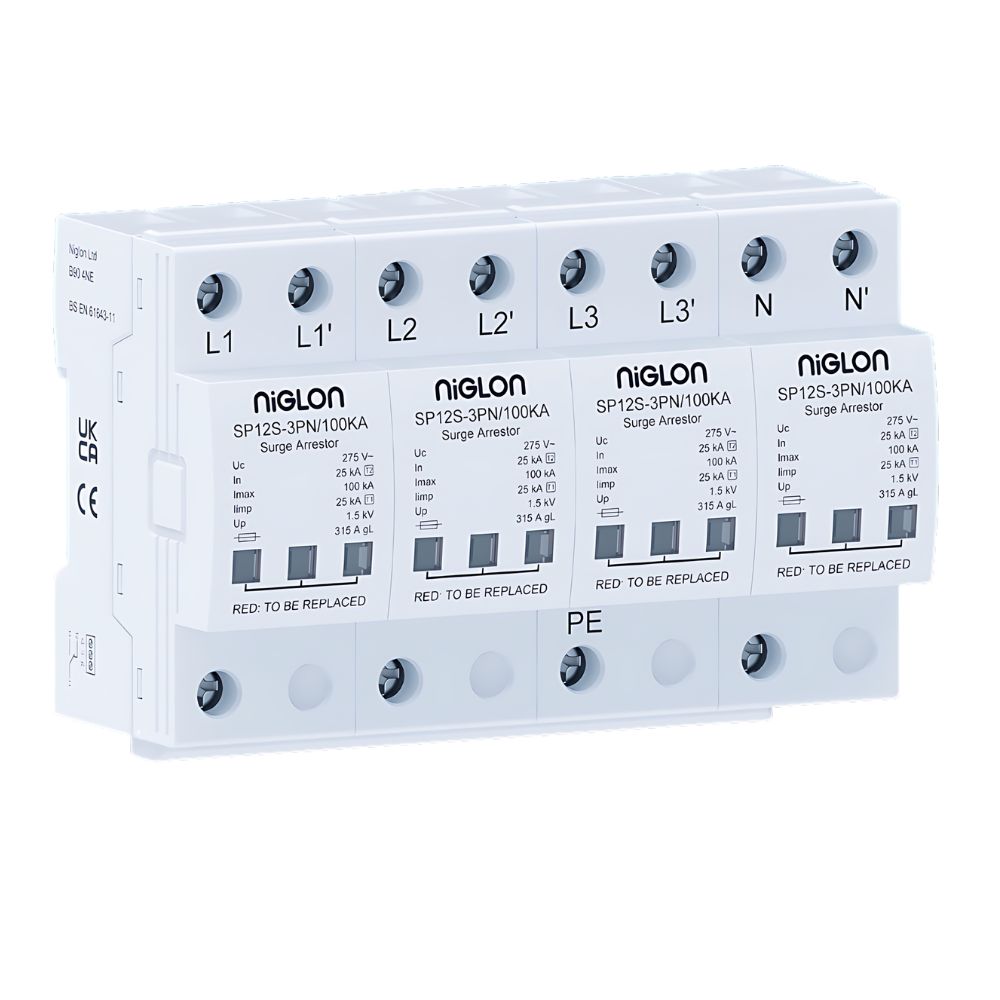

Niglon SP12S-3PN/100KA Type 1+2 SPD
3 Phase Surge Protection for High-Risk Installations
The Niglon SP12S-3PN/100KA Type 1+2 SPD is a high-performance surge protection device designed to protect electrical installations from lightning strikes and transient overvoltages. Suitable for TN-S 3 phase (3P+N) systems, it is ideal for incoming distribution boards.
With a maximum discharge current of 100kA and nominal discharge current of 25kA, this device delivers reliable protection in environments with increased lightning exposure.
Key Features
- Type 1+2 SPD (combined lightning and surge protection)
- 3 phase (3P+N) configuration
- Maximum discharge current: 100kA
- Nominal discharge current: 25kA
- Voltage protection level: 1.5kV
- 275V maximum continuous operating voltage
- Remote signalling contacts included
- DIN rail (TS35) mounting
Applications
- Incoming distribution boards
- Commercial and industrial installations
- Buildings with lightning protection systems
The Niglon SP12S-3PN/100KA Type 1+2 SPD provides essential protection against high-energy surge events, helping safeguard electrical systems and connected equipment.
