Description
Type 2 (or 3) Surge Protection Device

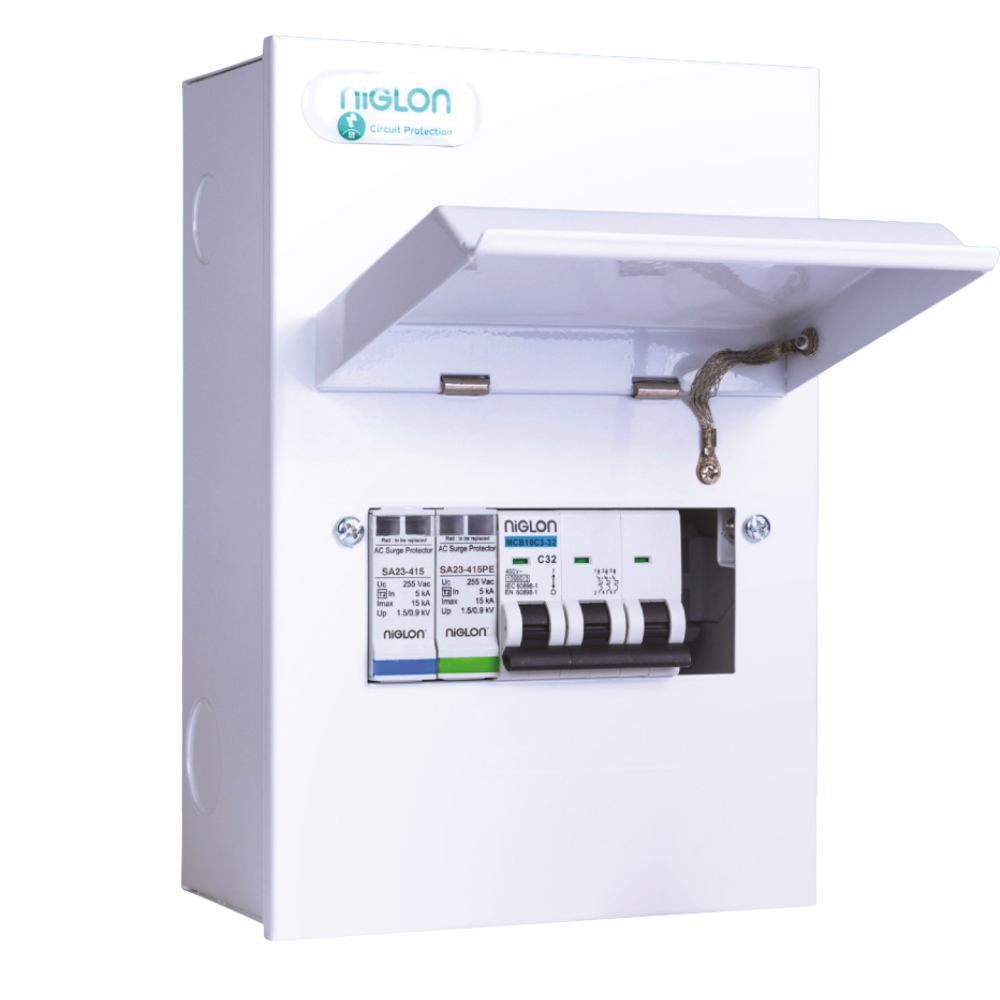

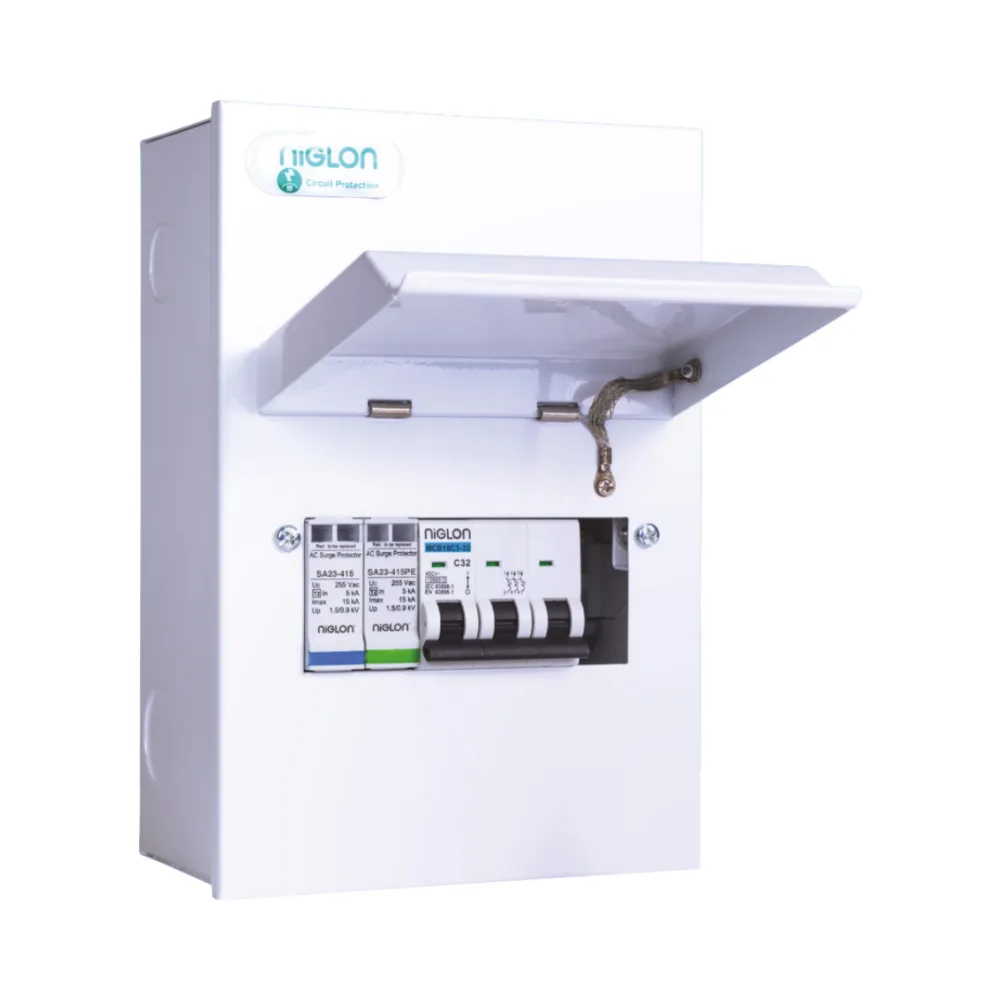

Niglon SAE6M-23-415 – Pre-Mounted SPD Enclosure for TN Earthing Systems
The Niglon SAE6M-23-415 is a pre-mounted Type 2 (or 3) Surge Protection Device (SPD) enclosed in a durable steel housing, designed to protect electrical systems from transient overvoltages. Engineered for TN earthing systems, this SPD provides effective suppression of surges caused by power fluctuations and indirect lightning strikes in industrial and commercial electrical installations.
This ready-to-install surge protection solution includes a 2-module 3P+N SPD rated at 15kA Imax, along with a pre-installed 32A Miniature Circuit Breaker (MCB). The painted steel enclosure offers IP2X protection, ensuring long-lasting durability and compliance with BS EN 61643-11 and IEC 61643-11 standards.
Key Features
- Pre-Mounted Enclosure – Comes with pre-installed SPD and MCB for simplified installation
- Type 2 (or 3) SPD – Provides protection against transient surges and indirect lightning strikes
- Three Phase + Neutral (3P+N) Configuration – Designed for TN earthing systems
- 15kA Maximum Discharge Current (Imax 8/20µs) – Ensures effective surge suppression
- IP2X-Rated Steel Enclosure – Provides protection for internal installations
- Pre-Installed 32A MCB – Manufactured to BS EN 60898 standards
- Wide Operating Temperature Range – Functions within -15°C to 60°C
- Complies with BS EN 61643-11, IEC 61643-11 & UL1449ed.7 – Meets international surge protection standards
Technical Specifications of the Niglon SAE6M-23-415 Type 2 (or 3) Surge Protection Device
Enclosure Specifications
- Material Composition: Painted Steel
- Paint Colour: RAL 9010
- Max Modules: 6
- Degree of Protection: IP2X
- Operating Temperature Range: -15°C to 60°C
- Compliance Standards: BS EN 60898 & 61008
- Dimensions (H x W x D): 237mm x 163mm x 110mm
Circuit Breaker Specifications
- Type: Miniature Circuit Breaker (MCB)
- Curve Type: B
- Rated Current: 32A
- Breaking Capacity: 6kA
- Standard of Compliance: BS EN 60898
SPD Specifications
- Configuration: 2-Module 3P+N SPD
- Max Discharge Current (Imax 8/20µs): 15kA
- Earthing Type: TN
- Standards of Compliance: EN 61643-11, IEC 61643-11, UL1449ed.7
Why Choose This Product?
The Niglon SAE6M-23-415 Surge Protection Device is a pre-mounted SPD enclosure, offering a cost-effective and easy-to-install solution for TN electrical systems. Its steel construction, pre-installed MCB, and compliance with industry standards ensure long-term durability and reliable surge protection in demanding environments.
