Description
Type 2 (or 3) Surge Protection Device

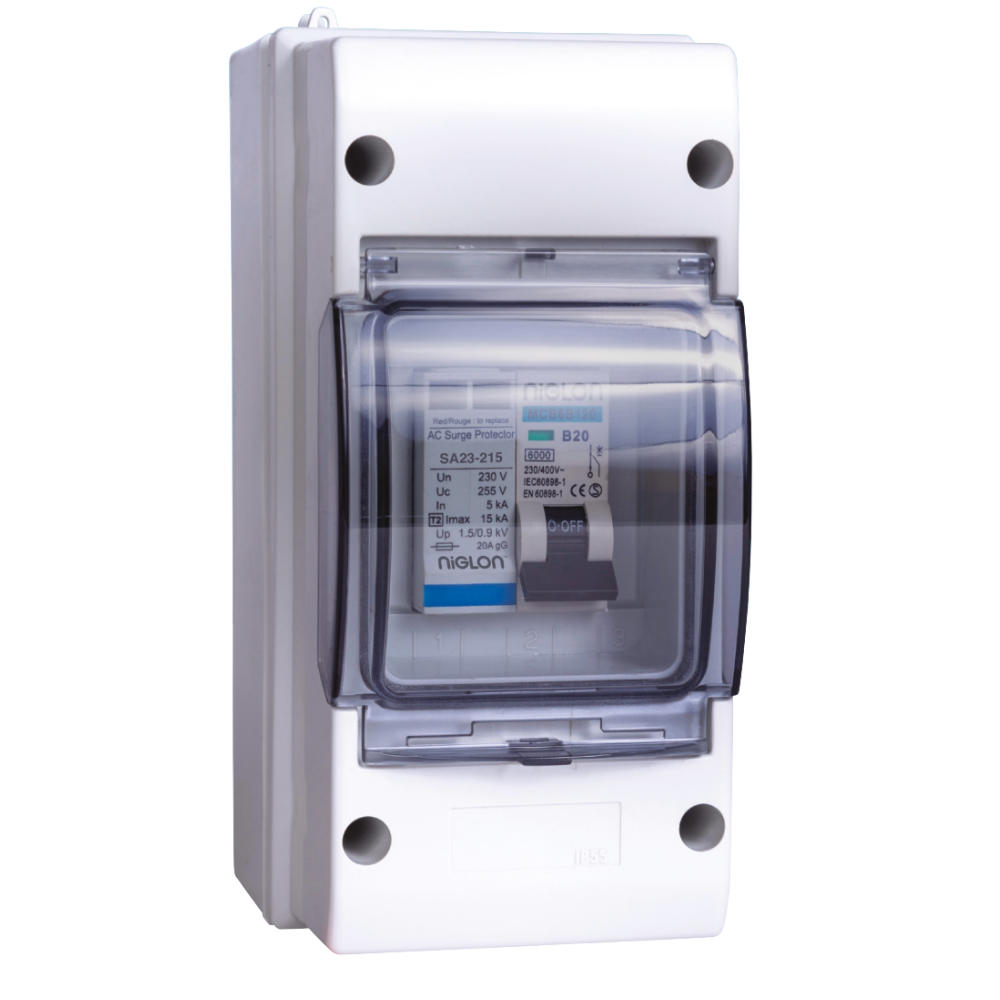

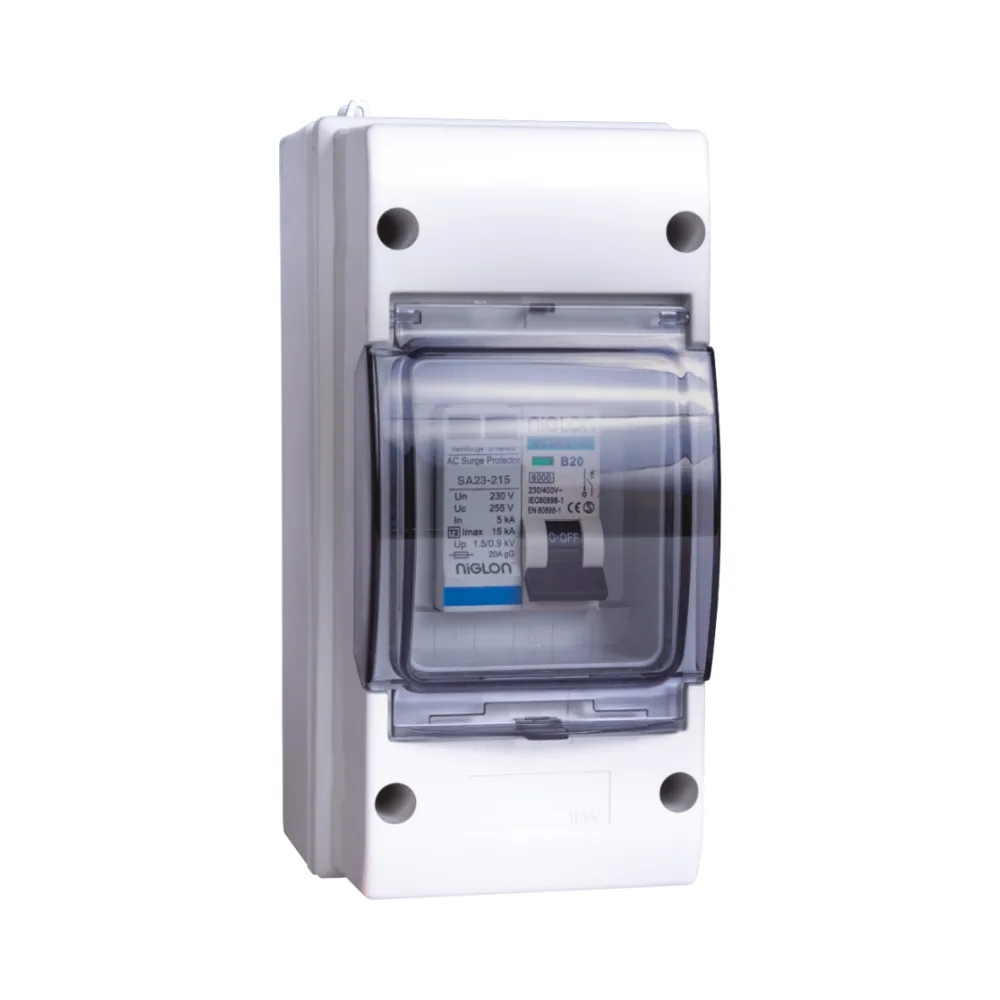

Niglon SAE3-23-215 – Pre-Mounted SPD Enclosure for TT/TN Earthing Systems
The Niglon SAE3-23-215 is a pre-mounted Type 2 (or 3) Surge Protection Device (SPD) enclosed in a durable IP55-rated housing, designed to protect electrical systems from transient overvoltages. Suitable for TT and TN earthing systems, this SPD ensures reliable protection against power surges in residential, commercial, and industrial applications.
The pre-mounted enclosure comes with a single-module SPD, making installation straightforward while minimising wiring complexity. With compliance to BS EN 61643-11 and IEC 61643-1 standards, this SPD provides safe and efficient surge suppression.
Key Features
- Pre-Mounted Enclosure – Simplifies installation with a fully pre-installed SPD
- Type 2 (or 3) SPD – Protects against switching surges and indirect lightning strikes
- Compact & Weather-Resistant Enclosure – IP55-rated for added durability
- Supports TT & TN Earthing Systems – Ensures versatile compatibility
- Temperature Resistance – Operates within -15°C to 60°C
- Complies with BS EN 61643-11, IEC 61643-1, & BS EN 62305-4 – Meets international surge protection standards
Technical Specifications of the Niglon SAE3-23-215 Type 2 (or 3) Surge Protection Device
Enclosure Specifications
- Max Modules: 3
- Degree of Protection: IP55
- Operating Temperature Range: -15°C to 60°C
- Dimensions (H x W x D): 175mm x 83mm x 111mm
- Compliance Standards: BS EN 62305-4
SPD Specifications
- Configuration: 1 Module 1P+N
- Max Discharge Current (Imax 8/20µs): 15kA
- Earthing Type: TT, TN
- Standards of Compliance: EN 61643-11, IEC 61643-1, CE
Why Choose This Product?
The Niglon SAE3-23-215 is a ready-to-install surge protection solution, offering a fully pre-mounted SPD enclosure for TT/TN systems. With its weather-resistant IP55 enclosure, compact size, and compliance with surge protection standards, this SPD ensures reliable performance in critical electrical setups.
