Type 2 (or 3) Surge Protection Device

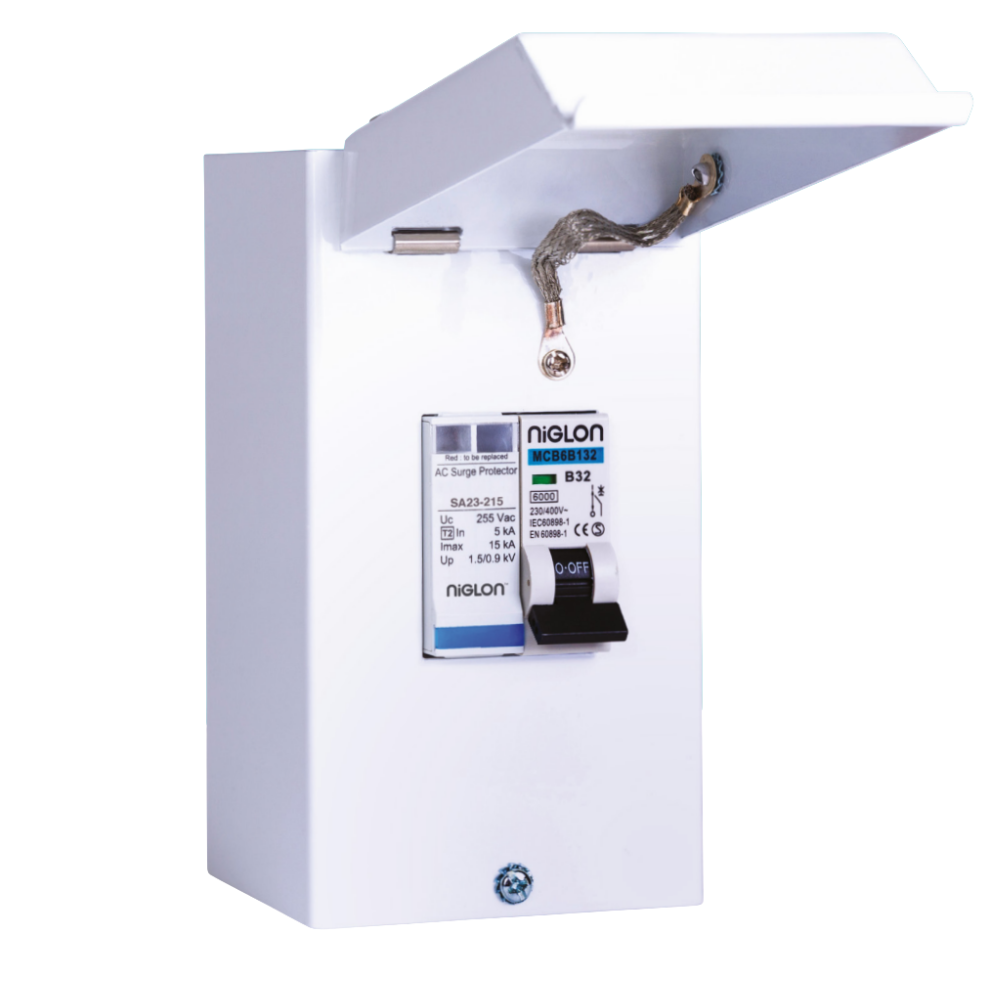

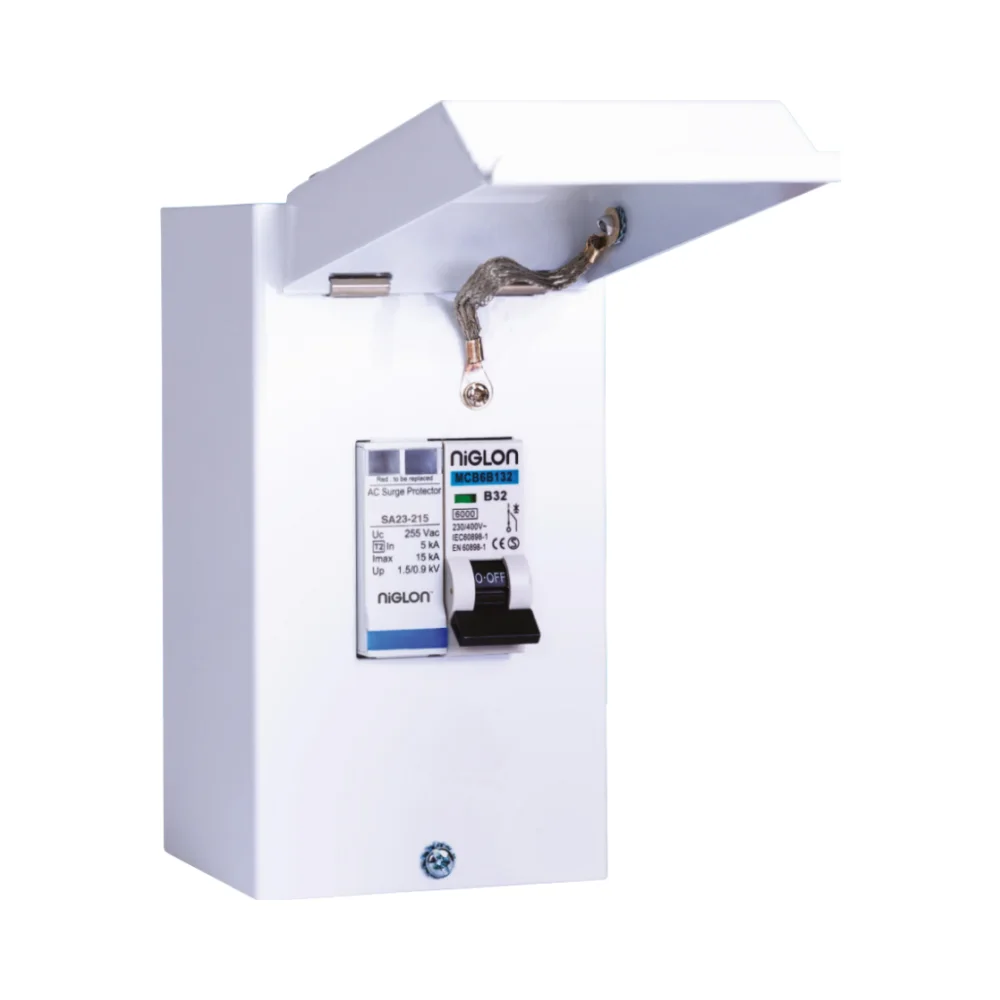

Niglon SAE2M-23-215 – Pre-Mounted SPD Enclosure for TN Earthing Systems
The Niglon SAE2M-23-215 is a pre-mounted Type 2 (or 3) Surge Protection Device (SPD) enclosed in a durable steel housing, designed to safeguard electrical installations from transient overvoltages. Ideal for residential, commercial, and industrial applications, this SPD provides effective protection for TN earthing systems, ensuring enhanced electrical safety and compliance with BS EN 61643-11 standards.
The compact enclosure comes with a pre-installed SPD and MCB, simplifying installation and reducing wiring complexity. Manufactured from RAL 9010 painted steel, the enclosure offers IP2X protection, making it suitable for internal electrical setups.
Key Features
- Pre-Mounted Enclosure – Ready-to-use setup with pre-installed SPD and MCB
- Type 2 (or 3) SPD – Protects against switching surges and indirect lightning strikes
- Compact and Durable Enclosure – Manufactured from painted steel (RAL 9010)
- IP2X Protection Rating – Suitable for internal electrical installations
- Temperature Resistance – Operates within -15°C to 60°C
- Complies with EN 61643-11 & IEC 61643-11 – Ensures industry-standard surge protection
Technical Specifications of the Niglon SAE2M-23-215 Type 2 (or 3) Surge Protection Device
Enclosure Specifications
- Material Composition: Painted Steel
- Paint Colour: RAL 9010
- Max Modules: 2
- Degree of Protection: IP2X
- Operating Temperature Range: -15°C to 60°C
- Standards of Compliance: BS EN 60898 & 61008
- Dimensions (H x W x D): 145mm x 80mm x 82mm
Circuit Breaker Specifications
- Type: Miniature Circuit Breaker (MCB)
- Curve Type: B
- Rated Current: 32A
- Breaking Capacity: 6kA
- Standard of Compliance: BS EN 60898
SPD Specifications
- Configuration: 1 Module 1P+N
- Max Discharge Current (Imax 8/20µs): 15kA
- Earthing Type: TN
- Standards of Compliance: EN 61643-11, IEC 61643-11, UL1449ed.7
Why Choose This Product?
The Niglon SAE2M-23-215 Surge Protection Device offers a fully pre-mounted SPD enclosure, making it a time-saving and space-efficient solution for TN earthing systems. With its integrated MCB, compact steel enclosure, and compliance with industry standards, this SPD ensures enhanced safety, reliability, and ease of installation in various electrical setups.
