Description

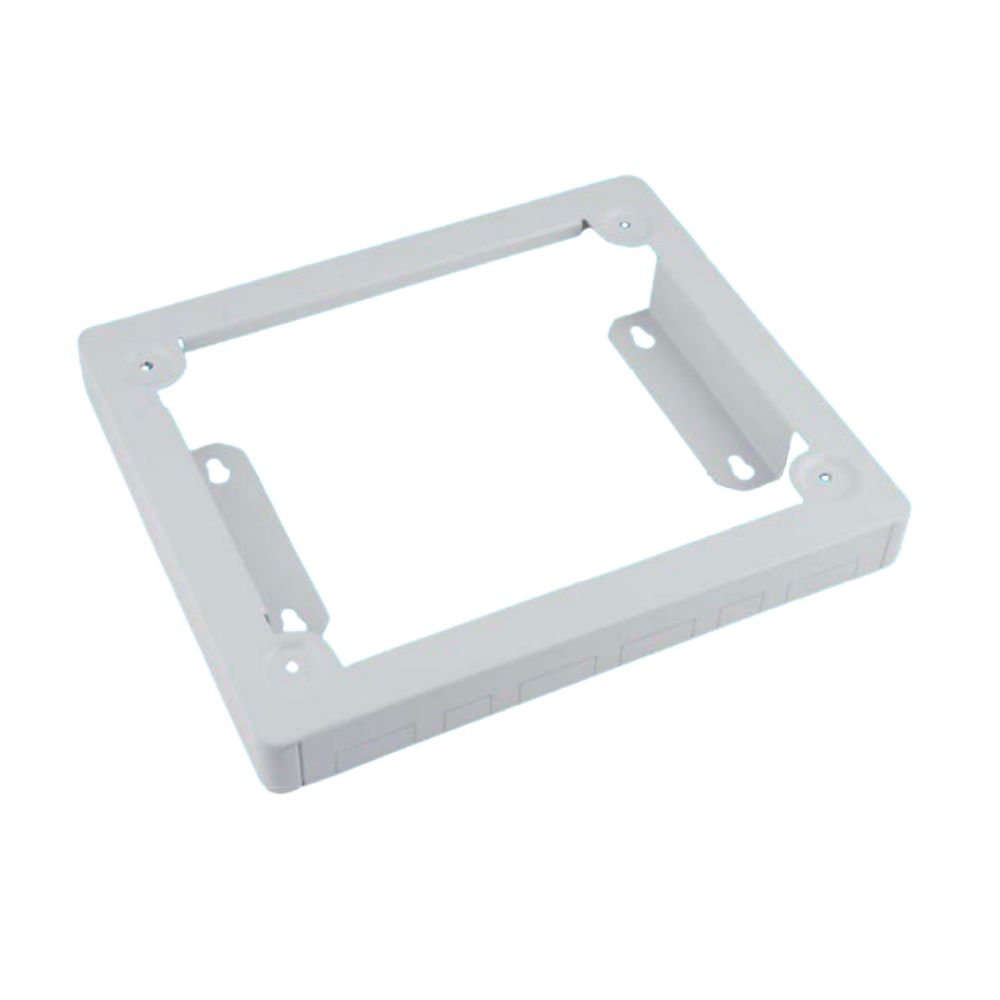

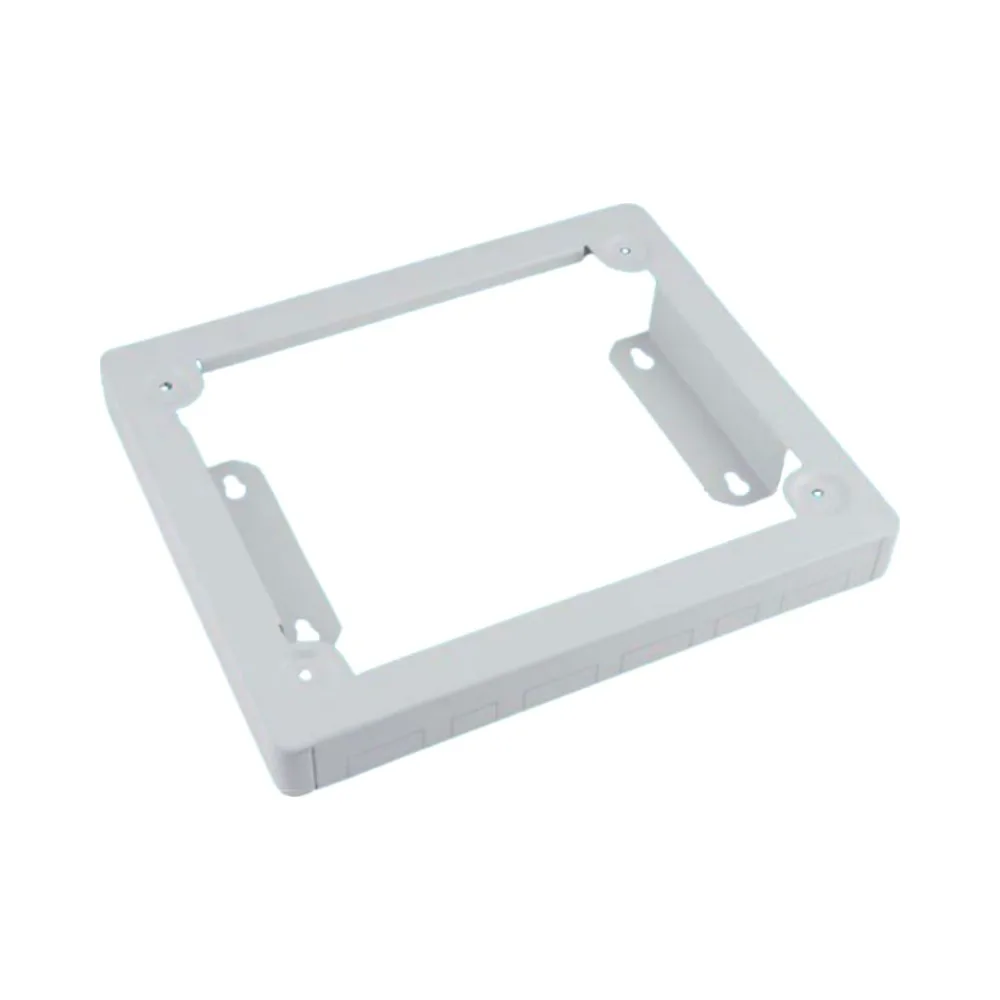

Protego 18-Module Rear Stand Off Plate – Surface Mount | 16mm Trunking Compatible | Steel | PCU1816M Compatible
⚙️ Niglon PSTAND02 for Niglon PCU1816M Protego 100A Twin Screw Main Switch 16 Way Metal Consumer Unit
✅ Built for Protego – Surface Mount Plate for 18-Module Consumer Units
The Niglon PSTAND02 is a rear stand-off plate built for the 18-module Niglon Protego consumer unit, such as the PCU1816M. It helps electricians manage rear cable entry cleanly while providing room for ventilation and routing behind the board.
This bracket mounts directly to the back of the Protego unit and lifts it from the wall surface, allowing space for 16mm mini trunking to be used easily. The included fixings make mounting secure, while the pre-cut knockouts save time during installs.
Key Features of the of the Niglon Protego 18 Module Stand Off Plate
- ✅ Designed for Niglon PCU1816M Protego 100A Twin Screw Main Switch 16 Way Metal Consumer Unit
- ✅ Surface-mounted for improved rear access and cable clearance
- ✅ Strong, powder-coated steel construction (RAL 9010)
- ✅ Knockouts sized specifically for 16mm mini trunking
- ✅ Includes M5 spring and flat washer fixings for secure mounting to board (2.5Nm max torque)
- ✅ Stand-off fixings not supplied – to be chosen based on install surface
Knockout Layout
- ✅ Top: 4 x 21mm, 4 x 35mm
- ✅ Bottom: 4 x 21mm, 4 x 35mm
- ✅ Sides: 2 x 35mm each side
Dimensions of the of the Niglon Protego 18 Module Stand Off Plate
- ✅ Sized to match the PCU1816M Niglon Protego consumer unit
- ✅ See technical drawing for full layout and mounting profile
Ideal For
- ✅ Wall-mounted installations requiring extra wiring space
- ✅ Neat rear cable routing using 16mm mini trunking
- ✅ Surface-mounted Protego boards in domestic environments
- ✅ Secondary boards or rewires where cabling must be routed neatly behind the enclosure
Summary of the Niglon Protego 18 Module Stand Off Plate
The Niglon PSTAND02 is a surface-mount rear bracket for 18-module Protego consumer units. Made from steel with 16mm trunking-ready knockouts, it improves airflow, cable access, and ease of installation—ideal for use with the PCU1816M.
