Description
Protego 14-Module Rear Stand Off Plate – Surface Mount | 16mm Trunking Compatible | Steel | PCU1412M Compatible
⚙️ Niglon PSTAND01 for Niglon PCU1412M Protego 12 Way Metal Consumer Unit
✅ Mount Smarter – Rear Access Plate for Cleaner, Safer Installations

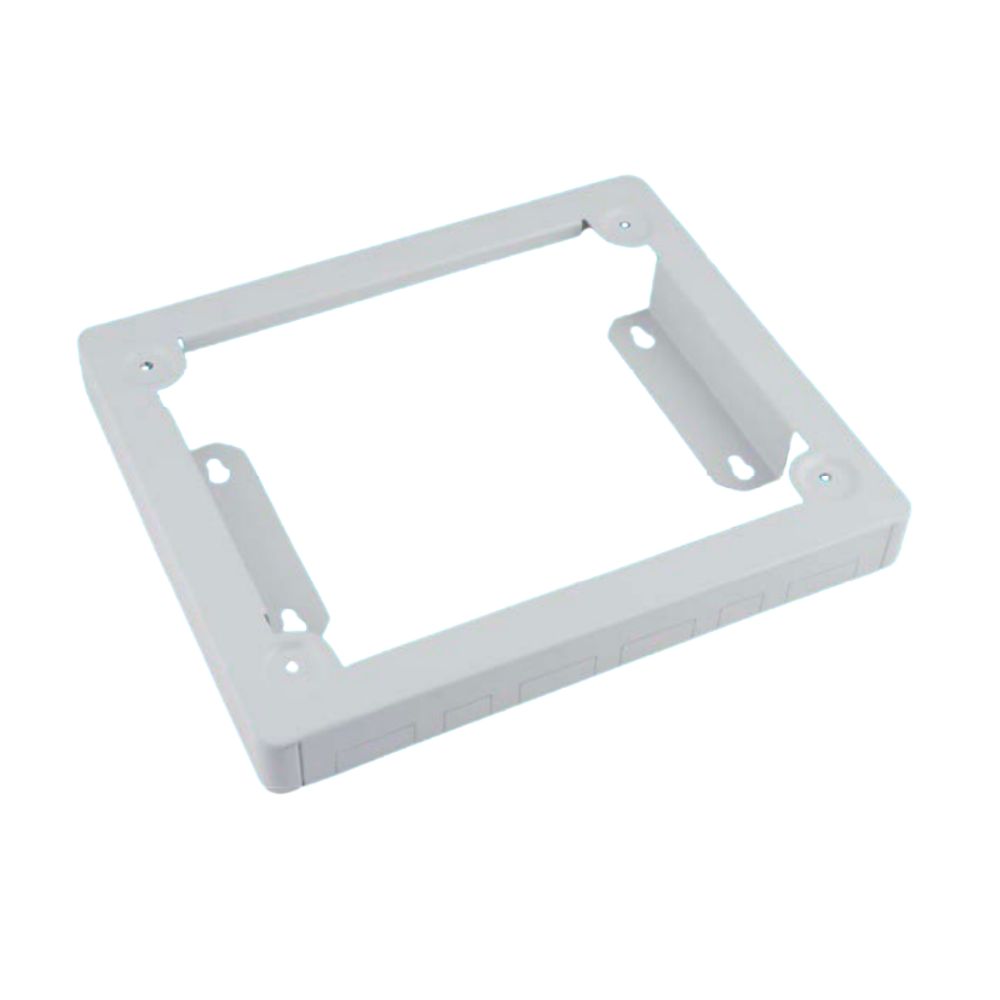

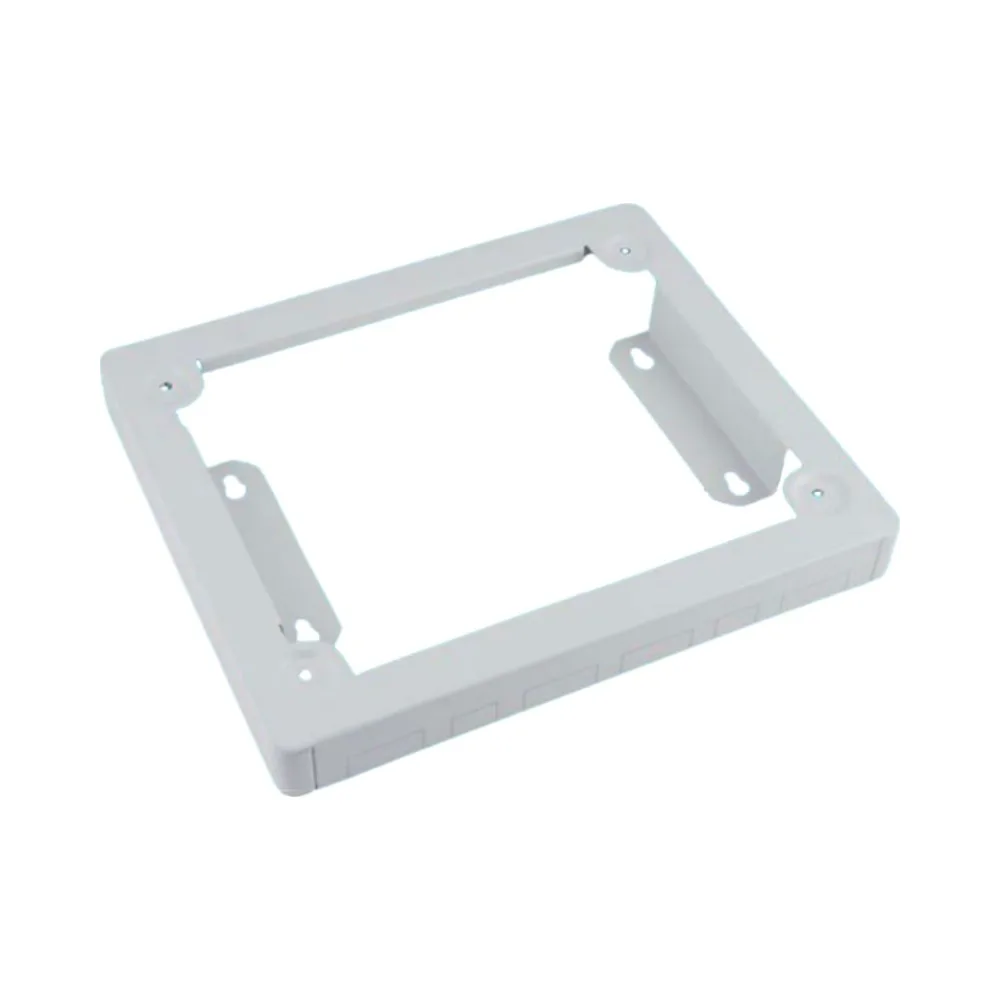

The Niglon PSTAND01 is a purpose-built rear stand-off mounting bracket for use with the Niglon PCU1412M Protego 14-Way Metal Consumer Unit. Designed for surface-mount applications, it offers a safe, elevated mounting solution that allows for clear cable routing and ventilation behind the board—especially useful in retrofit or high-density wiring environments.
Built from powder-coated steel, the plate includes multiple knockouts sized for 16mm mini trunking, ensuring a tidy and regulation-ready fit for domestic electricians.
Key Features of the Niglon Protego 14 Module Stand Off Plate
- ✅ Designed specifically for the Niglon PCU1412M Protego 100A Twin Screw Main Switch 12 Way Metal Consumer Unit
- ✅ Rear mounting bracket for 14-module Protego consumer units
- ✅ Durable steel construction with powder-coated finish
- ✅ Surface mount design for back clearance
- ✅ Supports up to 2.5Nm torque with included M5 spring and flat washer fixings
- ✅ Top: 2 x 21mm, 4 x 35mm knockouts
- ✅ Bottom: 2 x 21mm, 4 x 35mm knockouts
- ✅ Sides: 2 x 35mm knockouts per side
- ✅ All knockout positions sized for 16mm mini trunking
- ✅ Stand-off fixings not supplied
Dimensions of the Niglon Protego 14 Module Stand Off Plate
- ✅ Designed to match rear profile of PCU1412M (Refer to technical drawing)
- ✅ Perfect fit with 14 module Protego consumer units
Ideal For
- ✅ Wall mounting Protego consumer units with cable clearance
- ✅ Ensuring easier cable management behind the board
- ✅ Applications requiring direct surface-mounting
- ✅ Projects needing space for rear entry trunking
- ✅ Installers using 16mm trunking for cable routing
Summary of the Niglon Protego 14 Module Stand Off Plate
The Niglon PSTAND01 is a 14-module rear stand-off bracket designed for the PCU1412M Protego consumer unit. Made from powder-coated steel with 16mm trunking-compatible knockouts, it offers cleaner surface mounting and safer rear cable routing.
