Description

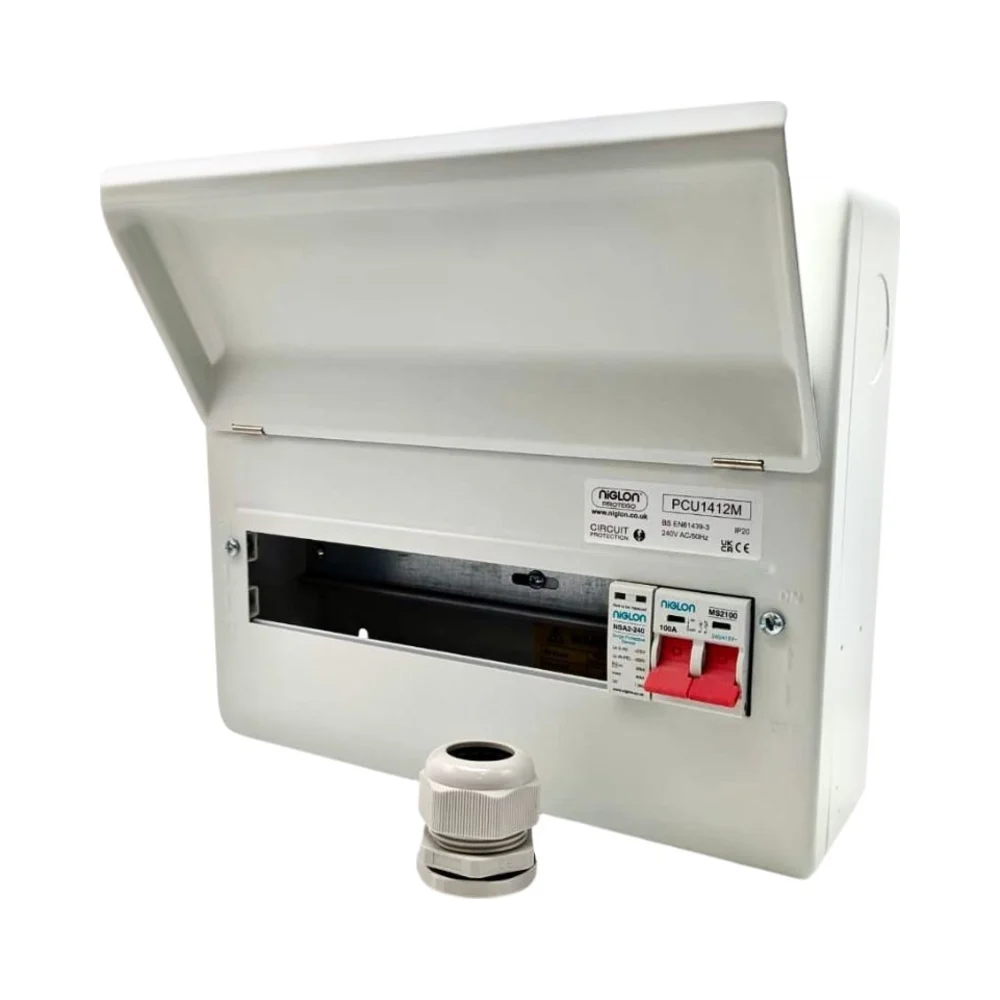

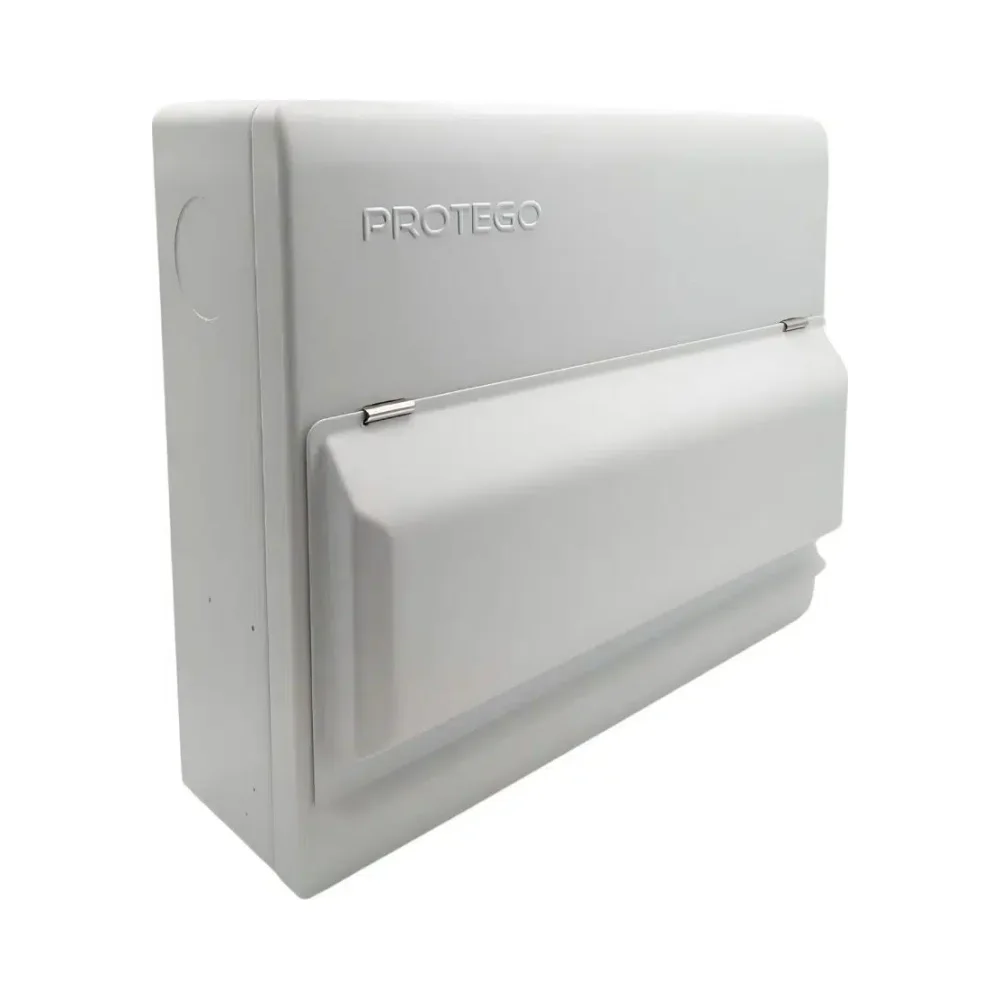

11 Way Main Switch SPD Consumer Unit
Niglon Protego – PCU1412M/SPD
Built for convenience, the 11 Way Niglon Protego SPD Consumer Unit combines Niglon’s Protego main switch consumer unit with a perfectly matched Type 2 surge protection device. Both are designed and manufactured by Niglon to work together for dependable, regulation-compliant surge protection.
Housed in a robust 14-module steel enclosure, this model includes a 100A double pole twin screw main switch, a direct-busbar Type 2 SPD that requires no separate MCB, and a meter tails gland for secure, professional mains cable entry. Supplied empty, it allows you to configure your own circuit breakers or RCBOs.
Installer Benefits and Product Highlights
- Electrical4Less packaged combination – Protego CU + matching Type 2 SPD
- 14-module metal enclosure with 11 usable ways
- 100A double pole twin screw main switch
- Direct busbar fit SPD – no separate MCB required
- Supplied empty for your own choice of protective devices
- Meter tails gland included for neat and safe mains cable termination
- Powder-coated RAL 9010 steel housing with rounded edges
- Multiple cable entry knockouts for flexible installation
- IP20 ingress rating with IK05 impact protection
- Compliant with BS 7671:2018, BS EN 61439-3, EN60947-3
Part of the Niglon Protego Consumer Units Range
This model is part of the Niglon Protego Consumer Units range, featuring a built-in spirit level, reinforced 1.2mm curved lid, and versatile knockout options. Additional installer-friendly touches include raised DIN rails for easier cable routing, square rear knockouts, and strong cable retention with large terminal screws.
Technical Overview – Niglon Protego SPD Consumer Unit
- Model: PCU1412M/SPD
- Brand: Niglon
- Range: Protego
- Total Modules: 14
- Usable Ways: 11
- Main Switch: 100A Double Pole
- SPD: Type 2, single-module (no MCB required)
- Enclosure Material: Powder-coated steel (RAL 9010)
- IP Rating: IP20
- Impact Resistance: IK05
- Standards: BS 7671:2018, BS EN 61439-3, EN60947-3
- Included: Meter tails gland, internal neutral and earth bars, fixing kit
️ About Niglon
Niglon is a UK-based manufacturer trusted for quality, compliance, and installer-focused designs. The Protego range offers a clean, modern appearance with safer terminal layouts and durable steel construction.
