Description

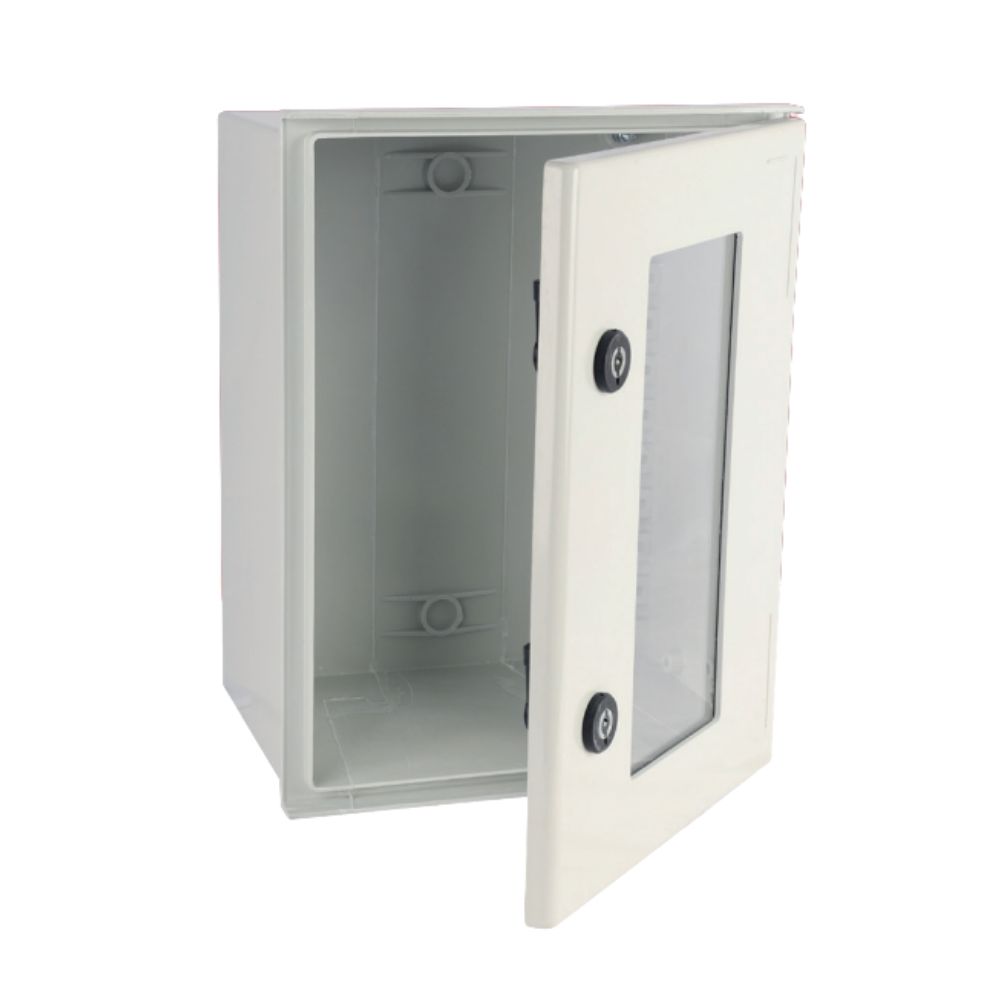

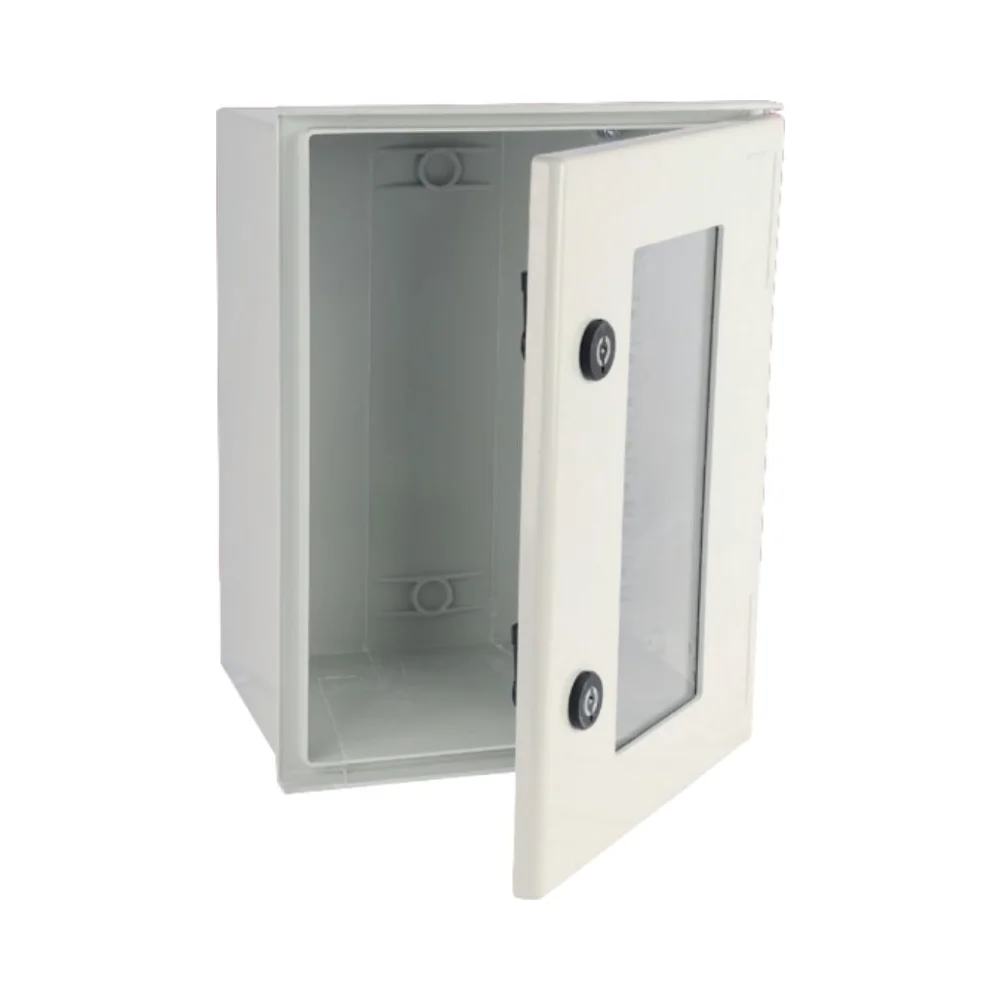

Enclosure with Glazed Door (400mm x 300mm x 200mm)
Niglon PG403020 GRP – Wall-Mounted Glass Reinforced Polyester (GRP) Enclosure
Weather-Resistant GRP Enclosure with Glazed Door for Industrial and Outdoor Use – Niglon PG403020 GRP Enclosure with Glazed Door
The Niglon PG403020 GRP Enclosure with a glazed door is a durable and high-performance electrical housing, specifically designed for industrial, commercial, and outdoor installations. Manufactured from Glass Reinforced Polyester (GRP), it offers excellent impact resistance, corrosion protection, and long-term durability, making it an ideal solution for demanding electrical applications.
The glazed door panel allows for quick visual monitoring of enclosed components, reducing unnecessary access and enhancing efficiency in control panel and automation setups. With an IP66 rating, this enclosure offers complete protection against dust and water jets, ensuring reliable operation in harsh environments.
Additionally, its IK08 impact resistance provides strong mechanical durability, while its RAL7035 light grey finish ensures a clean and professional appearance.
Key Features
- Constructed from Glass Reinforced Polyester (GRP) for maximum durability and strength
- Glazed door for quick and easy visual inspection, reducing maintenance time
- Corrosion-resistant and non-conductive, enhancing electrical safety
- IP66 ingress protection, safeguarding against dust and powerful water jets
- IK08 impact resistance, providing superior mechanical strength
- Flame-resistant up to 960°C Glow Wire, meeting strict fire safety regulations
- Operating temperature range: -30°C to +105°C, suitable for extreme conditions
- Rated for up to 1000V, ensuring compatibility with high-voltage applications
- Secure dual-lock system, preventing unauthorised access
- Easily machinable, allowing for custom modifications
- Lightweight yet strong, making installation quick and effortless
Technical Specifications of the Niglon PG403020 GRP Enclosure with Glazed Door
- Material: Glass Reinforced Polyester (GRP)
- Flame Test: 960°C Glow Wire
- Ingress Protection: IP66 / IK08
- Standards Compliance: BSEN 62208, BSEN 62262, BSEN 60529
- Height: 400mm
- Width: 300mm
- Depth: 200mm
- Useable Depth (with backplate): 173mm
- Window Size (Width x Height): 121mm x 281mm
- Number of Locks: 2
- Operating Temperature: -30°C to +105°C
- Thermal Class: A
- Rated Voltage: 1000V
- Weight: 3.7kg
Available Accessories (not included)
- Document Pocket: A4DOCW
- Polyester Backplate (358 x 260mm): PBP432
- Metal Backplate (358 x 260mm): MBP432
- Small Ventilation Device: P-SVD
- Large Ventilation Device: P-LVD
- Key Lock with Butterfly Handle: P-DL
- Padlock Hasp: P-PH
- Wall Fixing Kit: P-WFK
Why Choose Niglon PG403020 GRP Enclosure with Glazed Door
- Trusted industry brand, delivering high-quality electrical enclosures
- Designed for outdoor and industrial environments, ensuring long-term durability
- Glazed door for easy visual monitoring, reducing the need for unnecessary access
- IP66-rated, providing full weather and dust resistance
- Lightweight yet highly durable, simplifying handling and installation
- Easily customisable, allowing for specific project modifications
Summary
The Niglon PG403020 GRP Enclosure with a glazed door is a heavy-duty and weatherproof electrical housing, designed for industrial and outdoor applications. Constructed from Glass Reinforced Polyester (GRP), it provides superior corrosion resistance, impact protection, and electrical insulation, ensuring long-term reliability.
With IP66 ingress protection, IK08 impact resistance, and a secure dual-lock system, this enclosure offers maximum protection in demanding environments. Its glazed door allows for quick monitoring, making it a practical and efficient choice for electrical setups that require visual inspection.
