Protego Metal Consumer Unit – 8 Way | Right-Side Main Switch | Double Pole 100A | IP20

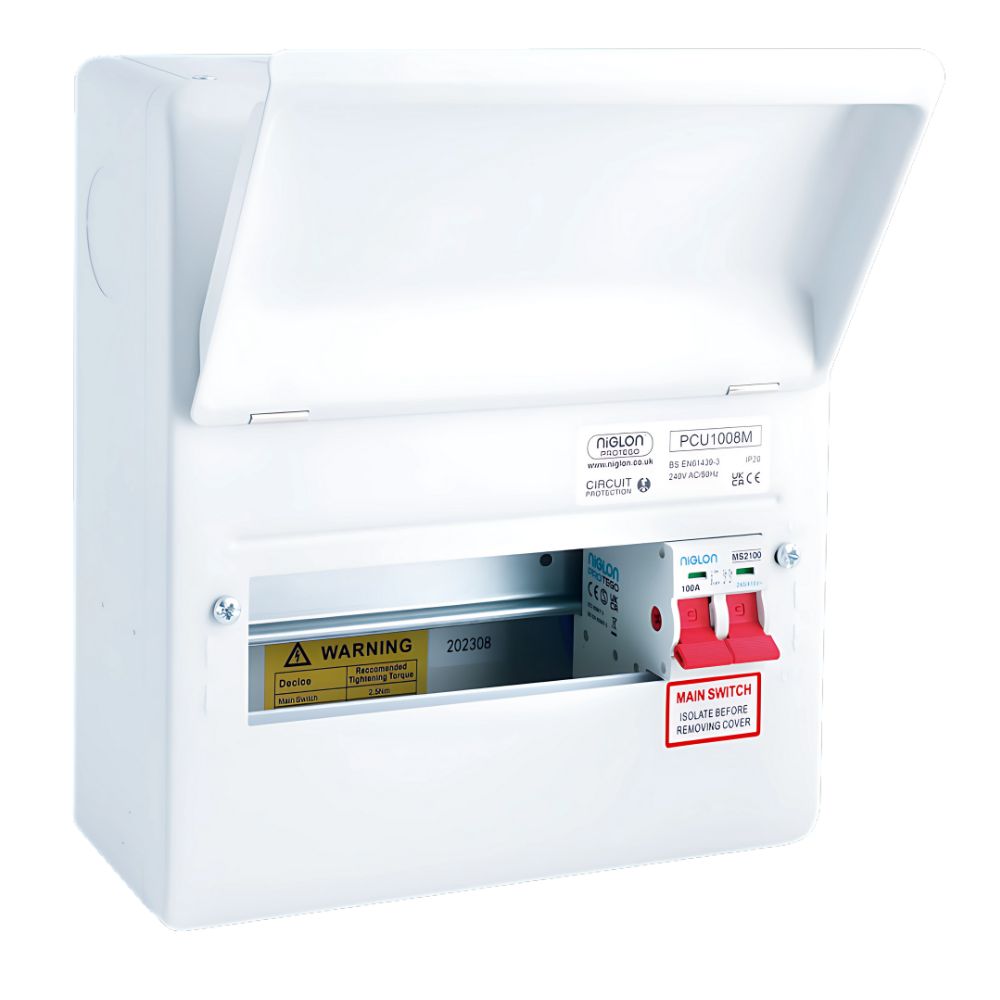

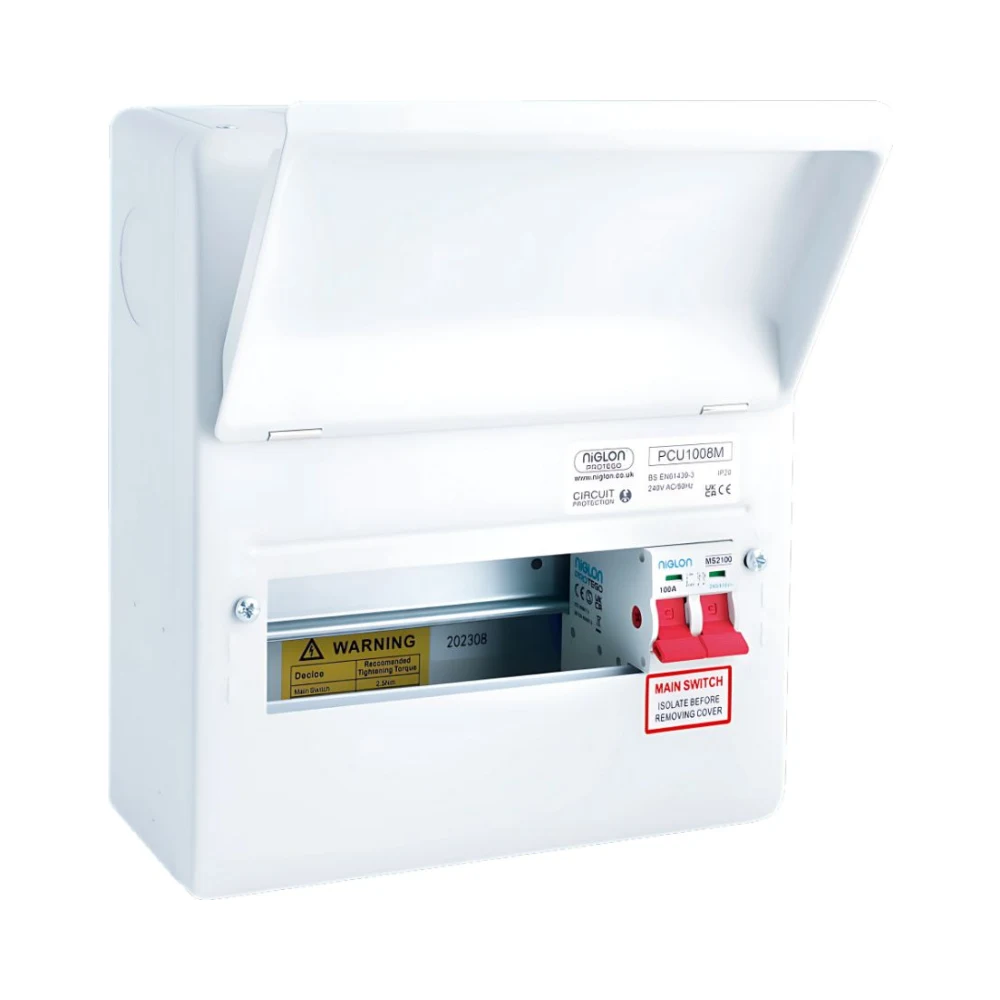

⚡ Niglon PCU1008M – 8 Usable Way Metal Consumer Unit
✅ Professional-Grade Metal Consumer Unit with Installer-Focused Features
The Niglon PCU1008M is an expertly engineered 8-way metal consumer unit from the newly launched Protego range. Designed for domestic installations, it combines reliability, modern styling, and smart internal layout for quick, safe, and tidy installs.
This unit features a pre-fitted 100A double pole main isolator with twin screw terminals—an installer-preferred safety feature that provides a secure and stable connection for meter tails. Unlike some brands that use clamp-type terminals, Niglon believes twin screws offer a more secure and durable method of connection, minimising slippage and heat build-up under load.
With a right-hand incomer, this board is perfect for layouts where space or cable routing makes right-side access preferable—an excellent alternative to Niglon’s traditional left-hand units.
🔧 Key Features of the Niglon Protego PCU1008M 8 Way Consumer Unit
- ✅ 10-module metal enclosure with 8 usable ways
- ✅ Factory-fitted 100A double pole isolator
- ✅ Right-hand main switch position – exclusive to the Protego range
- ✅ Twin screw terminal design for secure meter tail connections
- ✅ Smooth, rounded corners for safe handling and a modern look
- ✅ Strong powder-coated steel construction (RAL 9010 finish)
- ✅ Terminal capacity: 35mm²
- ✅ IP20 ingress protection | IK05 impact resistance
- ✅ Standards: BS 7671:2018, BS EN 61439-3, EN60947-3 (main switch)
- ✅ Certifications: Semko, CE, UKCA
📐 Dimensions
- Width: 232mm
- Height: 260mm
- Depth: 110mm
⚙️ Surge Protection Compatible – Add It in Seconds
- ✅ Compatible with Niglon NSA2-240 SPD
- ✅ Mounts directly to the busbar – no MCB or additional module required
- ✅ Add easily from the related products section during checkout
💡 Ideal For
- ✅ Domestic rewire and new build installations
- ✅ Electricians who prefer a right-hand main switch layout
- ✅ Projects requiring secure twin screw tail connections
- ✅ Installations needing a compact 8-way metal consumer unit with 8 usable ways
- ✅ Customers looking for a clean, modern metal enclosure
Why Choose Niglon Protego PCU1008M 8 Way Consumer Unit?
The Protego series is Niglon’s premium consumer unit line, designed to make installation safer, quicker, and neater. With rounded edges, installer-preferred switchgear, and certified quality, Protego units meet the needs of professionals who won’t compromise on compliance or finish.
🔎 Summary of the Niglon Protego PCU1008M 8 Way Consumer Unit
The Niglon PCU1008M Protego is an 8-way metal consumer unit featuring 8 usable ways, a right-hand 100A double pole isolator, and twin screw terminals for secure tail connections. Ideal for domestic installations, it’s SPD-ready, BS 7671 compliant, and built for safe, fast, and professional installs.
