Description
GRP Enclosure (400mm x 300mm x 200mm)

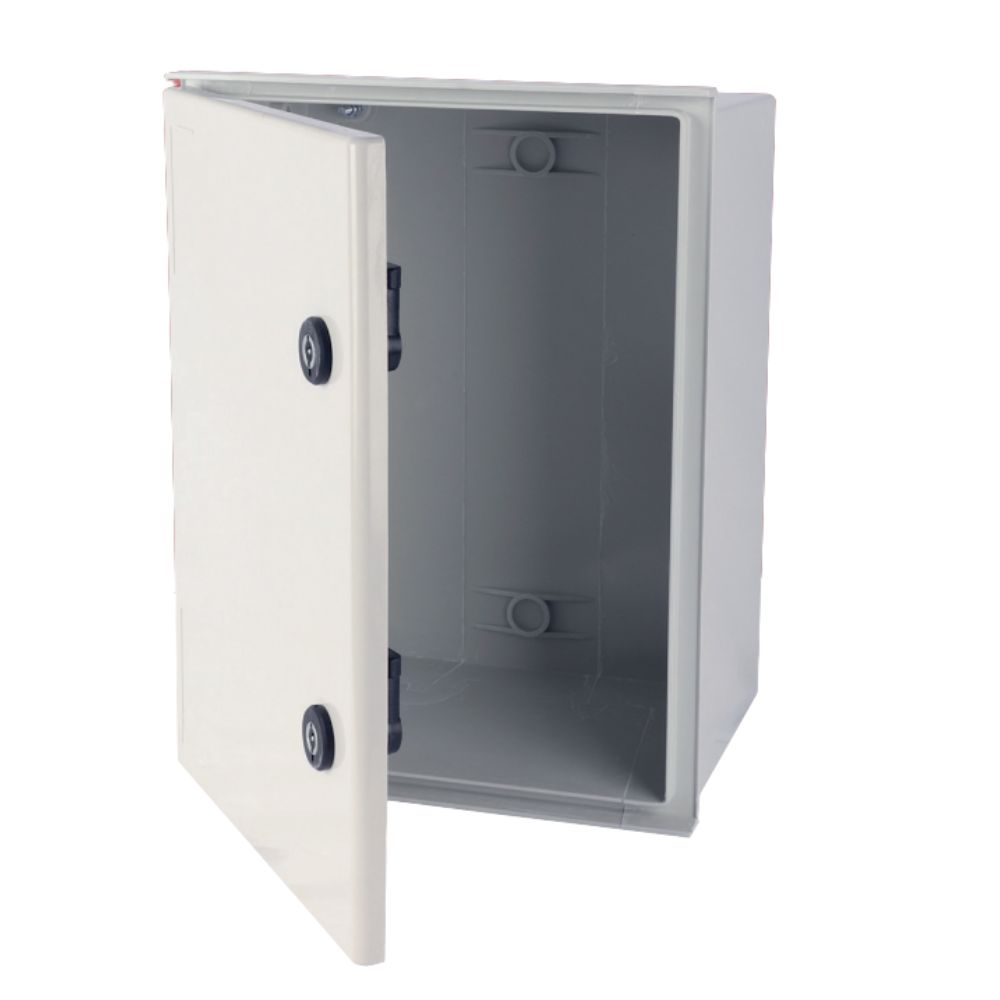

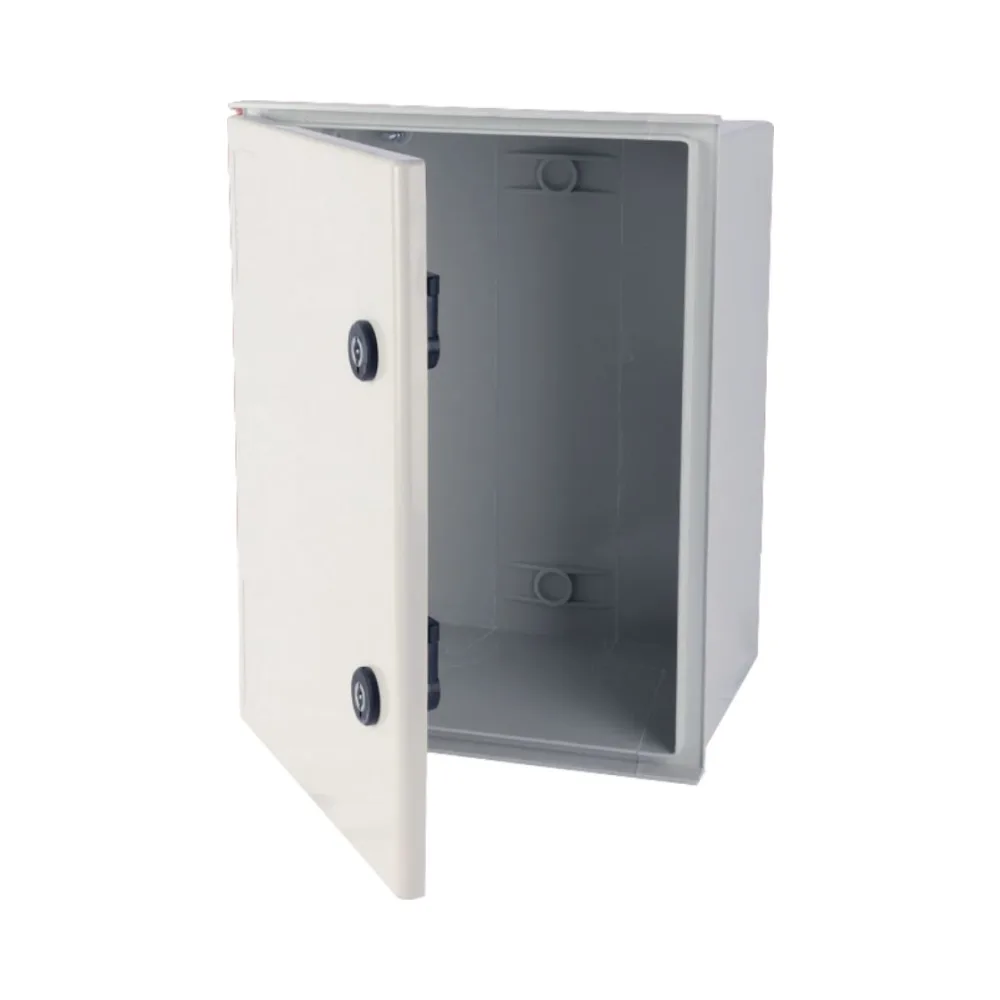

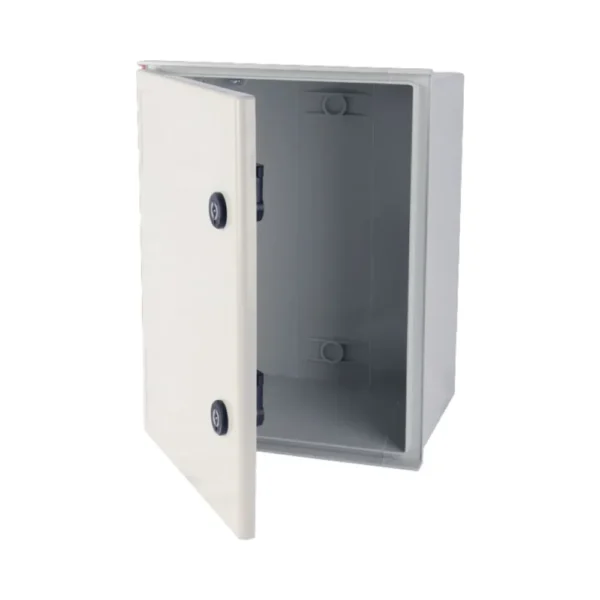

Niglon P403020 – Wall-Mounted Glass Reinforced Polyester (GRP) Enclosure
Heavy-Duty GRP Enclosure for Industrial and Outdoor Use – Niglon P403020 GRP Enclosure (400mm x 300mm x 200mm)
The Niglon P403020 GRP Enclosure is a robust and weather-resistant electrical housing, designed for outdoor and industrial applications. Manufactured from Glass Reinforced Polyester (GRP), it provides exceptional durability, corrosion resistance, and impact protection, making it perfect for harsh environments where safeguarding electrical components is critical.
With an IP66 rating, this enclosure offers complete protection against dust and strong water jets, ensuring long-lasting performance in extreme conditions. Additionally, it meets IK10 impact resistance standards, making it highly durable against physical impact. Its RAL7035 light grey finish delivers a professional and uniform appearance, while the enclosure remains lightweight for easy handling and installation.
Key Features
- Constructed from Glass Reinforced Polyester (GRP) for superior durability and strength
- Corrosion-resistant and non-conductive, ensuring electrical safety
- IP66 ingress protection, safeguarding against dust and water jets
- IK10 impact rating, offering maximum mechanical strength
- Flame-resistant up to 960°C Glow Wire, complying with fire safety regulations
- Wide operating temperature range, from -30°C to +105°C
- Rated for up to 1000V, suitable for high-powered electrical systems
- Dual-lock system, enhancing security and preventing unauthorised access
- Easily machinable, allowing for custom modifications
- Lightweight yet strong, simplifying installation
Technical Specifications of the Niglon P403020 GRP Enclosure (400mm x 300mm x 200mm)
- Material: Glass Reinforced Polyester (GRP)
- Flame Test: 960°C Glow Wire
- Ingress Protection: IP66 / IK10
- Standards Compliance: BSEN 62208, BSEN 62262, BSEN 60529
- Height: 400mm
- Width: 300mm
- Depth: 200mm
- Useable Depth (with backplate): 173mm
- Number of Locks: 2
- Operating Temperature: -30°C to +105°C
- Thermal Class: A
- Rated Voltage: 1000V
- Weight: 3.7kg
Available Accessories (not included)
- Document Pocket: A4DOCW
- Polyester Backplate (358 x 260mm): PBP432
- Metal Backplate (358 x 260mm): MBP432
- Small Ventilation Device: P-SVD
- Large Ventilation Device: P-LVD
- Key Lock with Butterfly Handle: P-DL
- Padlock Hasp: P-PH
- Wall Fixing Kit: P-WFK
Why Choose Niglon P403020 GRP Enclosure
- Industry-leading brand, trusted for high-quality electrical enclosures
- Designed for extreme environments, ensuring long-lasting protection
- IP66-rated, providing full weather and dust resistance
- Lightweight yet strong, making installation simple and efficient
- Easily customisable, allowing for specific modifications based on project needs
Summary
The Niglon P403020 GRP Enclosure is a durable and weatherproof housing, designed for industrial and outdoor electrical installations. Built from Glass Reinforced Polyester (GRP), it provides corrosion resistance, impact protection, and electrical insulation, ensuring long-term performance. Featuring IP66 ingress protection, IK10 impact resistance, and a secure dual-lock system, this enclosure offers maximum protection in harsh environments.
Its lightweight design ensures easy installation, making it the ideal solution for demanding electrical applications.
