Description
Niglon NTA2-415 Protego 3 Phase Surge Protection Kit
Niglon NTA2-415
The Niglon NTA2-415 Protego 3 Phase Surge Protection Kit is specifically designed for seamless installation within Niglon Protego 3 phase distribution boards, providing reliable protection against transient overvoltages in commercial and industrial environments.

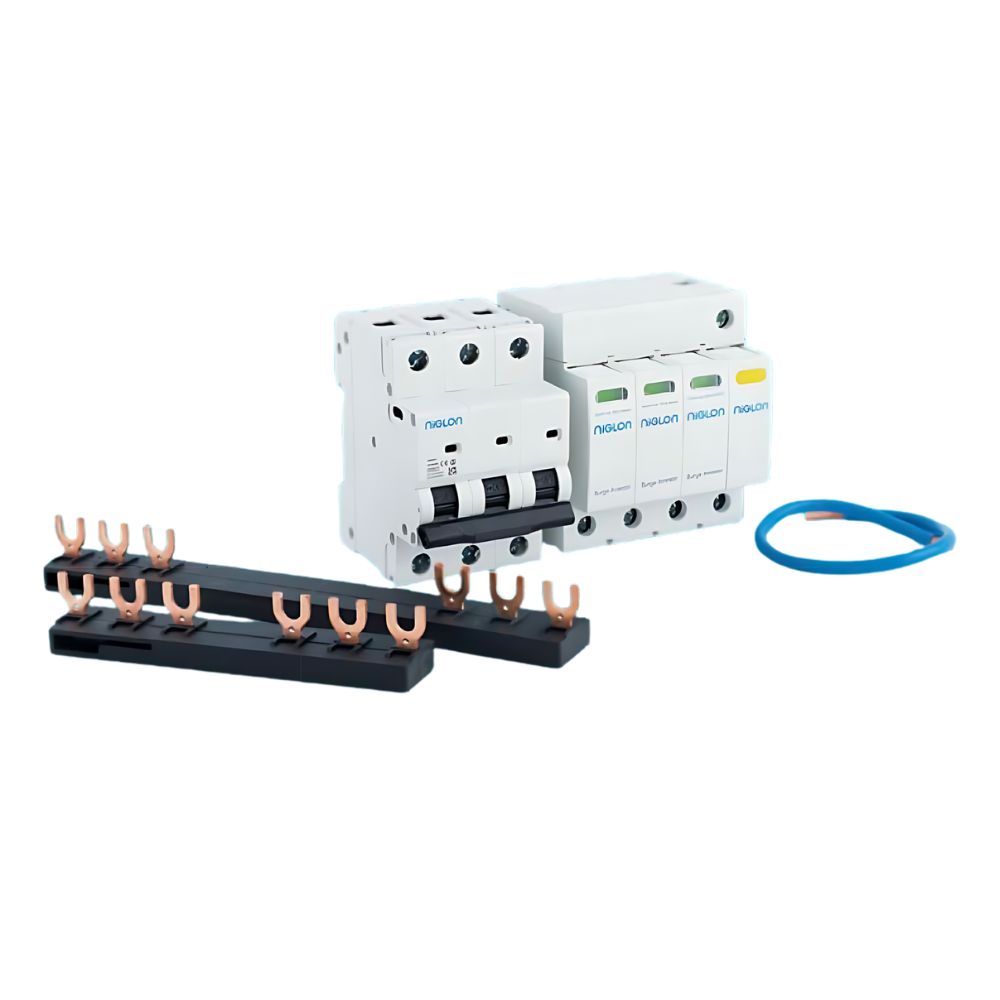

This complete kit is supplied with a 32A 10kA B curve MCB, along with L busbars, neutral cable and earth link, ensuring fast, straightforward and compliant installation without the need for additional components.
Delivering a maximum discharge current of 40kA and nominal discharge current of 20kA, the unit provides dependable surge protection. Ultra-fast response times of <25ns (L-N) and <100ns (N-PE) ensure immediate reaction to voltage spikes.
Key Features
- Designed for Niglon Protego 3 phase distribution boards
- Type 2 TPN surge protection device (3P+NPE)
- Maximum discharge current: 40kA
- Nominal discharge current: 20kA
- Supplied with 32A 10kA B curve MCB
- Includes L busbars, neutral cable and earth link
- Max continuous voltage: 440V (L-N), 255V (N-PE)
- Fast response time: <25ns (L-N), <100ns (N-PE)
- Visual status indicator (Green = OK, Red = Replace)
- Remote signalling capability
- IP20 rated thermoplastic enclosure
- Operating temperature: -40°C to +80°C
- Complies with BS EN 61643-11 & BS EN 60898-1
The Niglon NTA2-415 provides a complete, ready-to-install surge protection solution, purpose-built for Protego systems and ideal for ensuring compliance and equipment protection in modern electrical installations.
