Earthing Disc – High-Performance Earthing Solution
Niglon NEDF

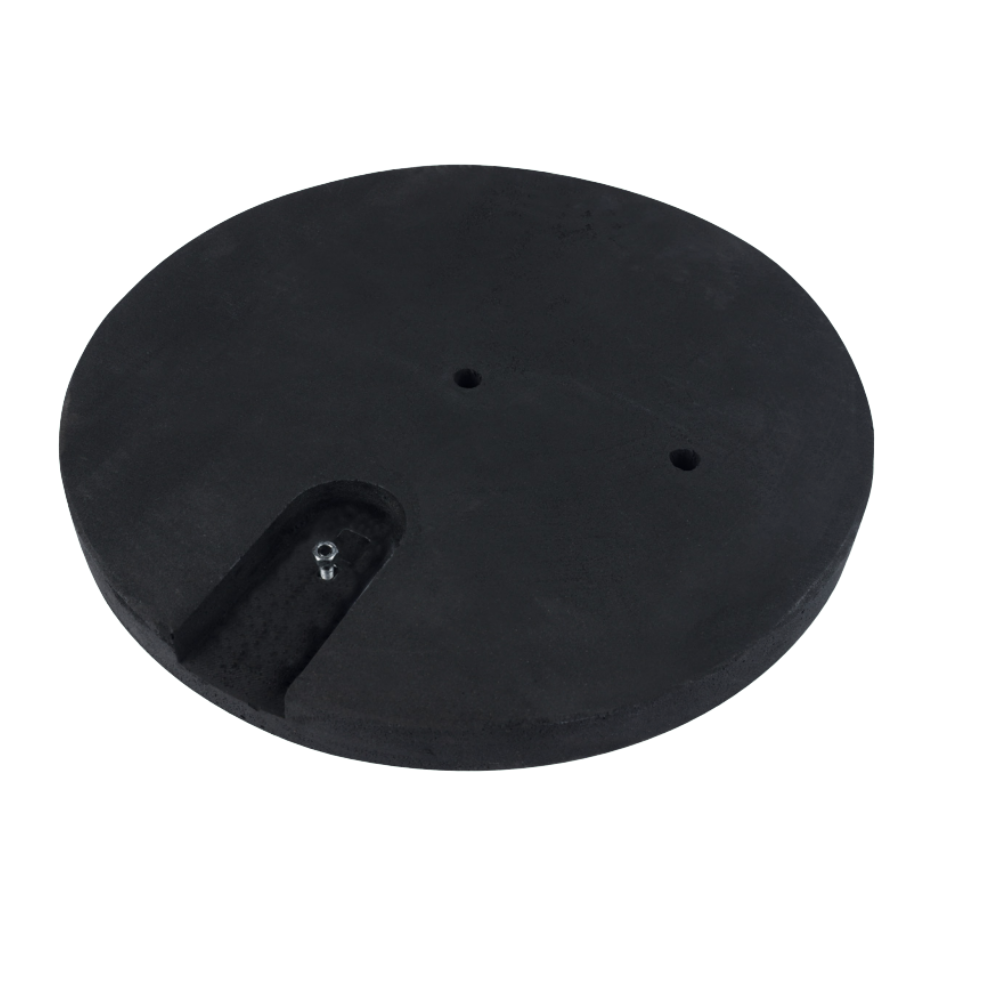

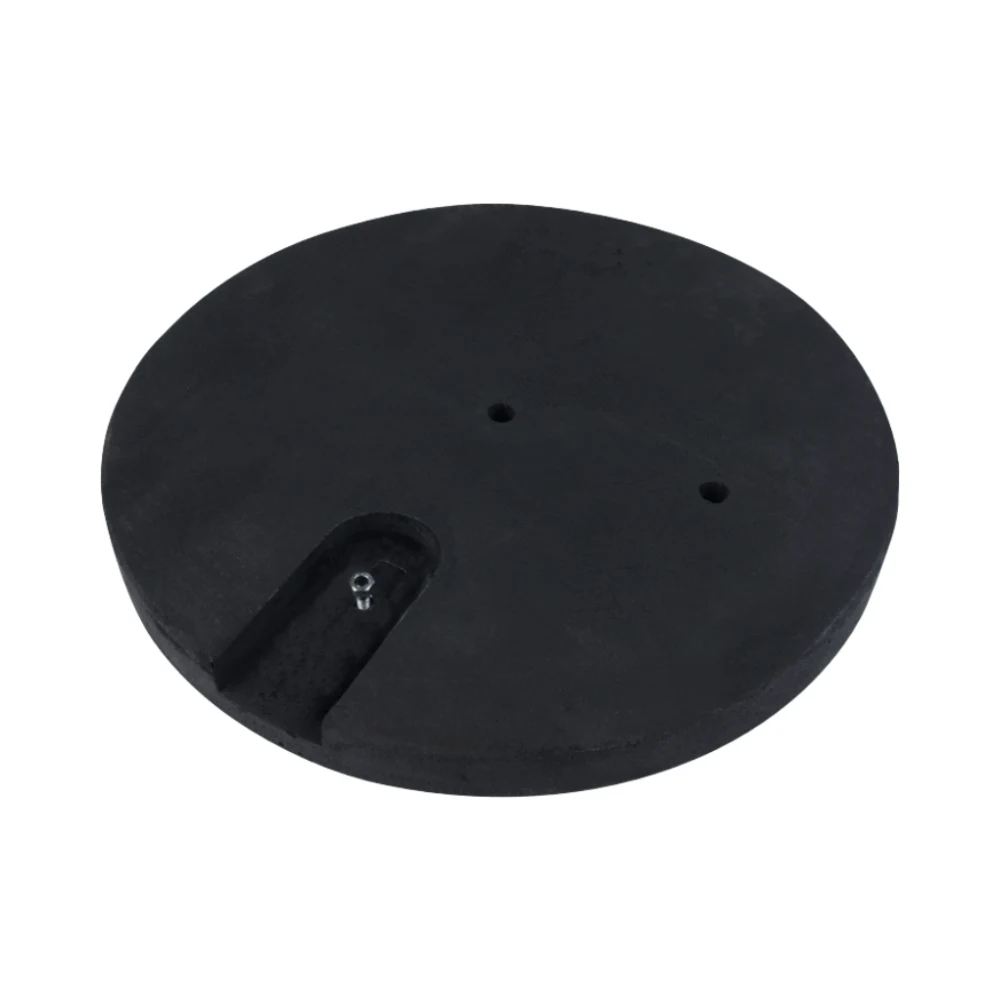

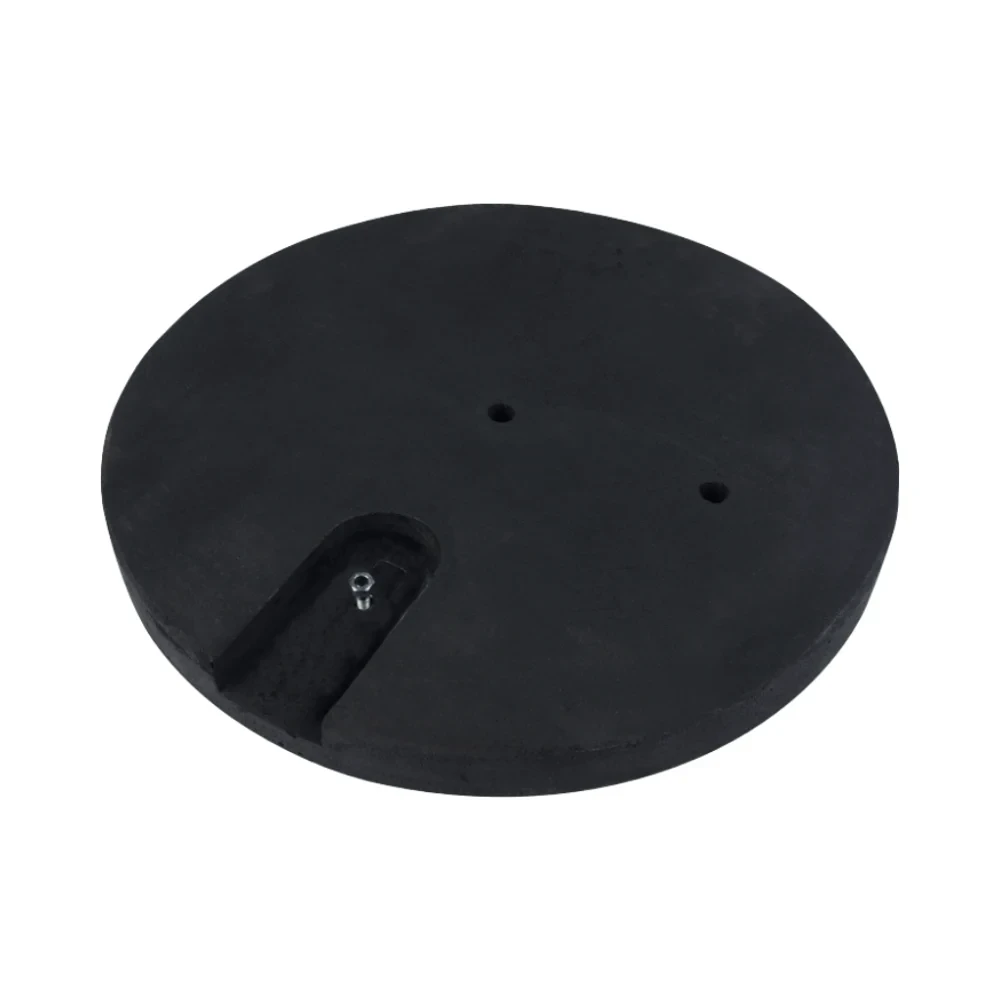

The Niglon NEDF Earthing Disc is a durable and efficient earthing solution, designed to enhance electrical safety by providing a low-resistance path to earth. Manufactured with high-quality conductive materials, it offers long-term corrosion resistance and reliable performance, making it an ideal alternative to traditional earth rods.
This innovative earthing disc simplifies installation and maintenance, eliminating the need for multiple earth rods while reducing the risk of hitting buried infrastructure. Its high load-bearing capacity ensures stability in various environmental conditions, making it suitable for industrial, commercial, and utility applications.
Key Features
- Long-Term Durability – Withstands freeze-thaw cycles for over 30 years
- Superior Conductivity – Maintains 100% electrical corrosion resistance for copper
- Fire-Resistant – Withstands exposure to 2,000°C propane torch for 60 seconds
- High Load Capacity – Supports up to 16,771 kg of applied load
- Versatile Compatibility – Suitable for copper, steel, and galvanised steel applications
- Environmentally Safe – Compliant with Ontario Regulation 558/00 Leachate Testing
- Safer Alternative to Earth Rods – Reduces risk of striking buried infrastructure
- Easy Installation – Can be installed with wood, composite, concrete, and steel poles

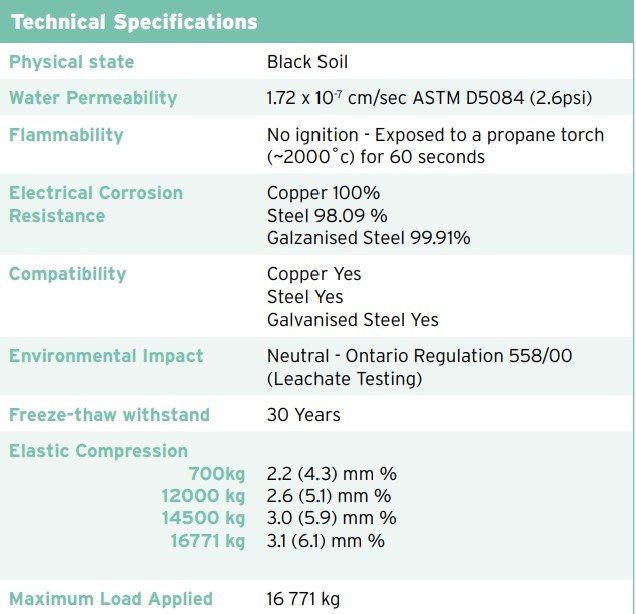

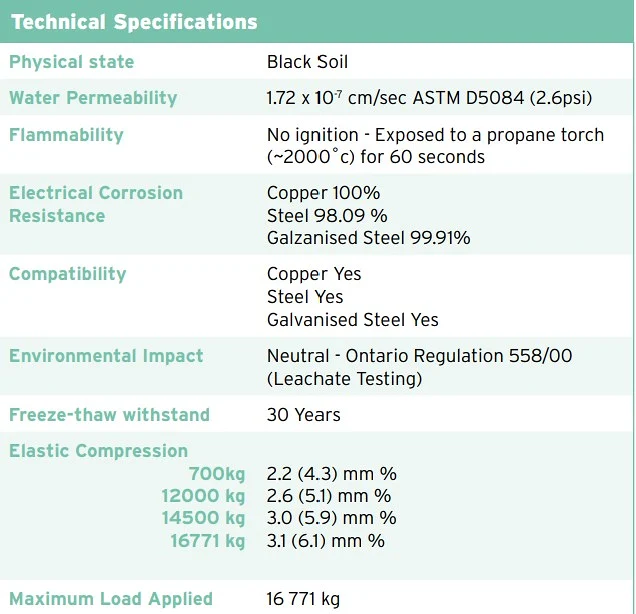

Technical Specifications
- Physical State: Black Soil
- Water Permeability: 1.72 x 10⁻⁷ cm/sec (ASTM D5084 – 2.6 psi)
- Material: 1/4″ Galvanised Steel Plate, fully encapsulated in conductive material
- Zinc Coating Thickness: 3.0 mils (Hot-dip galvanised to ASTM A-123/A-153 standards)
- Elastic Compression Resistance: 700 kg
- Load Capacity:
- 12,000 kg
- 14,500 kg
- 16,771 kg

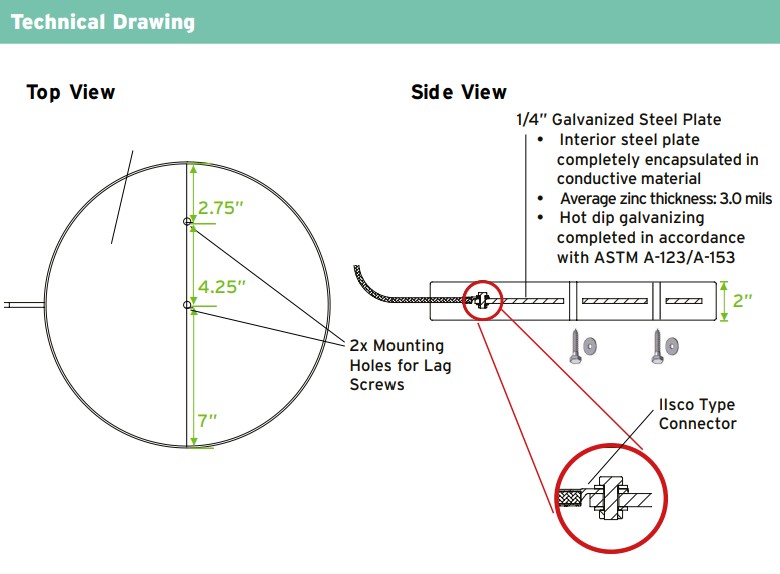

- Dimensions:
- Diameter: 7”
- Thickness: 2”
- Mounting Holes: 2x for lag screws
- Side View: 4.25” x 2.75”
Why Choose This Product?
The Niglon NEDF Earthing Disc is a superior alternative to traditional earth rods, providing exceptional conductivity, durability, and ease of installation. With its long service life, corrosion resistance, and high load capacity, it ensures reliable earthing for electrical safety in various industries.
