100A 3 Pole Fused Switch – Mild Steel Enclosure
Niglon MS1003PFS

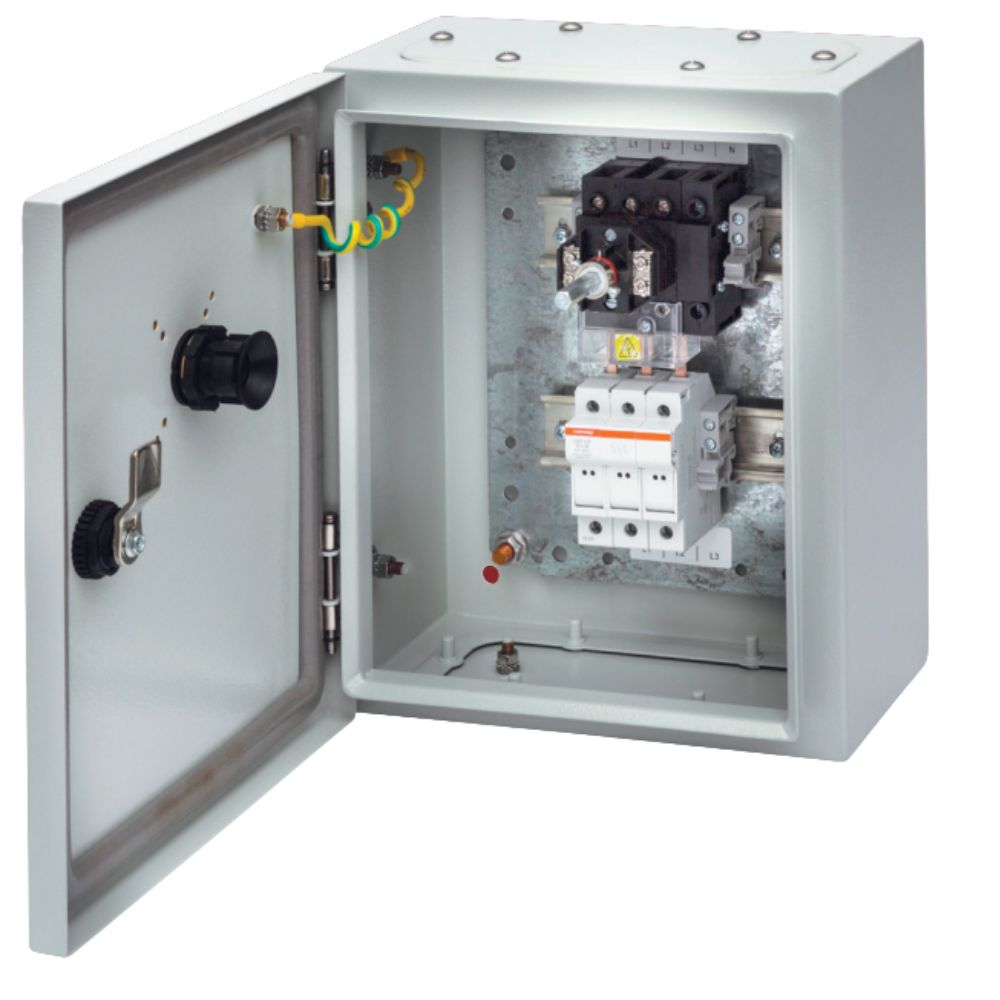

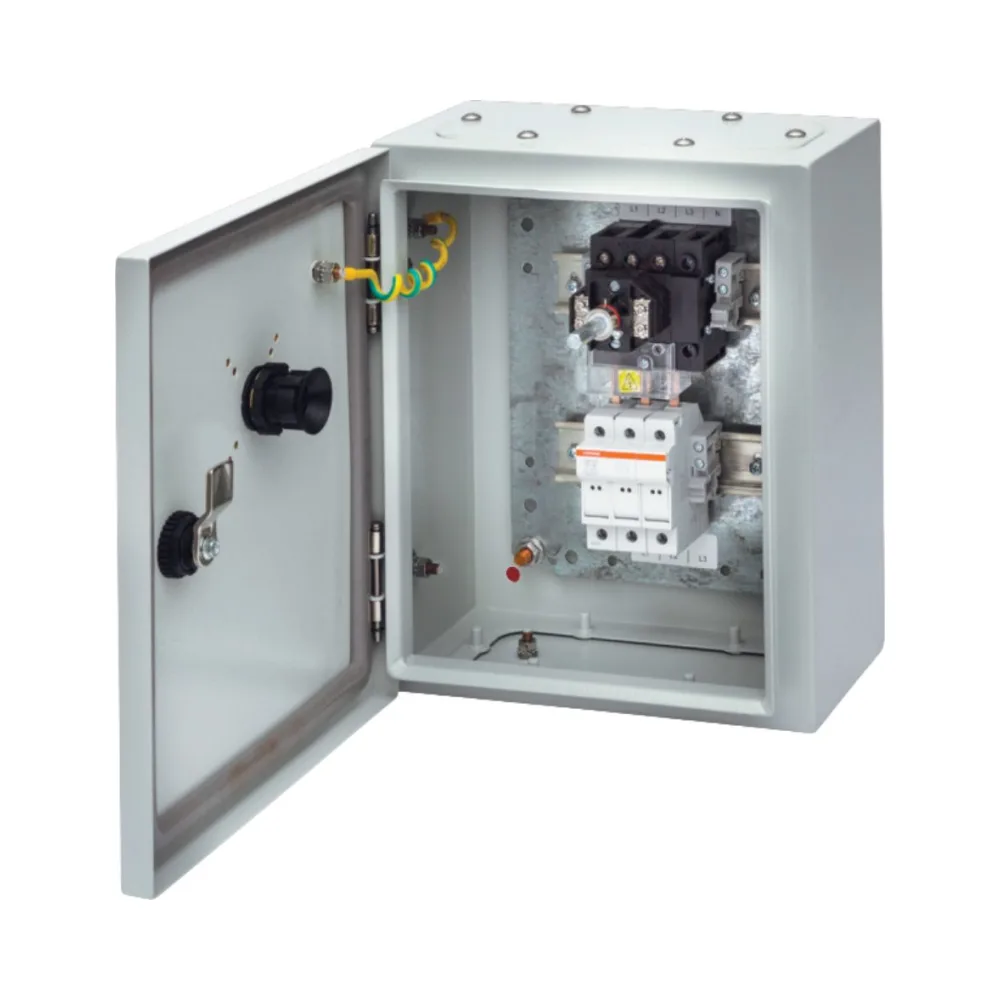

The Niglon MS1003PFS 100A 3 Pole Fused Switch is housed in a durable mild steel enclosure. Designed for industrial and commercial electrical installations, this unit ensures safe and reliable power isolation and protection. The fuse carrier accepts 22x58mm cylindrical fuselinks, providing robust circuit protection.

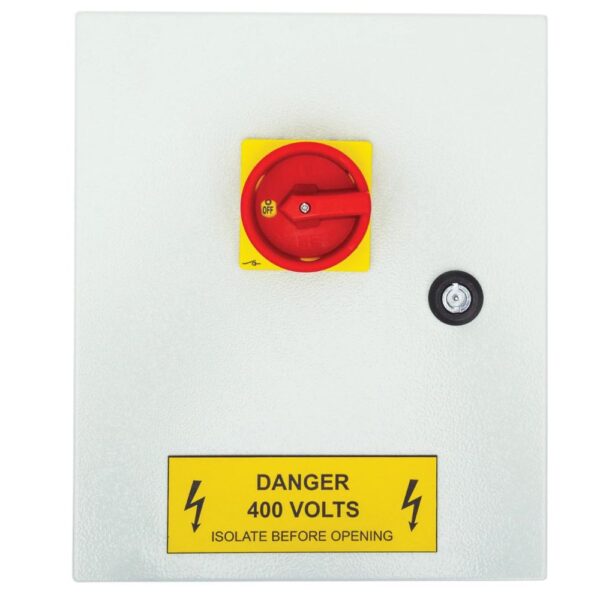

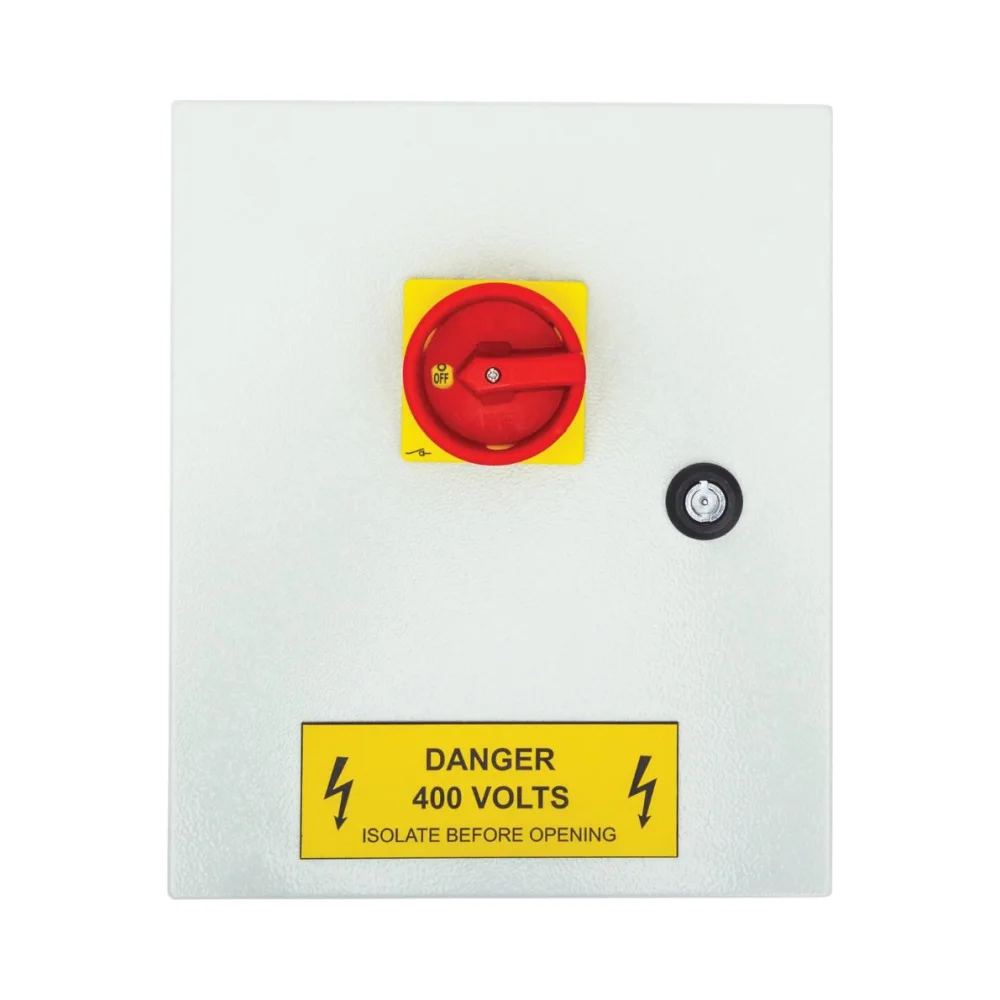

The switch handle is defeatable and features provision for up to three padlocks, enhancing security during maintenance or lockout procedures. With top and bottom gland plates, the enclosure allows secure cable entry, while its IP54 rating ensures protection against dust and water ingress in industrial environments.
Key Features – Niglon MS1003PFS 100A 3 Pole Fused Switch
- 100A heavy-duty fused switch for three-phase power distribution
- Defeatable switch handle with provision for three padlocks for enhanced security
- Accepts 22x58mm cylindrical fuselinks for reliable circuit protection
- Epoxy powder-coated mild steel enclosure for durability and corrosion resistance
- Top and bottom gland plates for secure cable entry
- IP54 protection rating for resistance to dust and water
- Complies with EN60947-1&3, EN60269-1, and EN61439-1 standards
Technical Specifications – Niglon MS1003PFS 100A 3 Pole Fused Switch
- Rated Operational Voltage (Ue): 690V
- Rated Impulse Withstand Voltage (Uimp): 6 kV
- Rated Operational Current (AC-22 A): 100A
- Rated Operational Current (AC-1): 100A
- Rated Operational Power (AC-23 @ 415V): 55 kW
- Rated Operational Power (AC-3 @ 415V): 45 kW
- Rated Fused Short Circuit Current (Icm): 30 kA
- Maximum Fuse Size (gL): 100A
- Terminal Capacity: 2.5 – 35mm²
- Terminal Tightening Torque: 2.5 Nm
- Construction Material: 1.2mm mild steel
- Enclosure Finish: Epoxy powder-coated (RAL 7035)
- Overall Dimensions (H x W x D): 500mm x 300mm x 200mm
- Weight: 12.2kg
Why Choose This Product?
The Niglon MS1003PFS fused switch offers a robust and secure power isolation solution for industrial electrical systems. With a durable mild steel enclosure, lockable handle, and compliance with key safety standards, it provides reliable performance in demanding applications.
