⏱️ Smart Timing with a Multifunction Multi Voltage DIN Rail Timer
Niglon MFTP

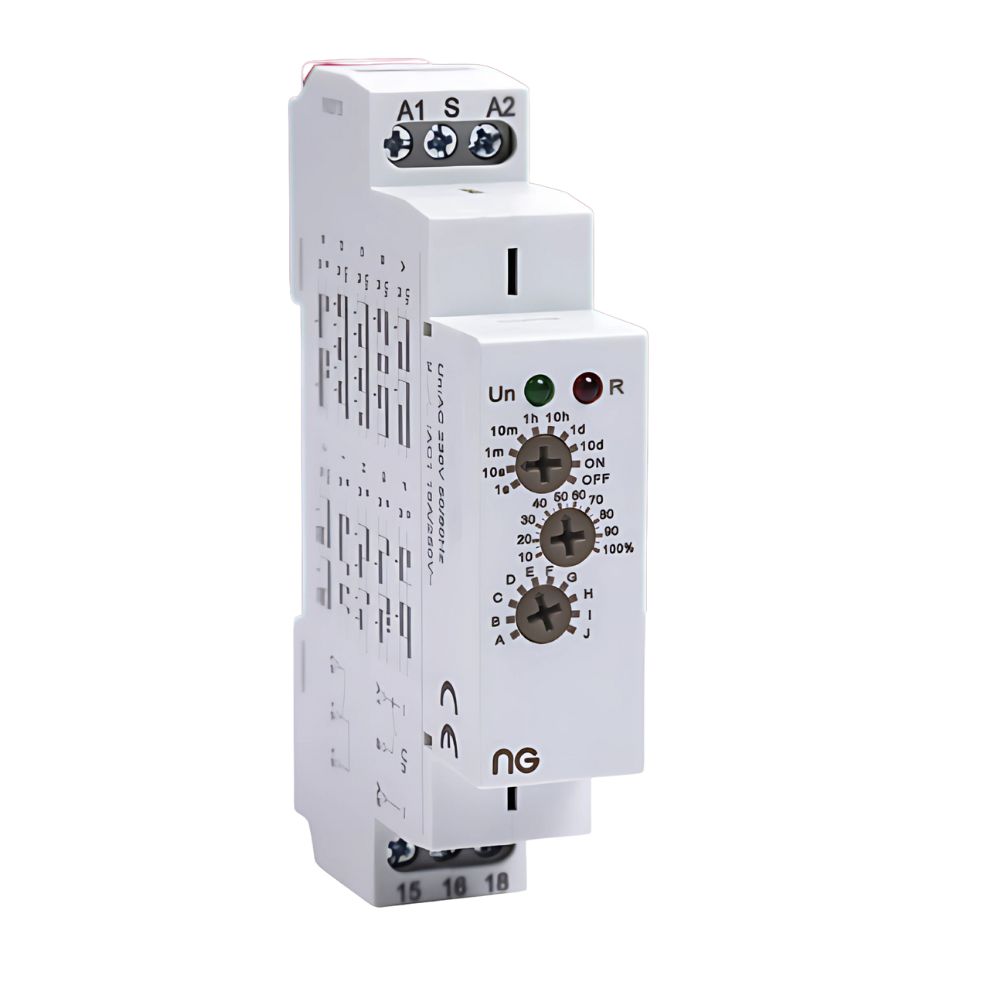

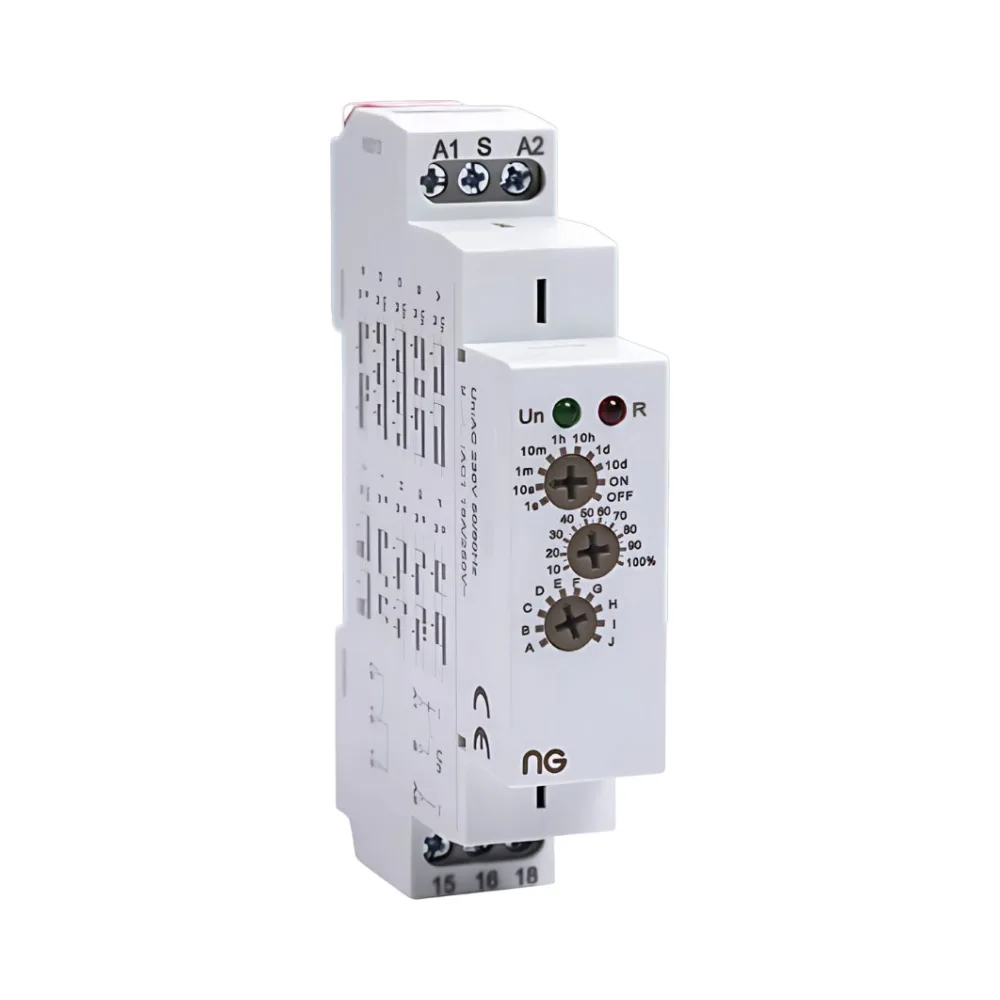

The Niglon MFTP Multifunction Multi Voltage DIN Rail Timer is a premium timing relay designed for flexible control in industrial panels. It supports 10 timer functions, 8 time ranges, and multi-voltage input (12–240V AC/DC), all in a compact 17.5 mm DIN rail enclosure.
This timer is ideal for use in control, automation, and lighting systems where precise timing is essential. It features LED indicators for power and timing, a durable 16A changeover contact, and easy screw clamp terminals.
🔧 Key Features – Multi-Voltage Programmable Timer
- Functions: 10 built-in timing modes
- Time Ranges: 0.1s–10 days (selectable in 8 steps)
- Voltage: 12–240V AC/DC (50/60Hz)
- Contact: 1 × 16A changeover (AgNi)
- Accuracy: ±0.2% of set time
- Reset Time: 200 ms
- Terminals: Screw clamp, up to 2.5 mm²
- Mounting: DIN rail (17.5 mm)
- Standards: EN61812-1, EN60947-5-1
- LED Indicators: Green (power), Red (timing active)
🕒 Timer Functions (Modes A–J) – Multifunction Multi Voltage DIN Rail Timer
- A – On Delay
- B – Interval
- C – Flasher (OFF start)
- D – Flasher (ON start)
- E – Off Delay with Control Contact
- F – Single Shot (Leading Edge)
- G – Single Shot (Trailing Edge)
- H – On/Off Delay
- I – Latching Relay
- J – Pulse Generator (0.5s)
📏 Dimensions – DIN Rail Multi-Function Timer Relay
- Width: 17.5 mm
- Height: 90 mm
- Depth: 64 mm
- Weight: 62 g
🏠 Best For
- Industrial automation panels
- Timed lighting or HVAC control
- Pump and motor delay systems
- Safety and latching circuits
- Repeat-cycle or pulse-based switching
📝 Summary – Timer with Wide Delay Range
The Niglon MFTP Multifunction Multi Voltage DIN Rail Timer is a versatile, high-performance timing relay. It supports a wide voltage range, 10 timer modes, and long operational life. Easy to install and ideal for a wide range of applications.
