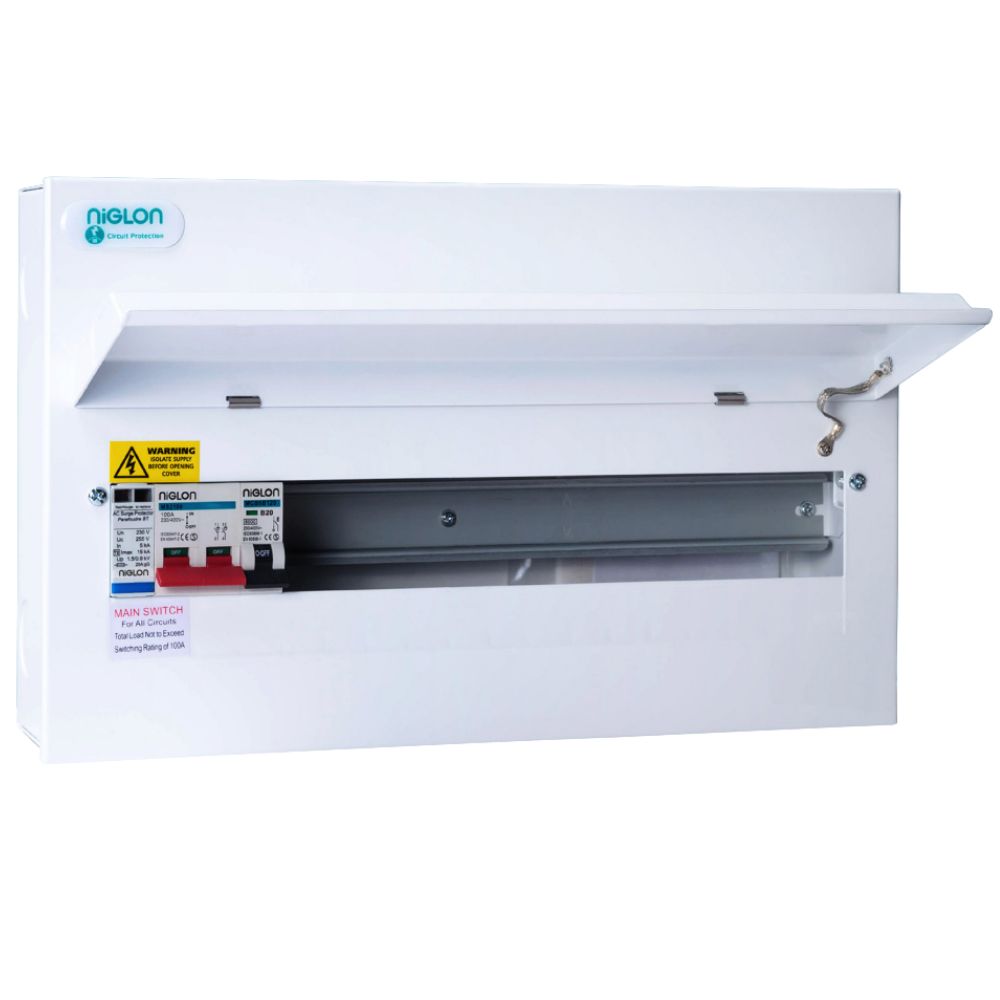

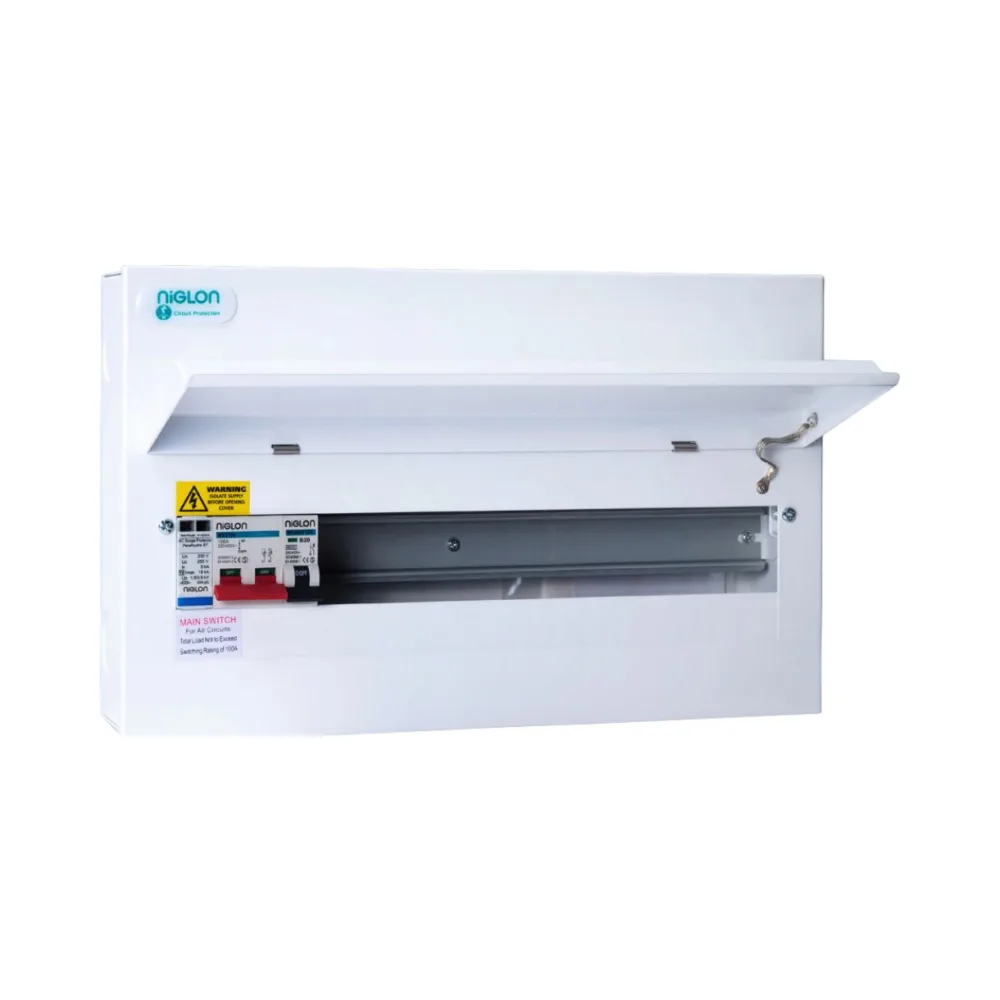

Niglon M3CU18SP 100A DP Main Switch 14 Way SPD Consumer Unit

Description

100A DP Main Switch Type 2 SPD Consumer Unit – 14 Usable Way SPD Consumer Unit

Comprehensive Circuit Protection with Type 2 Surge Protection – Niglon M3CU18SP 14 Way SPD Consumer Unit

Niglon M3CU18SP

The Niglon M3CU18SP 100A DP Main Switch Type 2 SPD Consumer Unit is an 18-module, 14 usable way consumer unit, designed to meet 18th Edition regulations while ensuring reliable circuit protection. Featuring a 100A double pole (DP) main switch isolator and a 15kA Type 2 surge protection device (SPD), this unit protects electrical installations from transient voltage spikes, ensuring compliance with BS7671:2018 and BS EN 61643-11.

With 14 usable ways, this SPD consumer unit is ideal for RCBO setups, allowing for individual circuit protection to improve safety and efficiency. The durable steel powder-coated enclosure (RAL 9010) provides long-term reliability, making it suitable for residential and commercial installations.

Key Features of the Niglon M3CU18SP 14 Way SPD Consumer Unit

• 100A DP Main Switch Isolator – Ensures secure and efficient circuit control
• Integrated 15kA Type 2 SPD – Protects against power surges and transient voltage fluctuations
• 14 Usable Ways – Perfect for RCBO configurations, ensuring full circuit separation
• 18-Module Design – Offers expandability and flexibility for various applications
• Powder-Coated Steel Enclosure – RAL 9010 finish for durability and corrosion resistance
• IP20 Rated – Suitable for indoor installations
• IK05 Impact Rating – Provides resistance against physical damage
• Fully Compliant with 18th Edition Wiring Regulations – Meets BS7671:2018 & BS EN 61439-3 standards

Technical Specifications of the Niglon M3CU18SP

• Model: M3CU18SP
• Consumer Unit Type: SPD Consumer Unit / 18th Edition Consumer Unit
• Main Switch Rating: 100A Double Pole Isolator
• Surge Protection: Type 2 (or 3) 15kA SPD (BS EN 61643-11 compliant)
• Usable Ways: 14 (Ideal for RCBO setup)
• Voltage: 230V AC
• Frequency: 50Hz
• Max Incoming Cable Size: 35mm²
• Impact Protection (IK Rating): IK05
• Ingress Protection (IP Rating): IP20
• Material: Steel (Powder Coated RAL 9010)
• Standards Compliance:
  • BS7671:2018 (18th Edition Compliant)
  • BS EN 61439-3 (Consumer Unit Standard)
  • BS EN 61643-11 (Surge Protection Compliance)
• Certifications: Semko, Kema Keur, CSA, UR, EAC, CE, UKCA, Intertek
• Dimensions:
  • Width: 380mm
  • Height: 230mm
  • Depth: 110mm

Applications

• Residential Electrical Installations – Perfect for modern homes, rewires, and circuit upgrades
• Commercial Properties – Provides safe and reliable power distribution
• Workshops & Outbuildings – Ensures efficient circuit protection for high-demand electrical setups
• Ideal for RCBO Setups – 14 usable ways offer maximum circuit separation

Why Choose the Niglon M3CU18SP Consumer Unit?

• Enhanced Circuit Safety – Integrated 15kA Type 2 surge protection device (SPD)
• Optimised for RCBO Setups – 14 usable ways for individual circuit protection
• 18th Edition Compliant – Meets BS7671:2018 & BS EN 61439-3
• Durable & Compact – Steel powder-coated enclosure for longevity
• Trusted Electrical Brand – Niglon is known for reliable circuit protection solutions

Summary

The Niglon M3CU18SP 100A DP Main Switch Type 2 SPD Consumer Unit is a 14 usable way SPD consumer unit, designed for 18th Edition compliance. Featuring a 100A DP main switch and built-in 15kA surge protection device (SPD), it offers safe and efficient circuit protection, making it ideal for RCBO setups.

With a powder-coated steel enclosure and multiple cable entry points, this high-quality consumer unit is perfect for residential and commercial installations.
