Description

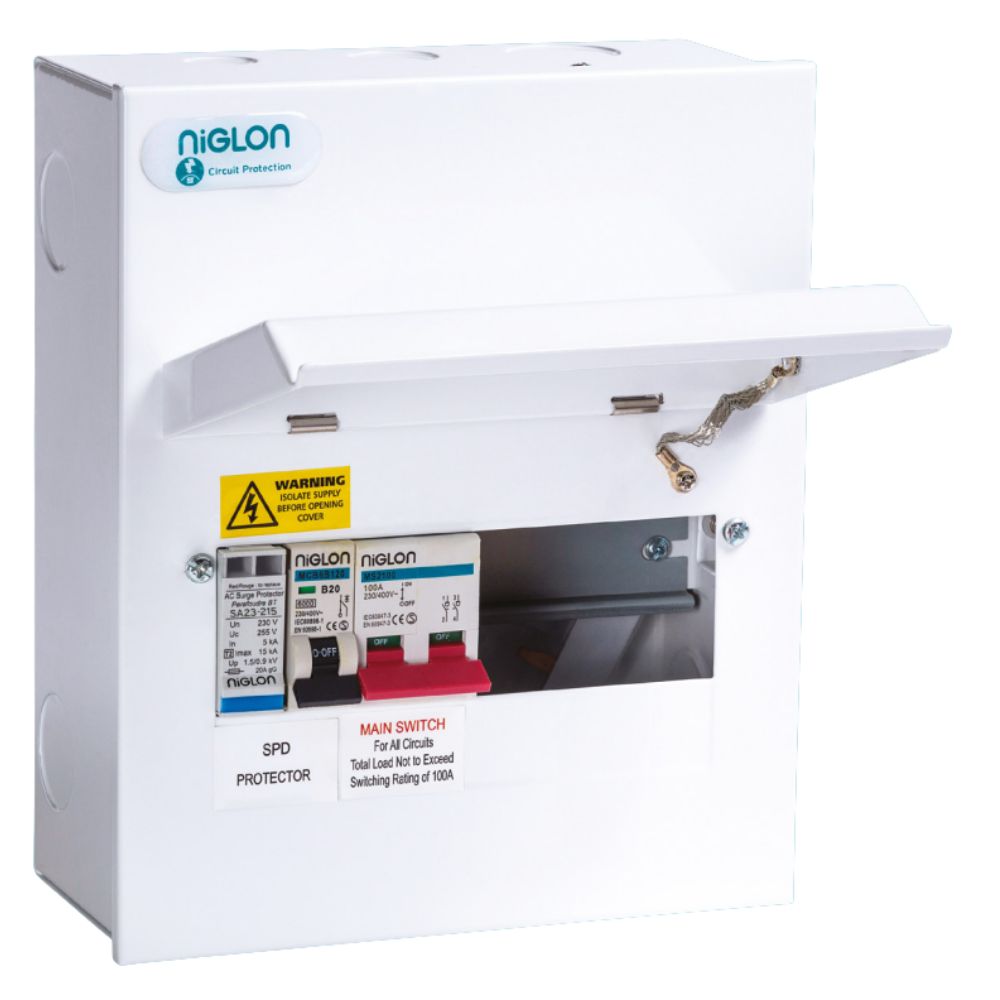

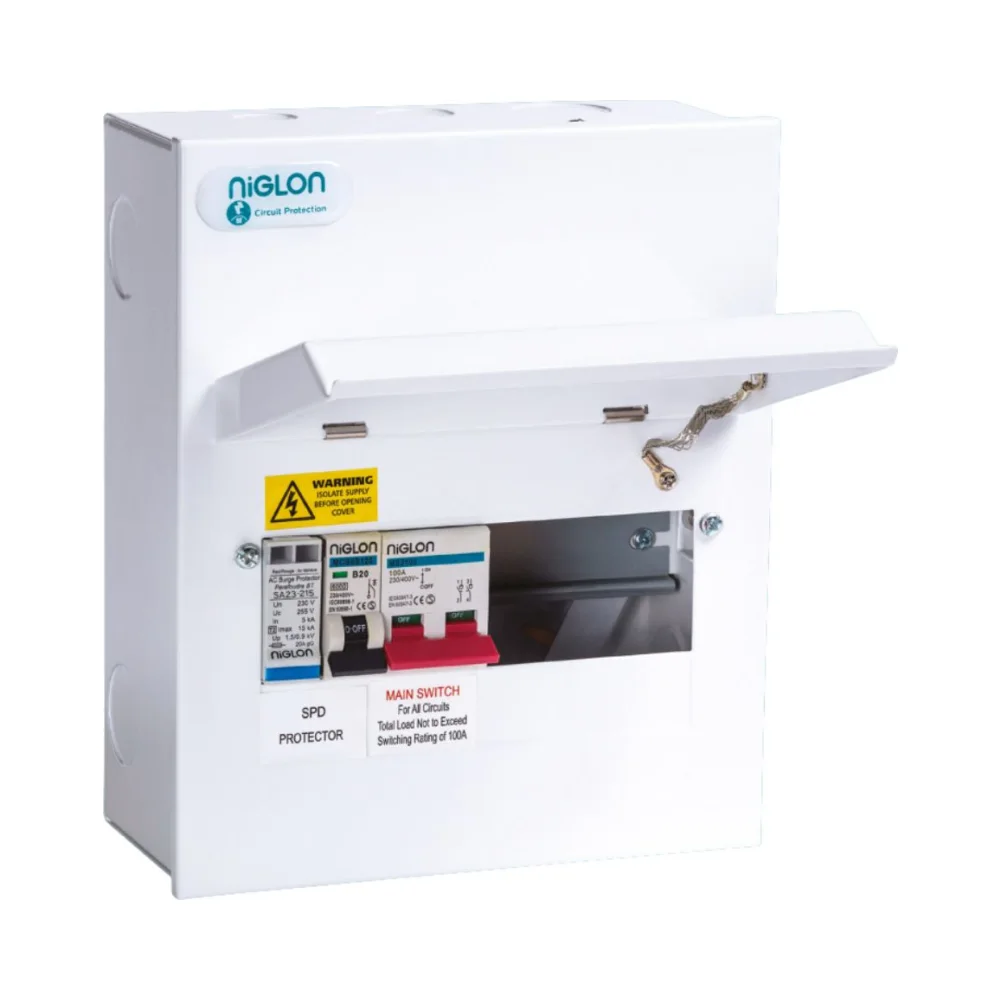

100A DP Main Switch SPD Consumer Unit – 6 Usable Way SPD Consumer Unit
Advanced Circuit Protection with Built-In Surge Protection – Niglon M3CU10SP 6 Way SPD Consumer Unit
Niglon M3CU10SP
The Niglon M3CU10SP 100A DP Main Switch SPD Consumer Unit is a high-quality, 18th Edition-compliant consumer unit, designed for safe and efficient power distribution. Featuring a 100A double pole (DP) main switch and an integrated 15kA Type 2 (or 3) surge protection device (SPD), this unit protects electrical installations from transient overvoltage spikes, ensuring enhanced safety and compliance with BS7671:2018.
With 6 usable ways, this SPD consumer unit is ideal for RCBO setups, allowing for individual circuit protection, making it perfect for residential and commercial installations. Its powder-coated steel enclosure (RAL 9010) ensures durability and long-term performance.
Key Features of the Niglon M3CU10SP
- 100A DP Main Switch Isolator – Provides safe and reliable circuit isolation
- Integrated 15kA Type 2 SPD – Protects against surges and transient overvoltages
- 6 Usable Ways – Ideal for RCBO configurations, allowing for precise circuit protection
- 10-Module Design – Offers expandability and flexibility
- Powder-Coated Steel Enclosure – Ensures robust durability (RAL 9010 finish)
- IP20 Rated – Suitable for indoor installations
- IK05 Impact Rating – Provides resistance against physical damage
- Certified for Safety – Meets BS7671:2018 & BS EN 61439-3 standards
Technical Specifications of the Niglon M3CU10SP 6 Way SPD Consumer Unit
- Model: M3CU10SP
- Consumer Unit Type: SPD Consumer Unit / 18th Edition Consumer Unit
- Main Switch Rating: 100A Double Pole Isolator
- Surge Protection: Type 2 (or 3) 15kA SPD (BS EN 61643-11 compliant)
- Usable Ways: 6 (Ideal for RCBO setup)
- Voltage: 230V AC
- Frequency: 50Hz
- Max Incoming Cable Size: 35mm²
- Impact Protection (IK Rating): IK05
- Ingress Protection (IP Rating): IP20
- Material: Steel (Powder Coated RAL 9010)
- Standards Compliance:
- BS7671:2018 (18th Edition Compliant)
- BS EN 61439-3 (Consumer Unit Standard)
- BS EN 61643-11 (Surge Protection Compliance)
- Certifications: Semko, Kema Keur, CSA, UR, EAC, CE, UKCA, Intertek
- Dimensions:
- Width: 235mm
- Height: 237mm
- Depth: 110mm
Applications
- Residential Electrical Installations – Ideal for home circuit protection with built-in surge protection
- Commercial Properties – Provides safe and efficient power distribution
- Workshops & Outbuildings – Ensures reliable circuit control
- Ideal for RCBO Setups – 6 usable ways allow for individual circuit protection
Why Choose the Niglon M3CU10SP Consumer Unit?
- Integrated Surge Protection – Built-in 15kA SPD for enhanced electrical safety
- Perfect for RCBO Setups – 6 usable ways offer maximum circuit separation
- 18th Edition Compliant – Fully certified to BS7671:2018 & BS EN 61439-3
- Compact & Durable Design – Powder-coated steel construction for longevity
- Trusted Manufacturer – Niglon is renowned for high-quality electrical solutions
Summary
The Niglon M3CU10SP 100A DP Main Switch SPD Consumer Unit is a 6 usable way SPD consumer unit, designed for 18th Edition compliance. Featuring a 100A DP main switch and built-in 15kA surge protection device (SPD), it offers safe and efficient circuit protection, making it ideal for RCBO setups.
With a compact powder-coated steel enclosure and multiple cable entry points, this high-quality consumer unit is perfect for residential and commercial installations.
