Description
Industrial Metal Clad 63A 4 Pole Rotary Isolator Switch

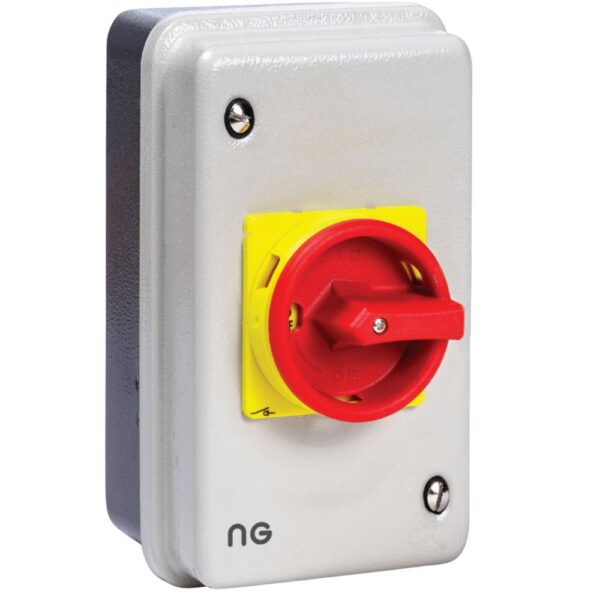

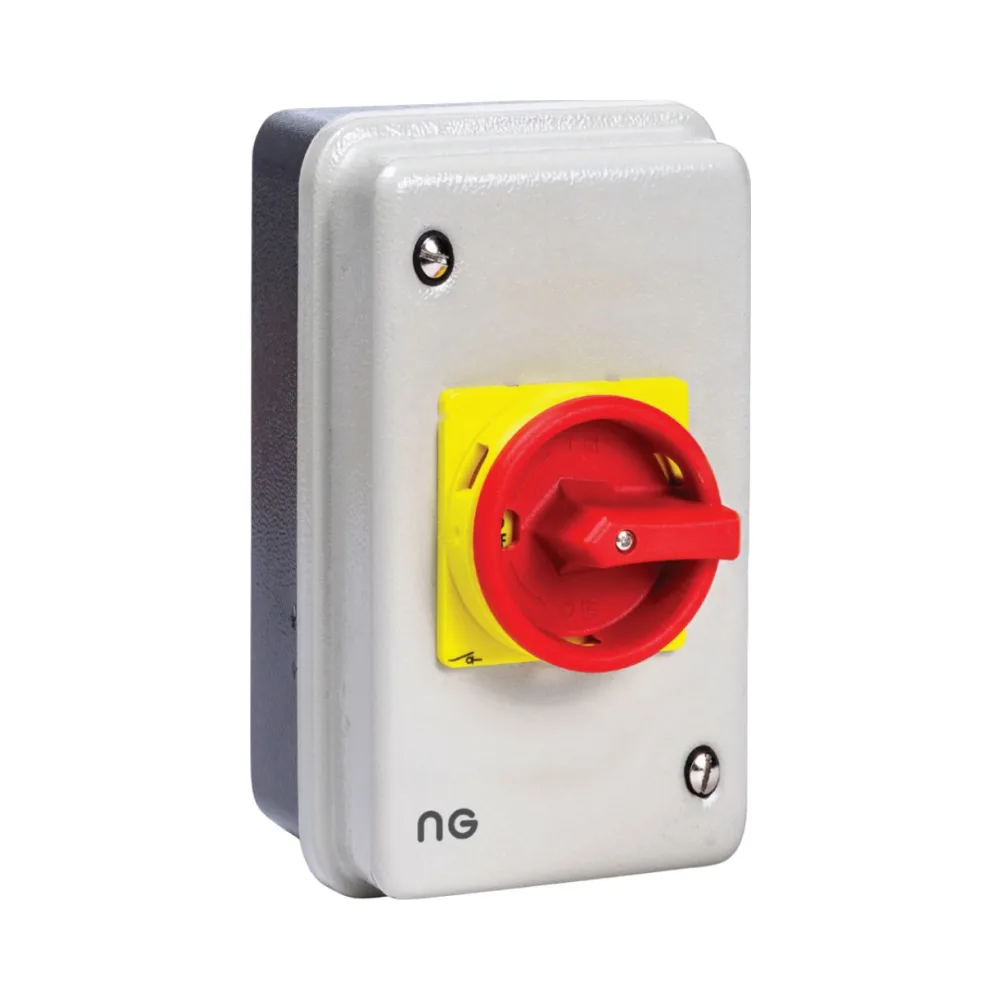

Niglon ISM634P – Heavy-Duty 63A 4P Rotary Isolator
The Niglon ISM634P Metal Clad 63A 4 Pole Isolator is a reliable rotary switch made for tough industrial use. It comes in a strong metal-clad box with an IP54 rating, which protects it from dust and splashes. This isolator is perfect for switching and isolating high-power loads in factories, workshops, and commercial sites.
It meets EN60947-3 standards and handles up to 63A current and 22kW of power at 440V. The four-pole design makes it ideal for three-phase systems with a neutral. With early make contact and a clear ON/OFF rotary switch, it ensures safe, simple control of circuits.
Key Features – Niglon ISM634P Rotary Isolator
- Rated at 63A for high load switching
- Four-pole setup for three-phase and neutral
- Strong metal enclosure with IP54 protection
- Rotary switch with clear ON/OFF markings
- Early make contact improves connection safety
- Handles 22kW motors at 440V
- Tested for short bursts up to 800A
- Accepts cables up to 16mm²
- Surface mount with easy knockout entries
Technical Overview
- Product Code: ISM634P
- Brand: Niglon
- Current Rating: 63 Amps
- Poles: 4 (3 phase + neutral)
- Insulation Voltage: 690V
- Operating Voltage: 440V
- Motor Load Capacity: 22kW
- Short-Time Withstand: 800A
- Wire Size: Up to 16mm²
- Torque Setting: 1.2 Nm
- Enclosure Material: Metal clad (RAL7035 grey)
- IP Rating: IP54
- Size (HxWxD): 220 x 145 x 95mm
- Full Depth (with switch): 130mm
- Standards Met: EN60947-3
What’s Included
- 1x Niglon ISM634P Rotary Isolator
Why Choose This Product?
The Niglon 4 Pole 63A Metal Clad Isolator gives you safe, reliable control in demanding areas. It’s perfect for isolating three-phase machinery, motors, and panels. The metal housing keeps it safe from impact, while the IP54 rating protects it from dust and water. It’s easy to install and built to last.
✅ Guarantee & Compliance
The ISM634P is made to high safety standards and tested to EN60947-3. It offers peace of mind for electricians working on commercial and industrial systems.
Summary
The Niglon ISM634P is a 63A 4 pole rotary isolator in a metal clad enclosure. With IP54 protection, early make contacts, and a compact build, it’s ideal for isolating high-load three-phase systems.
