Description

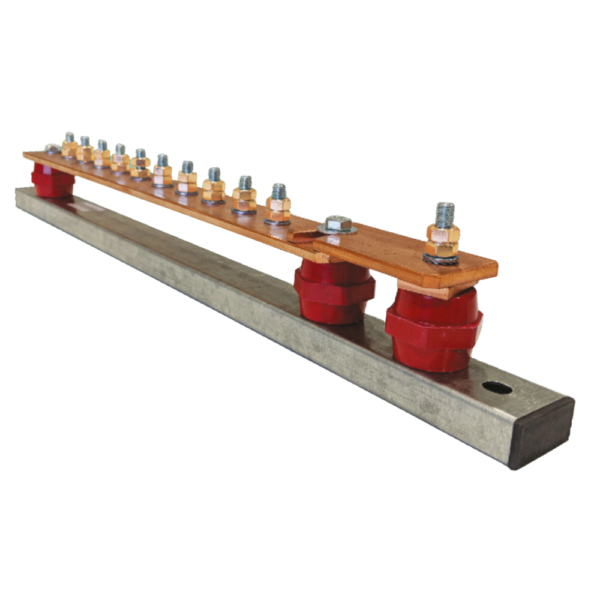

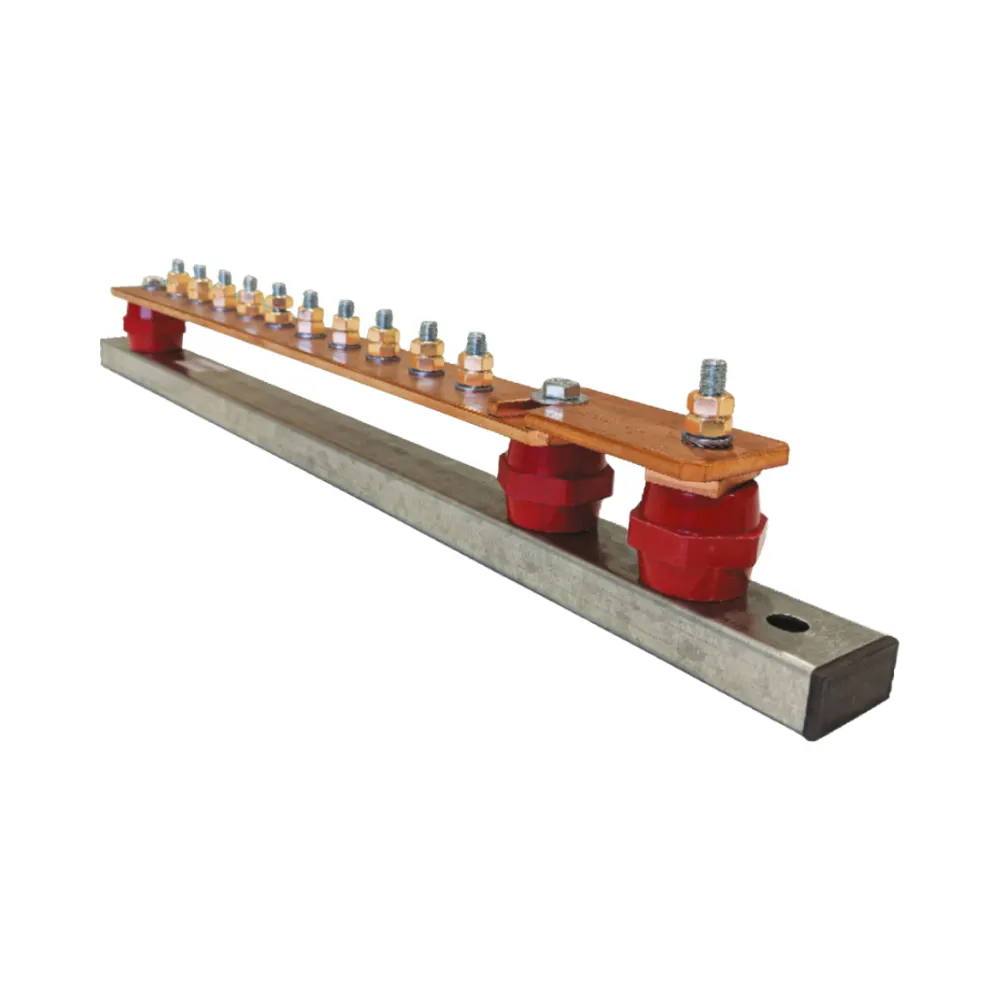

400A 10-Way Earthing Busbar with Link
Niglon EDB10D – Industrial Earthing Solution
The Niglon EDB10D 400A 10-Way Earthing Busbar with Link is a high-performance grounding solution, designed to enhance electrical safety and reliability in industrial and commercial installations. Made from high-quality copper and featuring a powder-coated base, this busbar ensures superior conductivity and long-lasting durability.
The EDB10D busbar includes disconnection links, allowing for easy isolation and maintenance of earthing connections, improving system flexibility and safety compliance. Manufactured to BS6946 standards, this busbar meets strict electrical grounding requirements for secure and efficient operation.
Key Features of the Niglon EDB10D 400A 10-Way Earthing Busbar with Link
- 400A Rated Capacity – Handles high current loads for industrial and commercial grounding applications
- 10-Way Configuration – Allows for multiple earthing connections in a compact design
- Premium Copper Construction – Provides excellent conductivity and corrosion resistance
- Powder-Coated Base – Enhances durability and environmental protection
- Disconnection Links Included – Enables easy isolation and maintenance
- BS6946 Compliance – Meets industry safety and performance standards
Technical Specifications
- Product Code: EDB10D
- Current Rating: 400A
- Number of Ways: 10
- Material: Copper Bar with Powder-Coated Base
- Compliance Standard: BS6946
- Weight: 2.005 lb
- Copper Bar Dimensions: 50mm x 6mm
- Stud Size: M8
- Overall Dimensions (L x W x H): 600mm x 40mm x 100mm
Why Choose This Product?
The Niglon EDB10D Earthing Busbar is a dependable choice for large-scale electrical grounding, offering high current capacity, robust construction, and maintenance-friendly disconnection links. Designed for reliable performance in demanding environments, it ensures safe and efficient power distribution.
