Description
🔧 Heavy-Duty Three-Phase Motor Starter for Industrial Loads

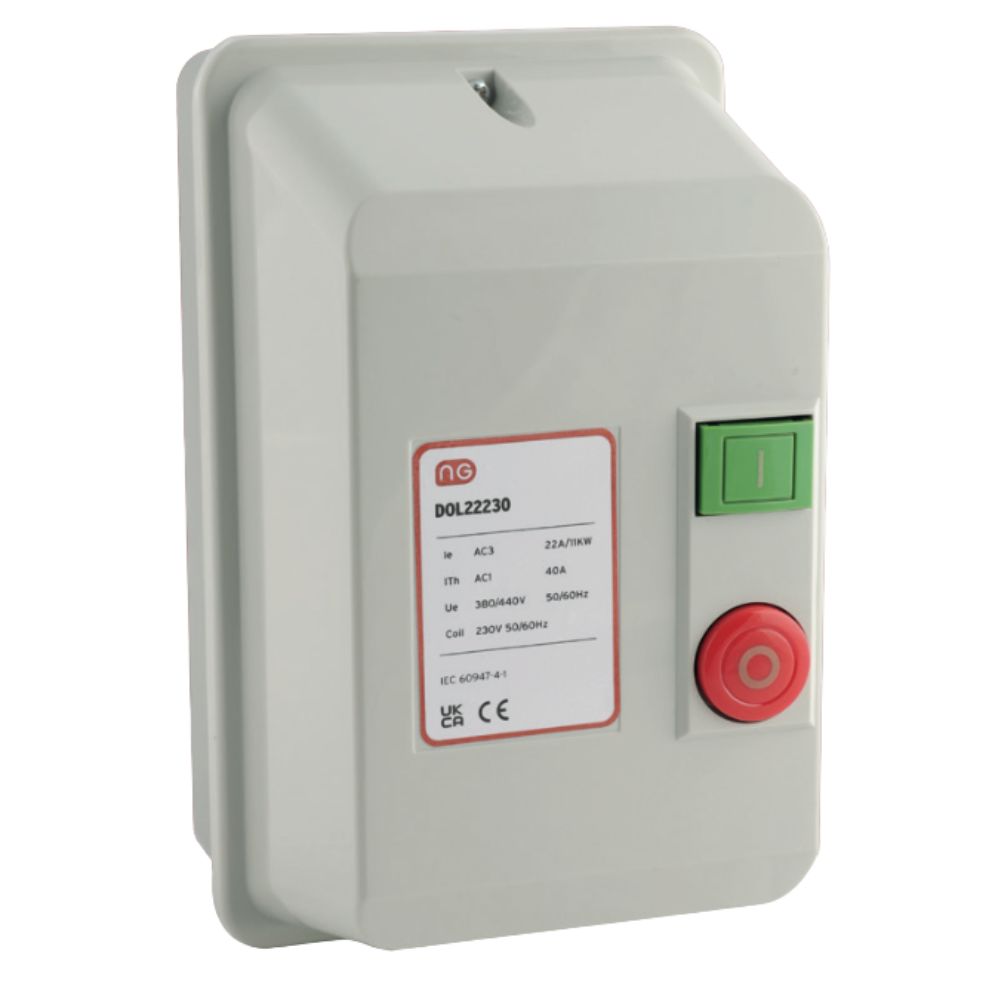

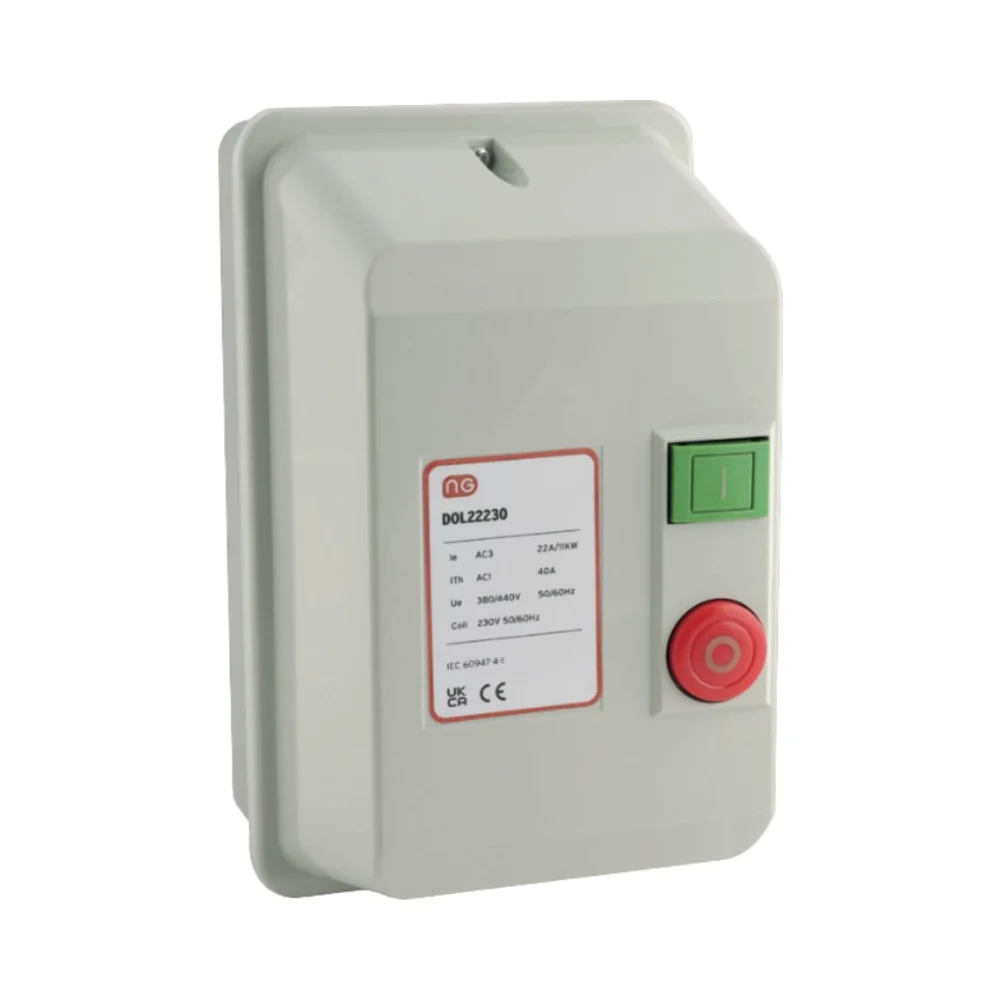

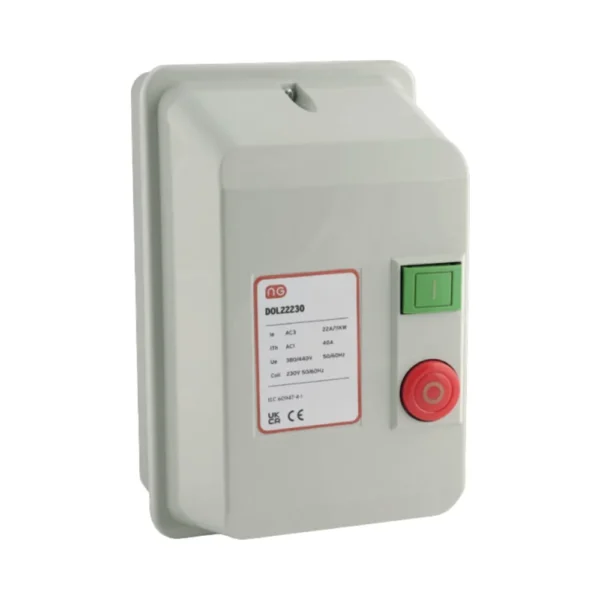

415V 22A 11kW DOL – Niglon DOL22415
The Niglon 415V 22A 11kW DOL is a robust enclosed direct-on-line (DOL) starter rated at 22A 415V and 11kW (AC-3), designed for three-phase motor control. It features factory-wired Start and Stop push buttons in a weather-resistant IP54 enclosure. Ideal for commercial and industrial environments, the DOL22415 offers high switching endurance and fast, safe installation.
Built to IEC 60947-4 and UL-508 standards, it’s perfect for motor-driven HVAC, pumping systems, and workshop machinery.
🔧 Key Features – Niglon DOL22415 DOL Starter
- Rated Voltage: 415V AC
- Rated Current (AC-3): 22A
- Rated Motor Power: 11kW
- Protection: IP54 enclosure
- Contact Configuration: 3 Pole NO
- Mechanical Endurance: 25 million ops
- Electrical Endurance: 2.5 million ops
- Size: 201mm (H) × 118mm (W) × 145mm (D)
- Terminal Capacity: 2.5–10mm²
- Tightening Torque: 4 Nm
- Weight: 1.33kg
🛠 Coil Performance
- Coil Voltage: 415V
- Inrush Current: 95 VA
- Sealed Current: 9 VA
- Pull-In Voltage: 80–110%
- Thermal Dissipation: 2W
- Closing Time: 10–17 ms
📦 What’s in the Box – DOL Enclosed Direct On Line Starter
- 1 × Niglon DOL22415 DOL Starter
- Prewired Start/Stop buttons
- IP54 wall-mountable housing
- Installation guide
🏗 Best For
- Three-phase HVAC units
- Pumps and compressors
- Industrial conveyor systems
- 9kW motor installations in factories and workshops
🔗 Related Products – 415V 22A 11kW DOL
- Lower power? Try: Niglon DOL12415 415V 12A 5.5kW DOL Starter
- Need a 230V version? See: Niglon DOL22230 230V 22A 9kW DOL Starter
- Need 230V/12A version? View: Niglon DOL12230 230V 12A 5.5kW DOL Starter
✅ Compatible with ORSC thermal overload relays (0.1–22A). Select model to match your motor’s full load current.
📝 Summary – 415V 22A DOL Starter
The Niglon DOL22415 is a high-capacity 415V direct-on-line motor starter. Rated for 22A and 9kW, it’s prewired and built for heavy-duty commercial and industrial use.
