Description
High-Capacity Motor Control in a Durable Enclosure

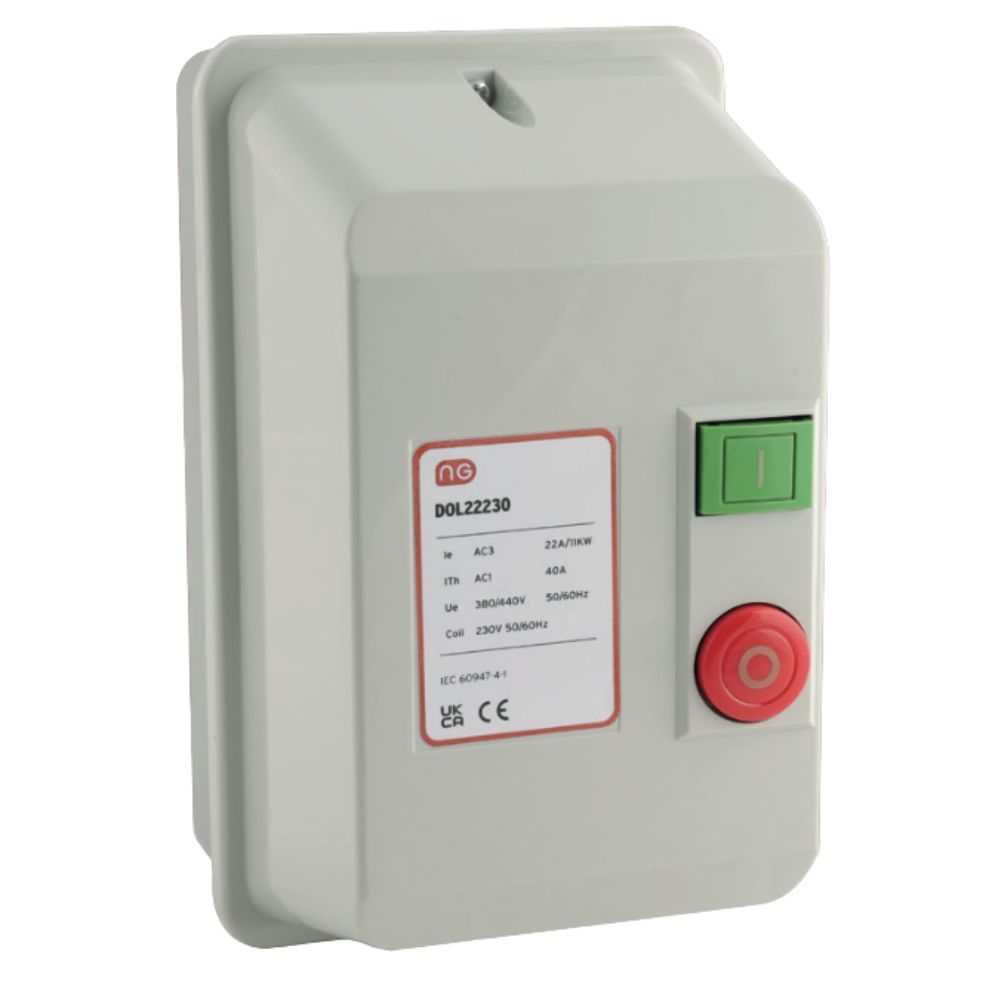

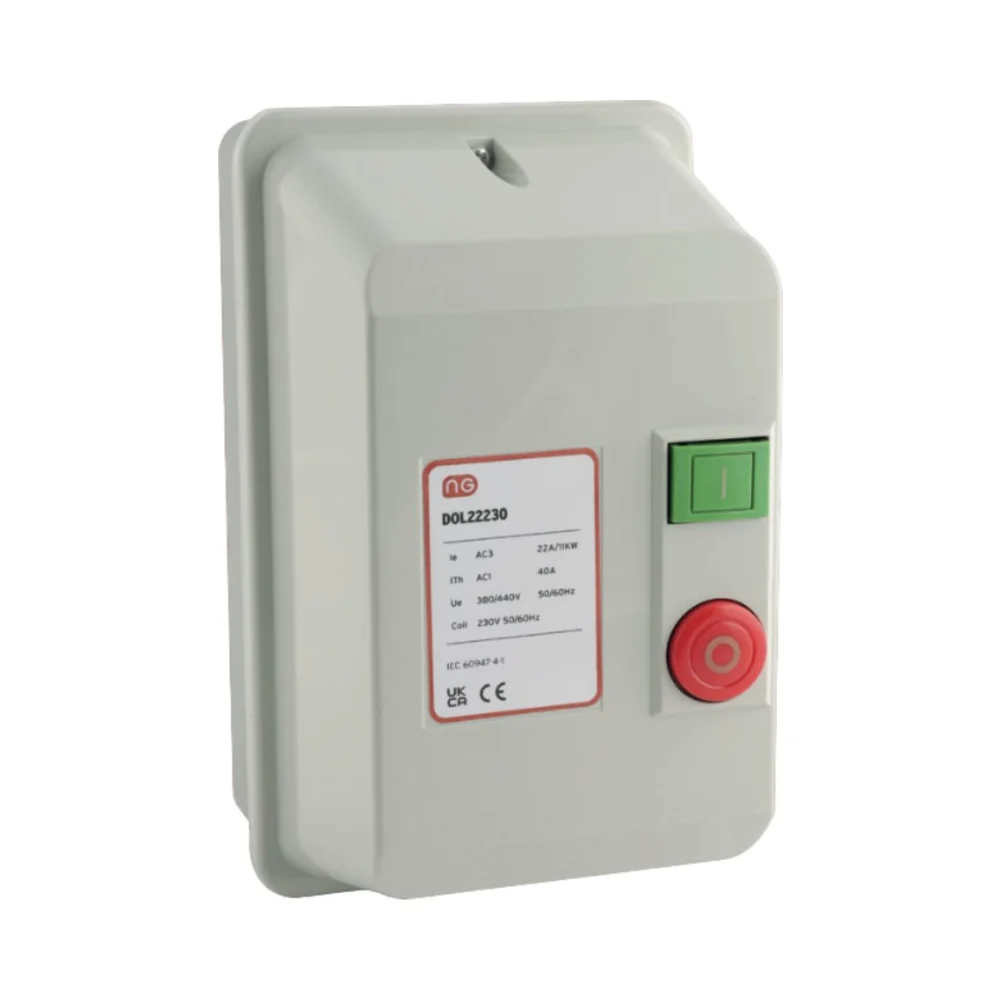

230V 22A 9kW DOL – Niglon DOL22230
The Niglon 230V 22A 9kW DOL is a powerful enclosed direct-on-line starter, rated at 22A and 9kW, and designed for 230V AC motor applications. With an IP54-rated enclosure and prewired Start/Stop buttons, this unit ensures simple setup and safe operation. It’s ideal for high-demand systems requiring robust and long-life switching, like pumps, fans, or heavy-duty HVAC.
Built to IEC 60947-4 and UL-508 standards, the DOL22230 offers top-tier mechanical (25M) and electrical (2.5M) endurance.
Key Features – Niglon DOL22230 DOL Starter
- Rated Voltage: 230V AC
- Rated Current: 22A
- Rated Motor Power: 9kW
- IP Rating: IP54 (weather and dust-resistant)
- Enclosure Size: 201mm (H) × 118mm (W) × 145mm (D)
- Prewired Start/Stop push buttons
- Contactor: 3 Pole Normally Open (NO)
- Standards: IEC 60947-4, UL-508
- Mechanical Life: 25 million operations
- Electrical Life: 2.5 million operations
- Terminal Capacity: 2.5–10mm²
- Weight: 1.33kg
⚡ Coil & Control Specs – 230V 22A 9kW DOL
- Coil Voltage: 230V
- Inrush Current: 95 VA
- Sealed Current: 9 VA
- Pull-In Voltage Range: 80–110%
- Thermal Dissipation: 2W
- Closing Time: 10–17 ms
What’s in the Box
- 1 × Niglon DOL22230 230V DOL Starter
- Factory-fitted Start and Stop buttons
- IP54 enclosure (wall-mountable)
- Installation instructions
Best For
- Large HVAC systems
- Commercial pump setups
- Industrial motor control (up to 9kW)
- Heavy-duty workshop applications
Related Products
- Need a 12A version? See: Niglon DOL12230 230V 12A 5.5kW DOL Starter
- Need 22A at 415V? Try: Niglon DOL22415 415V 22A 11kW DOL Starter
- Working with 415V 5.5kW motors? View: Niglon DOL12415 415V 12A 5.5kW DOL Starter
✅ Thermal overload relays from 0.1A to 22A available separately. Match ORSC relay to motor specs.
Summary – 230V 22A 9kW DOL Starter
The Niglon DOL22230 is a 230V enclosed DOL starter rated at 22A and 9kW. IP54 protected, with prewired controls, it’s built for high-load motor applications in commercial and industrial setups.
