Three-Phase Motor Starting Made Simple

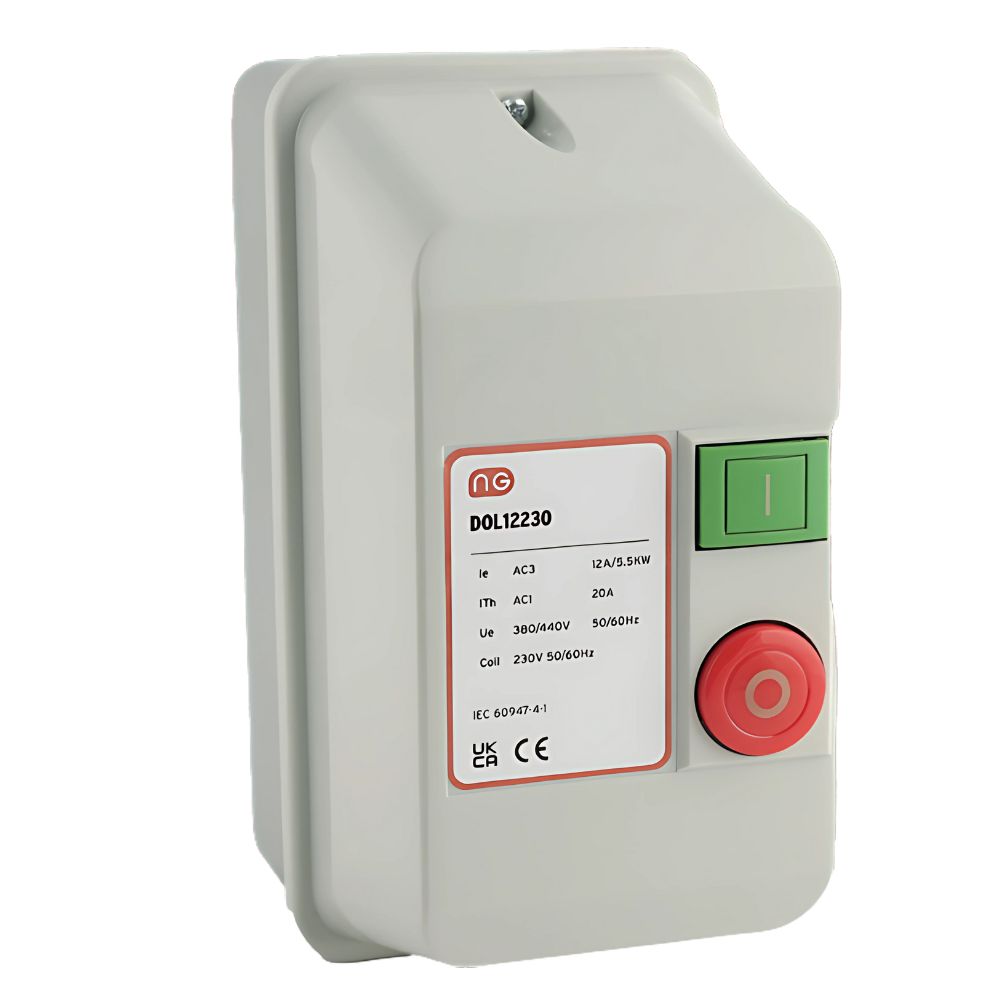

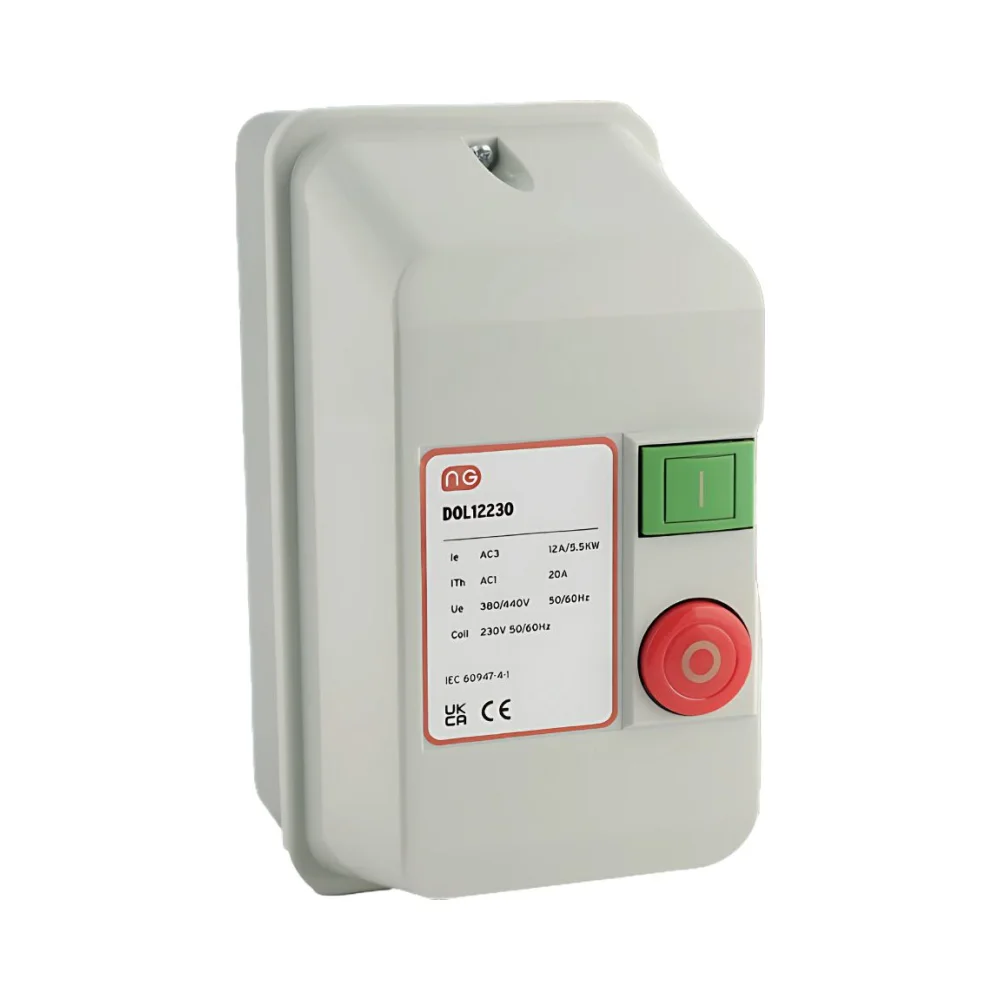

Enclosed Direct On Line Starter – 415V 12A 5.5kW
The Niglon 415V 12A 5.5kW DOL is an enclosed direct-on-line starter, rated for 415V 12A and 5.5kW. Designed for three-phase motors, it features an IP54-rated housing with factory-wired Start and Stop buttons, reducing installation time. Built to IEC 60947-4 and UL-508 standards, it delivers reliable motor protection with high mechanical and electrical endurance.
This model is ideal for HVAC systems, pumps, and industrial motor control panels where fast and safe switching is needed.
Key Features – Niglon DOL12415 DOL Starter
- Rated Voltage: 415V AC
- Rated Current: 12A
- Rated Motor Power: 5.5kW
- Protection: IP54-rated enclosure
- Size: 175mm (H) × 90mm (W) × 126mm (D)
- Control Buttons: Prewired Start and Stop
- Mechanical Life: 12 million operations
- Electrical Life: 1 million operations
- Aux Contact (AC1): 16A
- Standards: IEC 60947-4, UL-508
- Terminal Capacity: up to 2.5mm²
- Weight: 1.16kg
Coil & Performance Specs – 415V 12A 5.5kW DOL
- Coil Voltage: 415V
- Inrush: 32 VA
- Sealed: 6 VA
- Consumption: 2W
- Pull-In Voltage: 80–110%
- Drop-Out Voltage: 30–40%
- Closing Time: 10–20 ms
What’s in the Box
- 1 × Niglon DOL12415 415V DOL Starter
- Integrated Start and Stop buttons
- IP54 wall-mountable enclosure
- Instruction leaflet
Best For
- Three-phase HVAC systems
- Industrial pumps and conveyors
- Workshop equipment (5.5kW motors)
- Reliable DOL motor control
Related Products – 415V 12A 5.5kW DOL
- Need a 230V version? See: Niglon DOL12230 230V 12A 5.5kW DOL Starter
- Need 22A 9kW at 230V? Try: Niglon DOL22230 230V 22A 9kW DOL Starter
- Need 415V 22A? View: Niglon DOL22415 415V 22A 9kW DOL Starter
✅ Pair with a Niglon ORMC thermal overload relay (sold separately) for added protection.
Summary – 415V 12A 5.5kW DOL Starter
The Niglon DOL12415 is a 415V enclosed motor starter for 12A/5.5kW three-phase motors. Prewired, compact, and IP54-rated, it’s ideal for fast installs in commercial and industrial setups.
